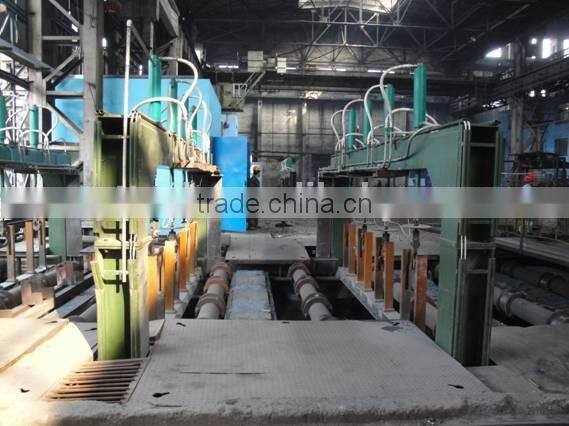

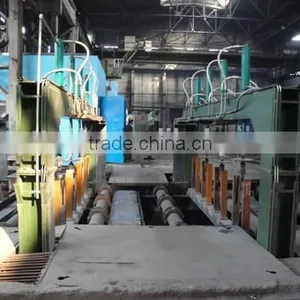

Continuous Casting Billet Online Weighing and Cut to Length System
System Overview
In the continuous casting process, as mold wear, steel pressure, casting speed, density, weight changes and other factors, the same strand at different times of casting, casting slab the same length the weight is different, and there is a big differences sometimes. In order to reduce waste, improve the rate of finished product, receive the maximum economic benefits, on the basis of cut to length to do constant weight cutting control.
Equipment type:ZYT-CZDC-V
The purpose of cutting fixed weight
Intelligent automatic weighing and Cut to length system is based on the Cut to length control system, automatic adjust the length of the slab by weight, achieve the purpose of improving the accuracy of the slab weight and control product quality.
Billet online weighing technology features
Adapt to about 800 ℃ high temperature radiation, also can adapt the impact of heat conduction and the water vapor.
Can eliminate the impact of sensor‘s mechanical stability and repeatability which due to dynamic lifting of balance frame.
The synchronization problem of before and behind lifting mechanism.
Type of weighing system
The overall roller weighing
Roller lifting type weighing
Hanging frame lifting weighing
System parameter
Sensor accuracy: more than 3 level trading standards
Fixed weight accuracy: ± 2 KG (120mm × 120mm cross-section)
Hydraulic station set
Utilizing the user former equipment or an independent hydraulic system or using the electric hydraulic cylinders synchronization.
