Cut to length system in steel plant

Name: Cut to length system in steel plant
Brand: AIGER
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Tianjin&Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Beijing, China

Brand Name:

AIGER

Model Number:

ZYT-ZPQG-III

Product Description

Specifications

1.Advanced technology of picture processor (non-contact)
2.Online printing data
3.Atomatic control

Cut to length system in steel plant

Working principle

Cut to length system uses dynamic image recognition technology, detects and displays the operation status of hot billet online. Through the camera next to roller collect images into computer, through acceleration module for analog video signal processing and A/D conversion into digital signal. The characteristics of image acquisition to achieve real-time, video input, stereo vision image sequence analysis, moving image display, camera synchronous switching, image processing and video signal synchronization, completely real time transmission and processing effect, meet the technical requirements of the complex. Automatic control device cuts equipment and issues a instructions: pre clamping clampingcutting control signal and so on.

Technical parameters and specifications

1.Casting machine flow number 5 strands

2.Casting billet cutting temperature ≥600°C

3.Length range 7m-9m

4.Casting blank section 200mm*200mm

5. Roller strand space 1250m

6.Casting speed 0.8-1.2m/m

Case of Cut to length system installation

Signal output method:

Signal is electric relay switch, each strand has a cut signal, amount to 5 signals. The system presets clamping signal, and it can be used according to the scene.

Working environment:

(1) System and the camera normal working temperature: ≤ 70 °C.

(2) Medium energy: ~ 220V power supply.

(3) Typical camera installation requirements: monitoring the scope of the camera is no obstacle

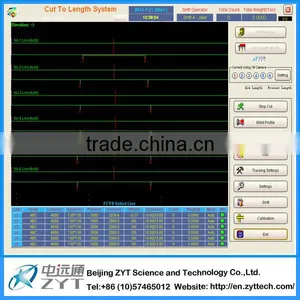

Software interface

The camera installation position

Cutting effect
