Specifications
1,Voltage: Three-phase 380V/50HZ2,Air pressure: filtered air or nitrogen less or equal to 0.6Mpa
3,Equipment Size: According
Equipment overview

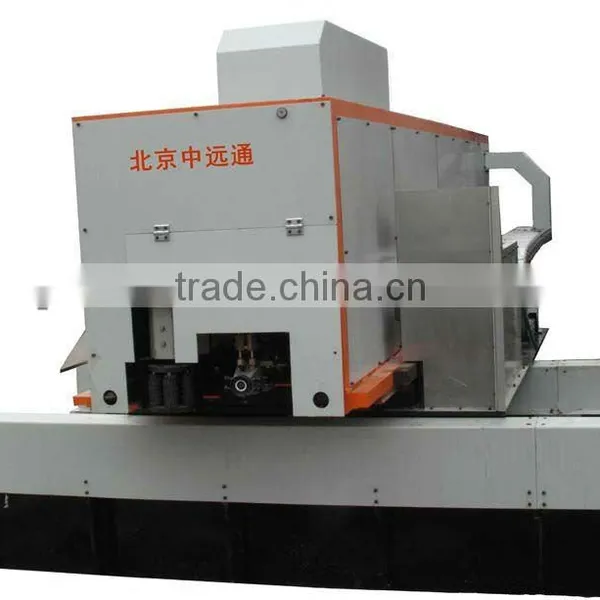

ZYT Casting blank marking machine is the use of the impact of the cylinder, identifies the data code in the end or side of the hot slab , the performance is stable and reliable.
Equipment composition
Constituted by the seven components: body mechanical systems, running gear, sliding bodies, elevator, marking electronic control gas agencies and regulators, software, operating control
Equipment type
ZYT-DHJ-S200-D / L D-floor type; L-door beam
System parameter
- Voltage: Three-phase 380V/50HZ
- Air pressure: filtered air or nitrogen ≤ 0.6Mpa
- Equipment Size: According to the site
- Billet temperature: ≥ 400 °C
- Billet section: flatness tolerance <0.5mm, section slope <1 °
- Height adjustment: according to the actual needs of design (gate beam)
- Content characters: the digits 0 to 9, letters
- Character height: 8 ~ 25mm (optional)
- Print speed: 1.2 ~ 1.5s / characters
10. Impact frequency: 40 ~ 50 times / min
11. Sliding speed: <0.3s / characters
12. Servo drive: with a high temperature resistant, low speed, high torque motor
13. Turntable speed: <0.3s / characters
14. Sliding accuracy: error <0.5mm
15. Landing accuracy: error <1mm
16. Print Depth: 1 ~ 3mm
17. Communication: standard industrial Ethernet, CANopen and PROFIBUS variety of communication
18. Gas consumption: ≤ 100N m3 / h
19. Modes of operation: computer / remote / manual operation. switch , operation control system can easily Connection with Level 2 system of users.
20. P L C: SIMENS S7 ~ 300 type
21. Distance from prefix to the billet end: 75mm ~ 100mm

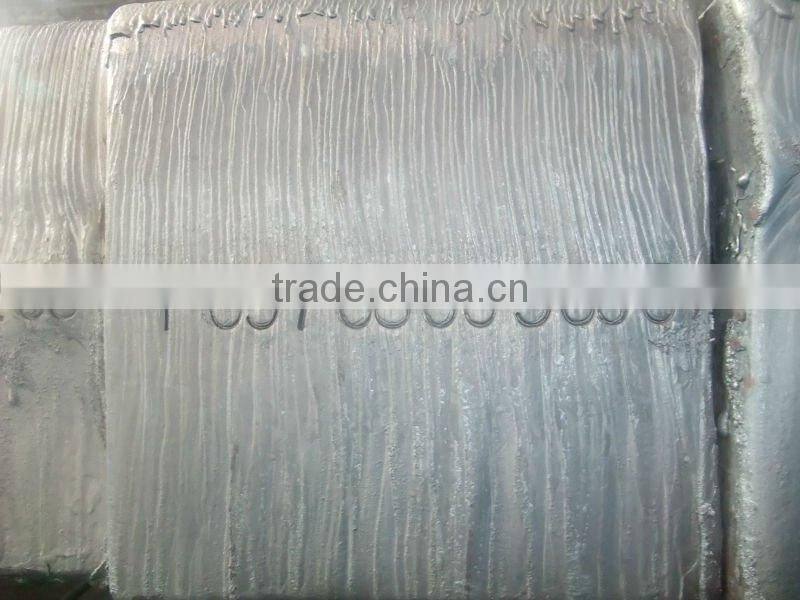

Marking effect chart
