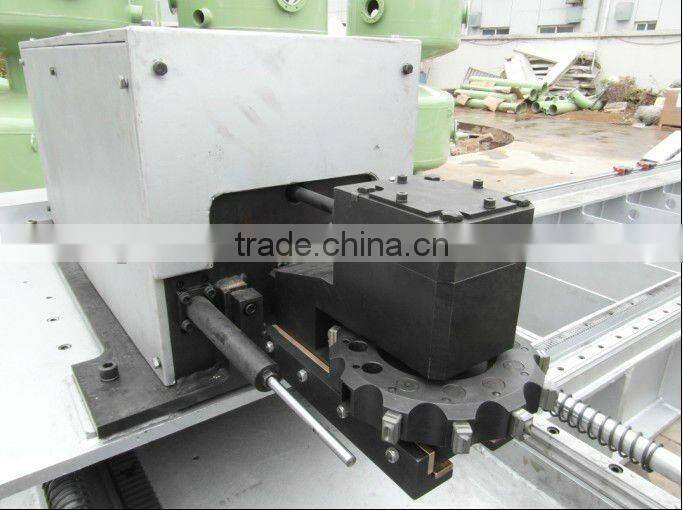

Help CenterAutomatic Casting Billet Marking Machine
Related Products
-
Casting Billet Arc Spray MachineNegotiableMOQ: 1 Strand -
Square, Round, Rectangular Billet Marking MachineNegotiableMOQ: 1 Set
-
Marking Machine for Metal PartsNegotiableMOQ: 1 Set
-
Converter Sound Frequency Slag SystemNegotiableMOQ: 1 Strand
-
Three Strands Continuous Casting Non-contact Automatic Length Cutting SystemNegotiableMOQ: 1 Piece
Specifications
1.Voltage: Three-phase 380V/50HZ2.Air pressure: filtered air or nitrogen less or equal to 0.6Mpa
3.Equipment Size: According
Equipment overview

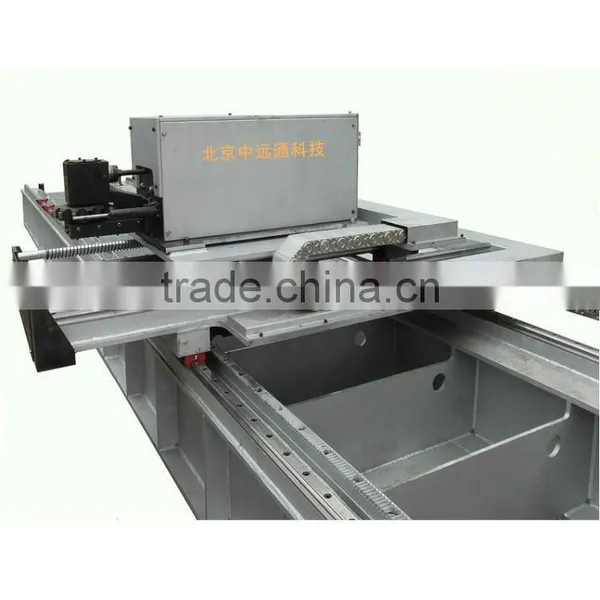

ZYT Automatic casting billet marking machine is the use of the impact of the cylinder, identifies the data code in the end or side of the hot slab , the performance is stable and reliable.
Equipment composition
Constituted by the seven components: body mechanical systems, running gear, sliding bodies, elevator, marking electronic control gas agencies and regulators, software, operating control.
Equipment type
ZYT-DHJ-S200-D / L D-floor type; L-door beam
System parameter
- Voltage: Three-phase 380V/50HZ
- Air pressure: filtered air or nitrogen ≤ 0.6Mpa
- Equipment Size: According to the site
- Billet temperature: ≥ 400 °C
- Billet section: flatness tolerance <0.5mm, section slope <1 °
- Height adjustment: according to the actual needs of design (gate beam)
- Content characters: the digits 0 to 9, letters
- Character height: 8 ~ 25mm (optional)
- Print speed: 1.2 ~ 1.5s / characters
10. Impact frequency: 40 ~ 50 times / min
11. Sliding speed: <0.3s / characters
12. Servo drive: with a high temperature resistant, low speed, high torque motor
13. Turntable speed: <0.3s / characters
14. Sliding accuracy: error <0.5mm
15. Landing accuracy: error <1mm
16. Print Depth: 1 ~ 3mm
17. Communication: standard industrial Ethernet, CANopen and PROFIBUS variety of communication
18. Gas consumption: ≤ 100N m3 / h
19. Modes of operation: computer / remote / manual operation. switch , operation control system can easily Connection with Level 2 system of users.
20. P L C: SIMENS S7 ~ 300 type
21. Distance from prefix to the billet end: 75mm ~ 100mm
Marking effect chart
