BCF YARN PRODUCTION MACHINERY, EXTRUDER LINE FOR BCF YARN

BCF YARN PRODUCTION MACHINERY, EXTRUDER LINE FOR BCF YARN thumbnail-1
BCF YARN PRODUCTION MACHINERY, EXTRUDER LINE FOR BCF YARN thumbnail-2
BCF YARN PRODUCTION MACHINERY, EXTRUDER LINE FOR BCF YARN thumbnail-3
BCF YARN PRODUCTION MACHINERY, EXTRUDER LINE FOR BCF YARN thumbnail-4
BCF YARN PRODUCTION MACHINERY, EXTRUDER LINE FOR BCF YARN thumbnail-5
BCF YARN PRODUCTION MACHINERY, EXTRUDER LINE FOR BCF YARN photo-1
BCF YARN PRODUCTION MACHINERY, EXTRUDER LINE FOR BCF YARN photo-2
BCF YARN PRODUCTION MACHINERY, EXTRUDER LINE FOR BCF YARN photo-3
BCF YARN PRODUCTION MACHINERY, EXTRUDER LINE FOR BCF YARN photo-4
BCF YARN PRODUCTION MACHINERY, EXTRUDER LINE FOR BCF YARN photo-5
US$ 100,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, BCF Yarn Machine
Plastic Processed:
Other, PP, PET
Contact Supplier Request Quote Chat Now
Cissco Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Other, BCF Yarn Machine
Plastic Processed Other, PP, PET
Screw Design Single-screw
Automatic Grade Fully Automatic
Place of Origin Shanghai, China
Brand Name EXTRUDER LINE FOR BCF YARN
Model Number EXTRUDER LINE FOR BCF YARN
Voltage 380V 50HZ
Power(W) 75KW
Dimension(L*W*H) 5*5*13m
Weight 10T
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

EXTRUDER MACHINE FOR BCF YARN

Product Description

1.1:Machine Model and Name
 PET BCF machine.
1.2:range of applications:
Used for producing PET-BCF by processing of extruding, melting, spinning and drawing ,consisted of spinning machine ,drawed-winder

1.2.1:process:
     Chips→ extruder→extruding head→melt pipe with static mixer→ spinning beam with oil heating →quenching delay→ quenching chamber → oiling system  → feeding roller →migration nozzle→  2 pairs of hot godet →textile jet→cooling pan→interlacing jets→ take-up winder →  final product

1.2.2:air-conditioning
         quenching chamber:air temperature 18---20℃
         air  pressure:              400-1000Pa±5Pa adjustable
         relative humidity :       60-85%±2%
         air conditioner temperature :temperature 25~28℃±0.5℃
         temperature of electrical control shop:emperature 22℃±2℃
         consumption of compressed air: 10Nm3/min(1.2MPa)
1.2.3: products reference and capacity
    reference :

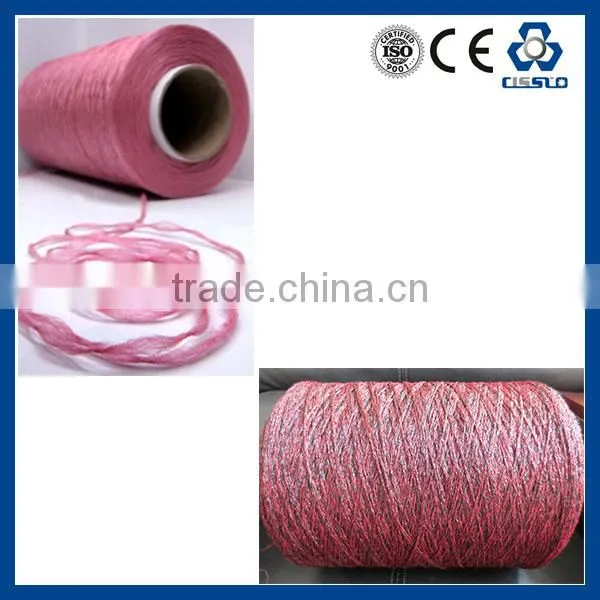

     denier range:                       1200-1400D/BCF YARN

  capacity:
      capacity calculated by following references:
      No. of spinning position:   4 /pos.
      ends of spinning :          2ends /pos
      annual workdays:          330days
      efficiency:                       0.93%
   1200-1400de:(1200-1400)×1500×4×2×1440 ×0.93    =2.14-2.50ton /per day

9000×1000×1000
1.2.4:main technological parameter :
      finished denier          1200-3000D

      No of pos                    4 pos
     spinning speed :       1500-1800m/min
      process speed :       1500---1800m/min
      ends each gauge :    2ends /pos
1.2.5: some main technical specification :
      mode of extruder :   horizontal
     specification of extruder:105   L/D=25
     controlling mode :             AC inverter
      mode of spin beam:        one-side
      No of beams :                   4pcs/ per line
      No of pos.:                          pos./beam
      No of ends:                        2ends/pos
      mounting distance:                1500mm
    specification of meter pump: 2×10cc/rev
      No of pump:           2pcs/pos
      No of transmission device for meter pump :2pcs/pos
      mode of spin packs:             cylinder shape top-mounted
      No of spinneret :                     1 pcs/spin packs
      size of spinneret :                 140mm
      mode of quenching chamber:  crossing blow
      winder mode :              SWBA600
      hot godet mode :        180X260mm

1.3 parameters of drawn winder equipment

No. Name

Quantity

Note

1.

3000 Take up frame

1set

S





Height: 2200mm





Width: 1200-1400

2.

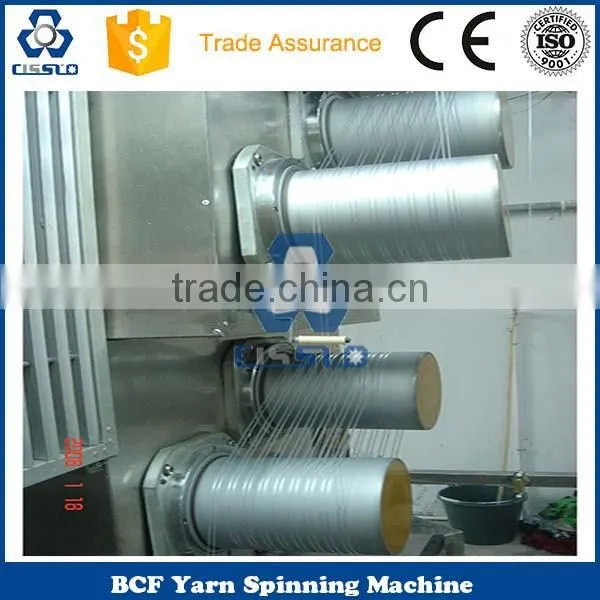

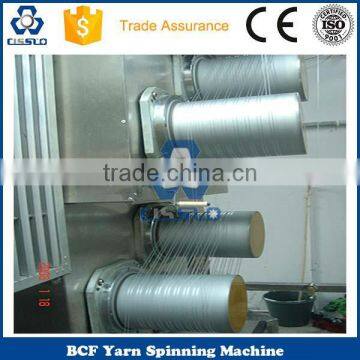

3001 hot godet

3sets

S





φ 190*350mm







Temperature range: 0-190℃





Motor power:2.2KW





Heating power:4.5KW





Max.speed:1800m/min

3.

3002 cold godet

2sets

S





φ 150*260mm







Motor power:1.5KW





Max.speed:1800m/min

4.

3003 SR

3sets

S





φ 60*260mm







Max.speed:1800m/min

5.

3004 Puffed head three heads

1 set

S





Max. Diameter: 1000D-3000D

6.

3005  Cooling plate

1set

S





Diameter:φ 480





Suction motor power:5.5KW

7.

3006 Control system

1set

S





PLC:S7-200

Germany





Inverter: Yaskawa Japan





Touch screen: MCGS China

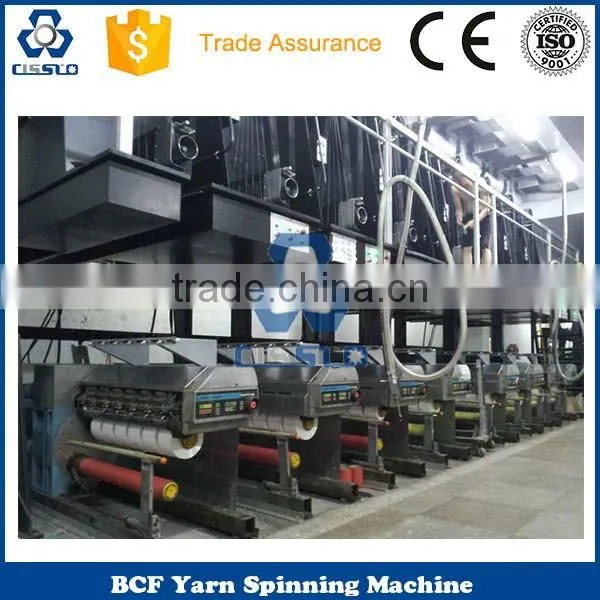

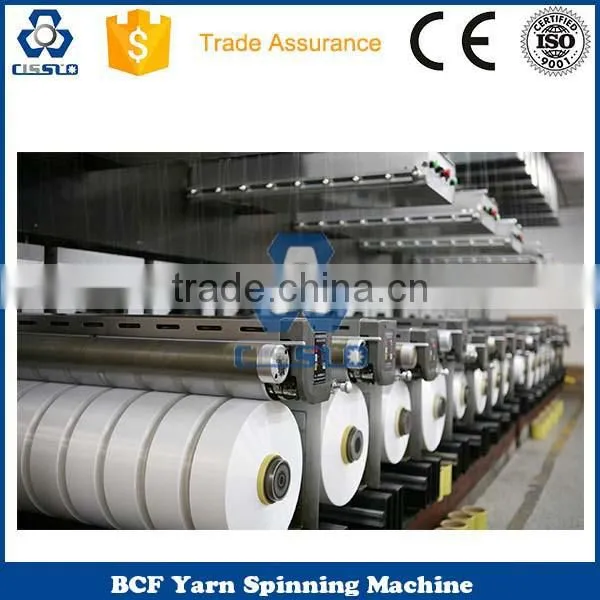

2. Pictures of BCF yarn making machine

BCF YARN PRODUCTION MACHINERY, EXTRUDER LINE FOR BCF YARNBCF YARN PRODUCTION MACHINERY, EXTRUDER LINE FOR BCF YARNBCF YARN PRODUCTION MACHINERY, EXTRUDER LINE FOR BCF YARNBCF YARN PRODUCTION MACHINERY, EXTRUDER LINE FOR BCF YARNBCF YARN PRODUCTION MACHINERY, EXTRUDER LINE FOR BCF YARNBCF YARN PRODUCTION MACHINERY, EXTRUDER LINE FOR BCF YARN

BCF YARN PRODUCTION MACHINERY, EXTRUDER LINE FOR BCF YARN

Packaging & Shipping

BCF YARN PRODUCTION MACHINERY, EXTRUDER LINE FOR BCF YARN

Our Services

• We design, engineer and manufacture and customized the extrusion line.

• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements,  weigh the options and recommend the best solution for the client.

• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and     installation at our client’s factory

• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.

Contact Information

Victor Fang

CissCo Machinery Co., Ltd.

Mob.:     +86 15221346108  I Office: +86 2138726398/99

Email:    sales02@

Skype:   cisscomachinery03

Web:

Add.:     30B, No.58 New Jinqiao Road, Pudong, Shanghai, China

please feel free to contact us if you have any question!
