PSF FIBER PROCESSING PLANT
PET FIBER PROCESSING PLANT
1.About us: CISSCO MACHINERY CO., LTD
Cissco Machinery Co., has been engineering and manufacturing a series of EXTRUSION MACHINERY for more than 10 years and has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.
2. About our technology: PSF FIBER PROCESSING MACHINERY, PET FIBER PROCESSING LINE
This production line can be used to produce polyester, polypropylene, polyamide and other staple fiber. Corresponding to technical equipment adjustment, it will be used to produce three-dimensional hollow fiber and other special chemical fiber.
The mainframe is diveded into two main parts, the prevenient filature and post filature.
3. Raw Material for our : PSF FIBER PROCESSING PLANT, PET FIBER PROCESSING PLANT
4. Our Machinery process: PSF FIBER PROCESSING PLANT, POLYESTER FIBER PROCESSING PLANT
Two processes including:

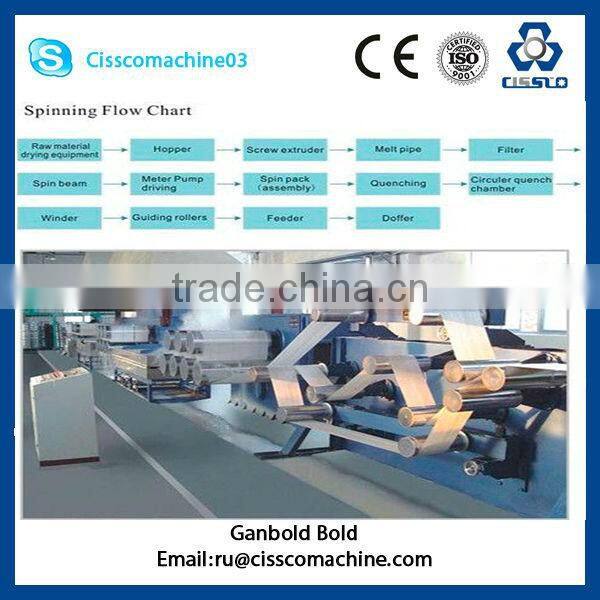

4.1 fore spinning Line:

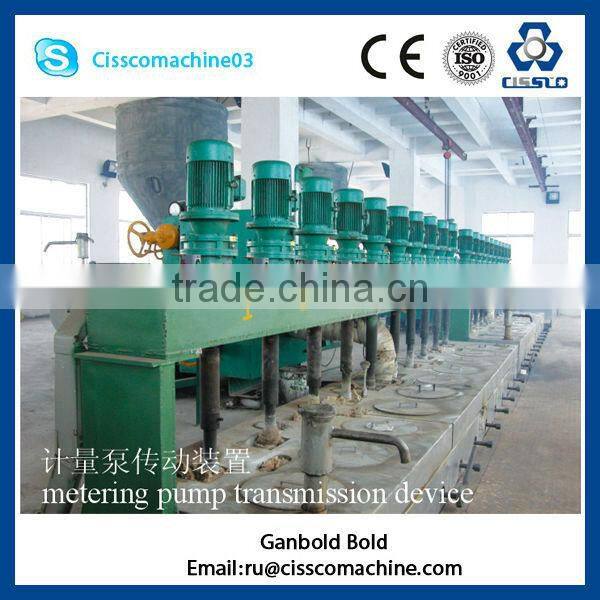

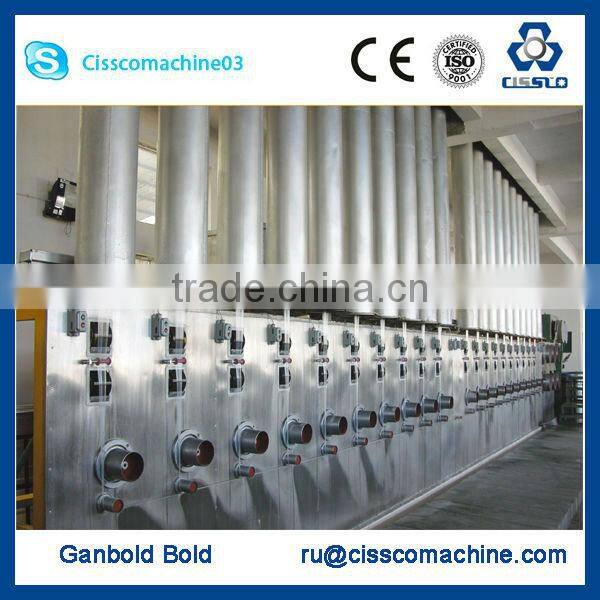

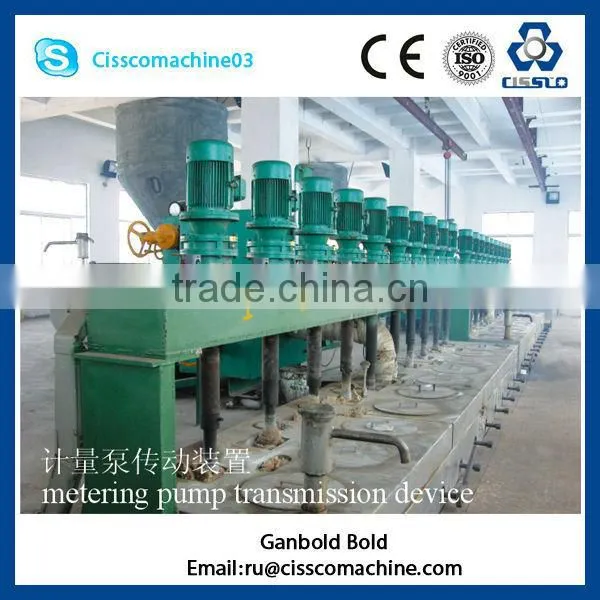

Vacuum Dryer -> Hopper -> Screw Extruder -> Filter -> Spin Beam (Meter Pump System, Spin Pack, Spinneret) -> Quenching Unit -> Interfloor Duct -> Draw-off Wall -> Capstan Roller -> Sunflower Gearing unit -> fiber can traverse system

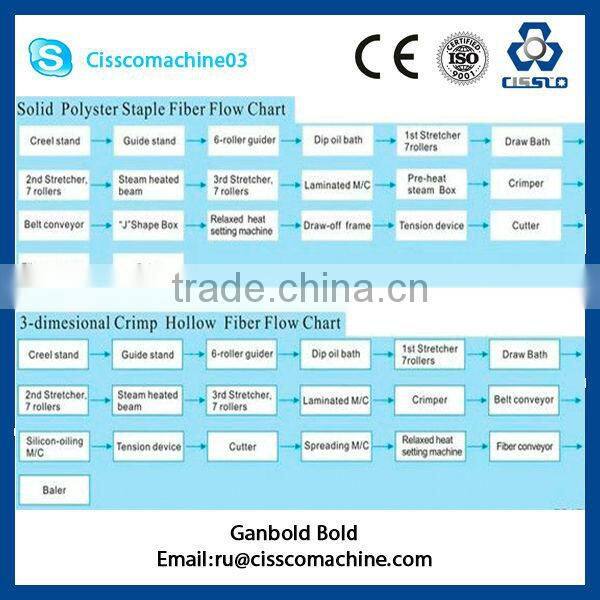

4.2 after spinning Line:
if 2-Dimensional Hollow Fiber:

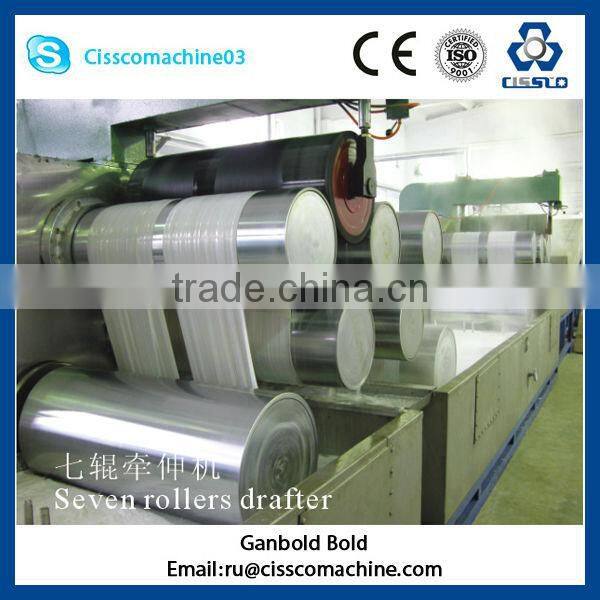

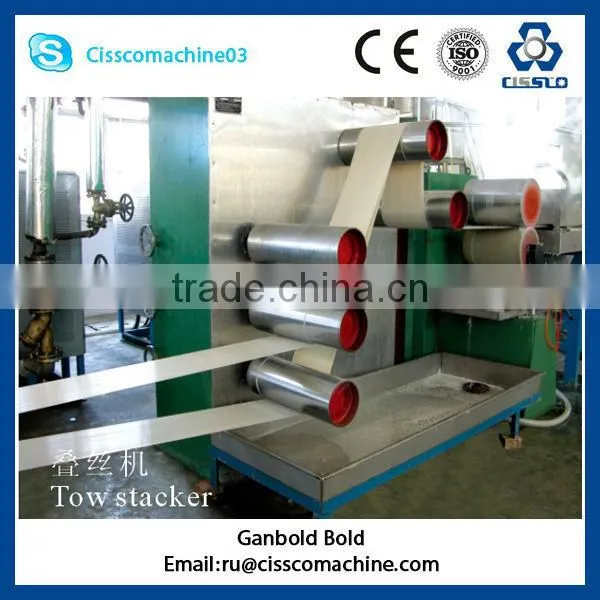

Can Creel -> Inlet Thread Guide -> Tow Guide Stand -> Dipping Bath -> 1st Draw Stand -> Draw Bath -> 2nd Draw Stand -> Draw Steam Chest -> 3rd Draw Stand -> Tow Stacker -> Crimper Steam Box -> Crimper -> Tow Conveyer -> Relaxer -> Tow Tension Stand -> Cutter -> Chain Plate Conveyor -> Baling Press
if 3-Dimensional Hollow Fiber:
Can Creel -> Inlet Thread Guide -> Tow Guide Stand -> Dipping Bath -> 1st Draw Stand -> Draw Bath -> 2nd Draw Stand -> Draw Steam Chest -> 3rd Draw Stand -> Tension Control Device -> Tow Stacker -> Crimper Steam Box -> Crimper -> Silicon Oil Sprayer -> Tow Tension Stand -> Cutter -> Fiber Spreader -> Fiber Leveler -> Relaxer -> Chain Plate Conveying system -> Baling Pressrecycled psf production line
5. Our process in Pictures

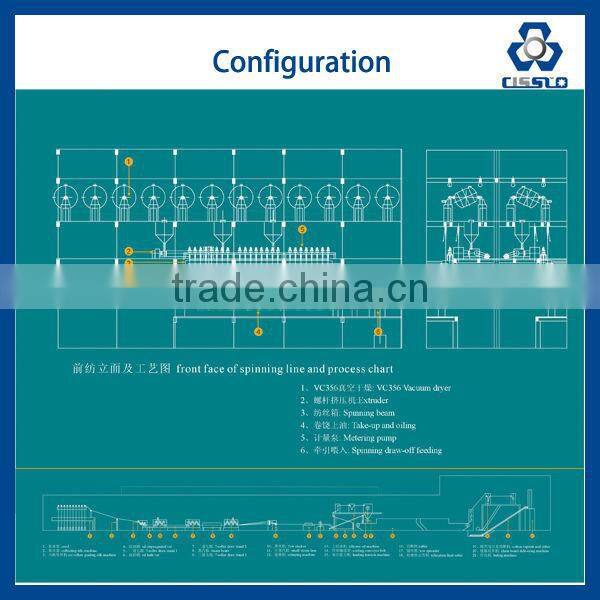

6. Layout , Configuration and Main parts of our PSF FIBER PROCESSING PLANT, POLYESTER FIBER PROCESSING PLANT
Note : The above production line is standard , different customers have different requirements , however we adjust the entire line according to our clients productions requests.
our wide knowledge in the production of Staple fiber allow us to carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
7. Our Service for PSF FIBER PROCESSING PLANT, POLYESTER FIBER PROCESSING PLANT
• We design, engineer and manufacture and customized the extrusion line.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our clients factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.

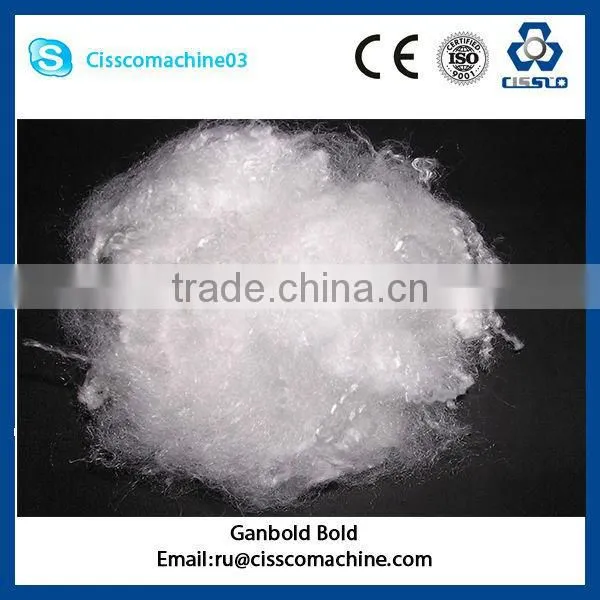

8. Our PSF FIBER PROCESSING PLANT, POLYESTER FIBER PROCESSING PLANT /FINAL PRODUCT
9. Our Location
10. CONTACT INFORMATION :
Loyal Luo, Sales Export & Business Developer
CissCo Machinery Co., Ltd.
Mob.: +86 18817937157 I Office: +86 2138726398 / 99
Email: market02@ I Skype: cisscomachine03 I Web:
Add.: 30B, No.58 New Jinqiao Road, Pudong, Shanghai, China
