MORTARS FIBER MACHINERY

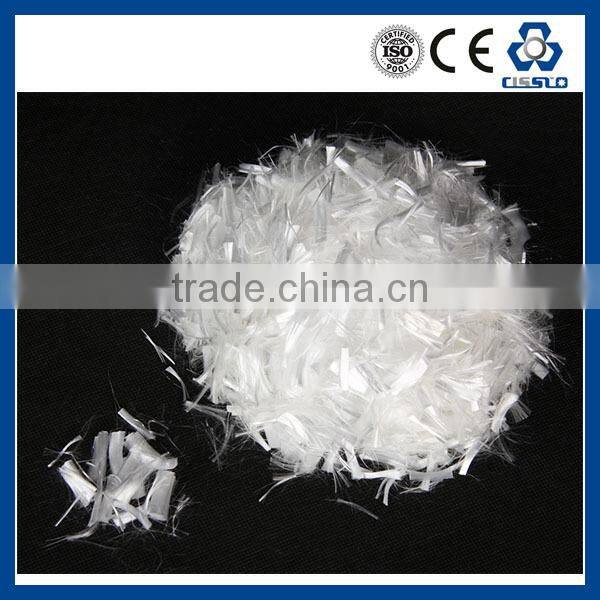

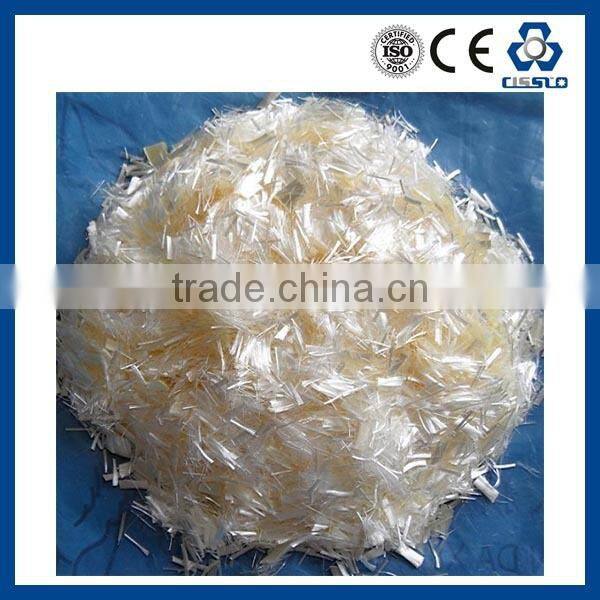

I. About the mortars fiber
Polypropylene fiber also called PP fiber, is a new type of reinforcing and crack-resistant building material for bitumen concrete reinforcement. It is produced by special technique.With polypropylene as its raw material,fiber-mesh is produced by special technology.It appears net-like structure with many monofilaments connected.
The horizontal structure in monofilament can be destroyed in the course of the stirring owng to friction and rubbing,and the monofilament or net-like structure will fully stretch,thus the concrete is reinforce by a great number(more than 7 million pieces per cubic meter) of polypropylene fibers.
II. Characteristics of the mortars fiber
Specifications: | |
Material | 100% Polypropylene |
Cut length | from 6mm to 30mm |
Density | 0.91±0.01g/cm³ |
Range of Denier | 2D-15D |
Color | Nature White |
Strain at break | <35% |
Yield Strain | > 320 Mpa |
Ignition temperature | >583°C |
melting temperature | 165 °C |
Acid&Alkali Resisrance | Non-poisonous |

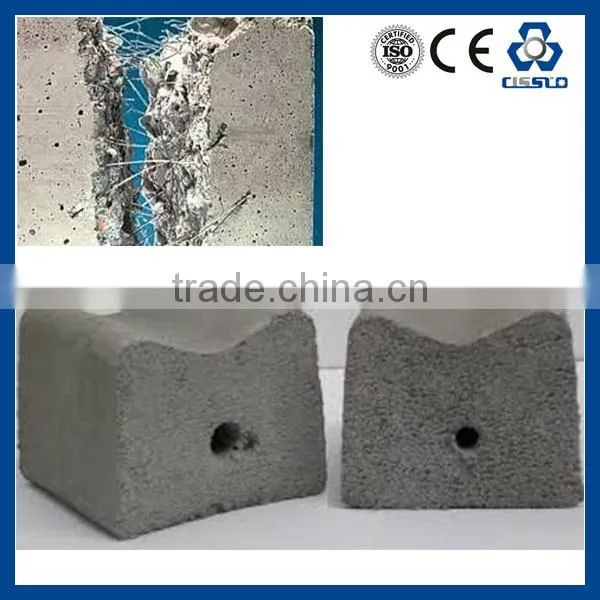

III. Reinforced Functions to Concrete Mortar
1. Resist to shrink & crack;
2. Increase impact resistance and peeling resistance;
3. Increase friction resistance;
4. Increase seepage resistance;
5. Increase freezing & thawing resistance;
6. Improve tendons protection
7. Prevent mortar split and crackle expansion;
8. Replace steel net (using in plastering).
IV. Usage of fiber:
1. Applicable to the waterproof layer, floor, inner &outer wall of public and civil construction.
2. The ground surface of industrial workshop,warehouse and parking lot.

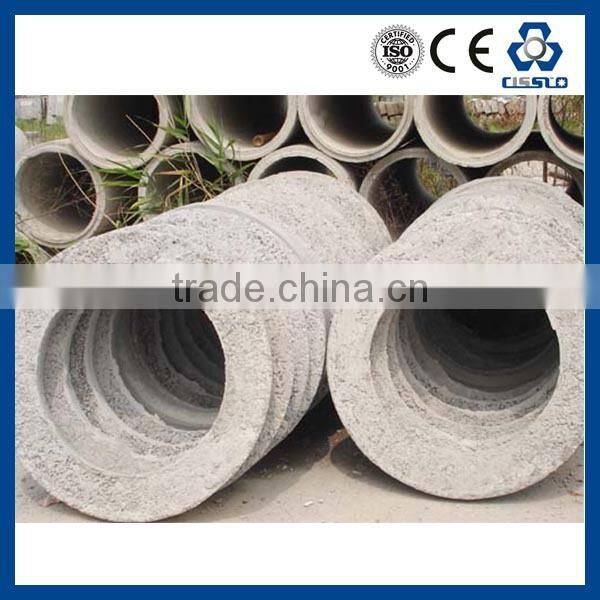

3. Natatorium, swimming pool, pond and concrete Drains.
4. Application to any mortar projects and common concrete projects.
5. Highway, bridge ,viaduct, and roads.
V. Technical process about mortars fiber machinery:
Feeding→hopper→melting→filtering→spinning beam→meter pump→spinning→cooling→shaped→oil→traverse→dipping→first drafter→Heating Oven→second drafter→Heating Oven→third drafter→tow stacker→delivery→dryer→hauling tension→cutter→spreading→baler
VI. Main processing parameter about mortars fiber machinery:
1. Screw extruder: 1 set (screw diameter: ø90/180)
2. Spinning beam: 1 set (6 spinning locations/set)
3. Spinning location: 6
4. Spinneret (Stainless steel)
5. Holes:56,000 (1.5D-4D)
6. Holes: 23,000(7D-10D)
7. Spinning speed: 20-60m/min
8. Speed: 120m/min (max.)

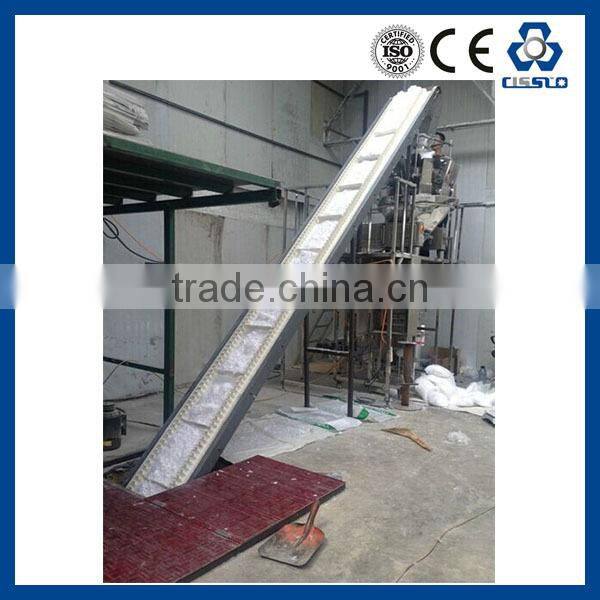

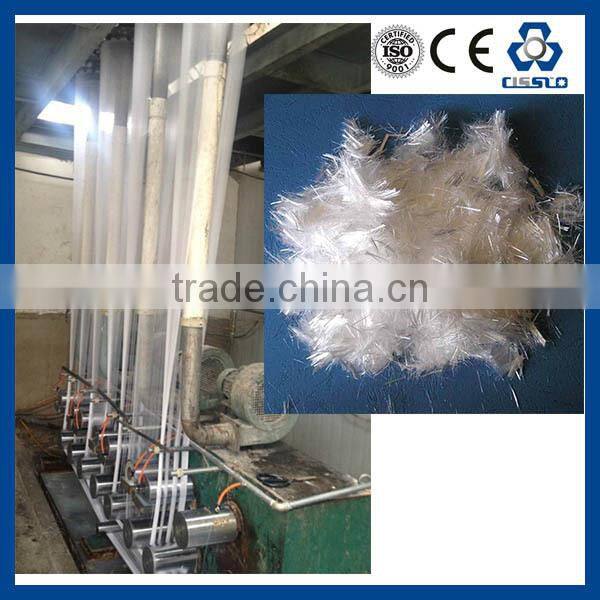

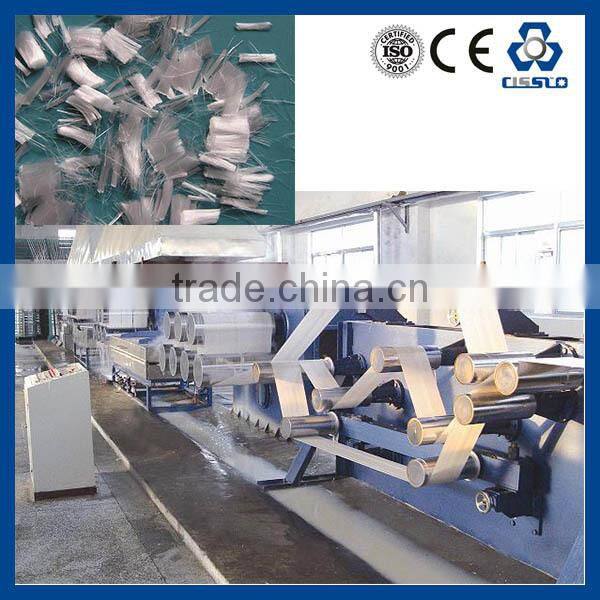

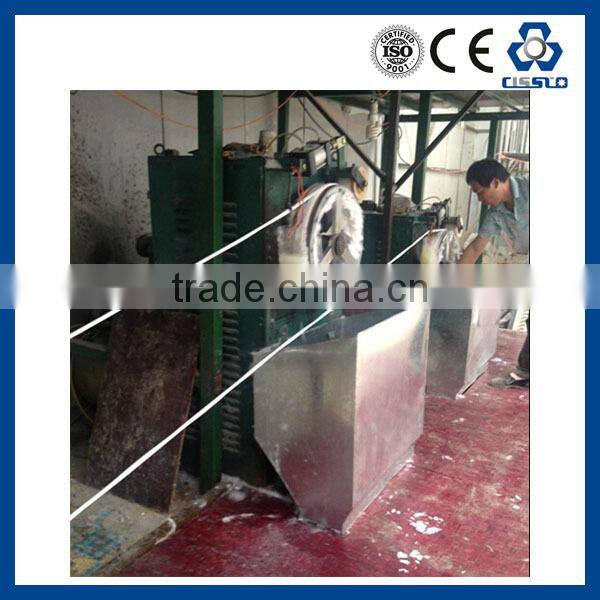

VII. Pictures of mortars fiber machinery:
1. We design, engineer and manufacture and customized the extrusion line.
2. Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
3. Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
4. Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
