Home > Products > STRAP & IRRIGATION > Flexible Polyester Strap Making Machine
Flexible Polyester Strap Making Machine
- 10 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Application: | Other, POLYESTER FIBER STRAP | Plastic Processed: | PP |
Screw Design: | Single-screw | Automatic Grade: | Automatic | Place of Origin: | Shandong, China |
Brand Name: | Polyester strap making machine | Model Number: | Polyester strap making machine | Voltage: | 380V |
Power(W): | 60KW | Dimension(L*W*H): | 20-25m*5m*3.5m | Weight: | 10 tons |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Flexible Polyester Strap Making Machine
1. Introduction of Polyester Strap:
Soft fiber polyester strap adopt polyethylene terephthalate as the main raw material, made from high-strength polyester textile fibers using cross woven yarn avoid cracking, which is currently the world for a new type of environmentally friendly alternative to steel packaging materials.
Polyester strapping has many advantages over conventional, manually applied strapping products.
Would you like to eliminate transport damage to your cargo?
Are you looking for a safe and cost effective alternative to the steel strapping / metal banding you are currently using?
Polyester strapping solutions provide safe and cost effective ways to secure your cargo and prevent it from damage.
2. Fiber strap’s material:
l PP and pet fiber
l Fiber size: 500D 1000D 2000D 3000D 6000D 9000D
3. Character of Polyester Strap
width | loading capacity | roller meters | fiber pieces |
13mm | 300-488kg | 1100m | 12 |
16mm | 425-690kg | 850m | 16 |
19mm | 600-980kg | 600m | 19-20 |
25mm | 785-1250kg | 500m | 21-23 |
32mm | 1500-2600kg | 230m | 23 |
4. Benefits of Polyester Strapping Band:
l As strong as steel
l Safe for users & receivers
l Cost effective
l Does not damage your products
l Shock absorbent
l High retained tension
l High system strengths
l Printable with your company name & logo
l Light-weight & portable
l Chemical resistant
l Will not rust or rot
l Weather resistant
l Re-tensionable
5. Features of Polyester Strapping making machine line:
l We strictly make the polyester strapping line as to safe standard
l Hanumanized design, High automatic control, easy operation, long life span
l Precision manufacturing, low noise, high capacity
l High speed reliable production, line speed is 120m/min
6. Main technical parameter of Polyester Strapping making machine line
Width of strap | 6-32mm |
Line speed | 120m/min |
Total installed power | 40kw |
Capacity | 70-100kg/h |

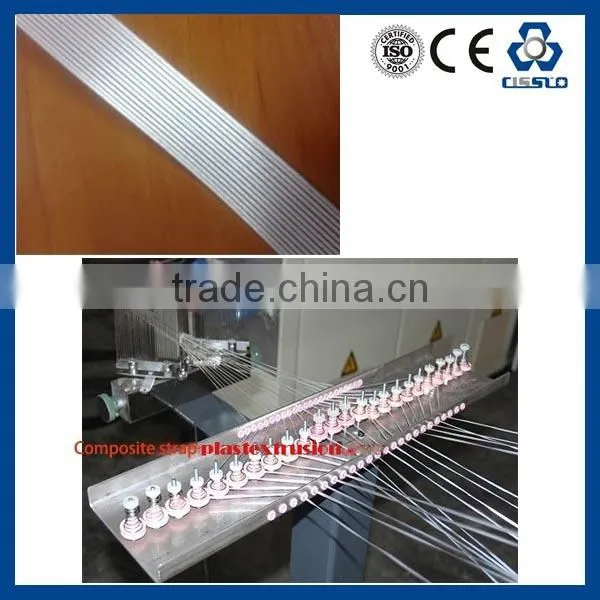

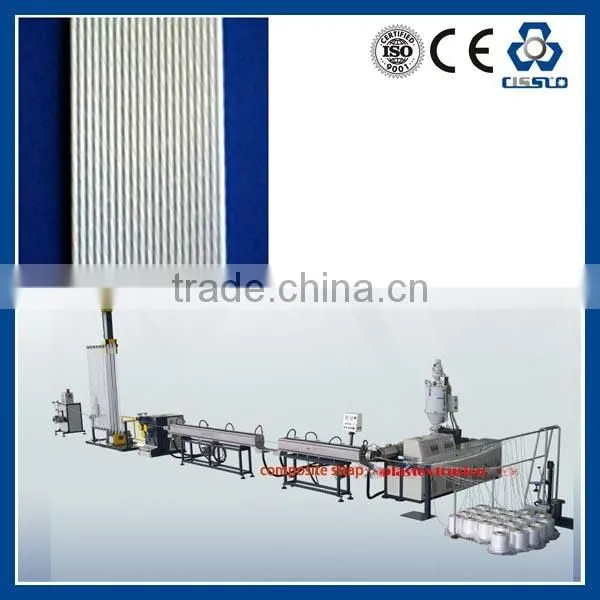

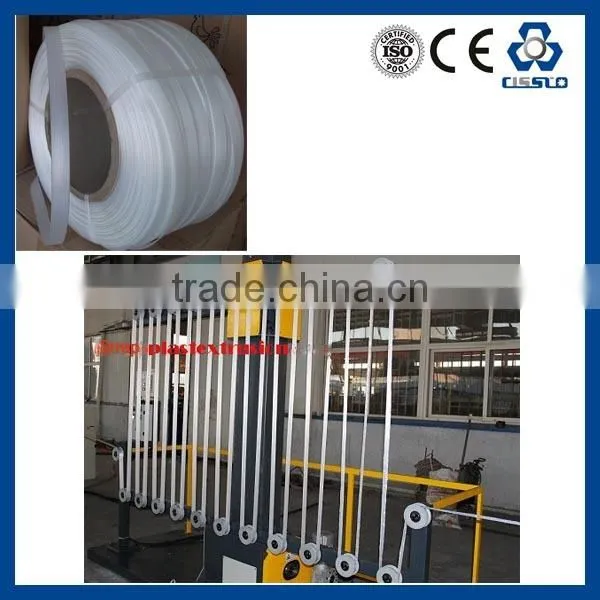

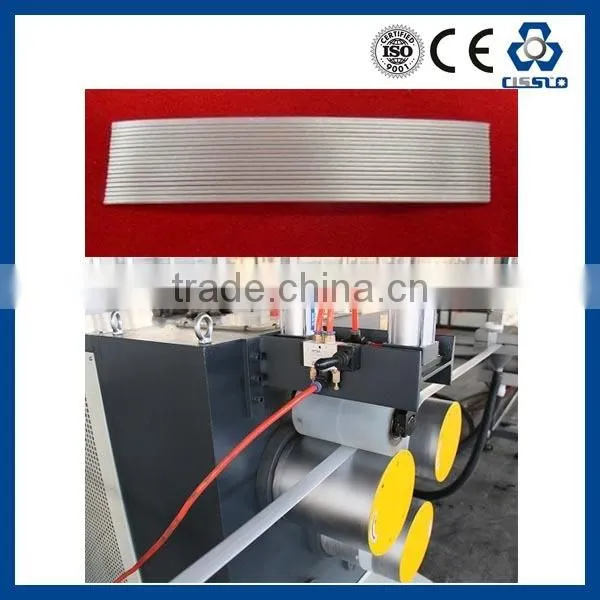

7. Pictures of Polyester Strapping making machine line
For PET(polyester) strapping band extrusion line
- What about the output of PET strapping band extrusion line? 100kg/hr, 200kg/hr, 400kg/hr, 800kg/hr.
- What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.35-1.2mm;
- What about the installation power of the PET strap machine? 215kw/285kw/352kw/900kw;
- What about the maximum tensile strength of the strap? 12000N (32*1.2mm);
- What about the camber of strap? <20mm/2m;
- What about the usage of PET strap? Packing cotton, aluminum, wood, brick, boxes;
- Will the strap be used for automatic strapping tool or manual tool? Both.
• We design, engineer and manufacture and customized the extrusion line.
• Choosing the right solution: In plastics manufacturing, process is everything. We carefully evaluate each project's requirements, weigh the options and recommend the best solution for the client.
• Training & Development: we offer extensive start-up assistance, comprehensive training. As well as Engineers for training and installation at our client’s factory
• Support: We support the client in all the stages of the project life cycle, as well as the constant spare parts supply in a time efficient manner.
CissCo Machinery Co., has been engineering and manufacturing a series of EXTRUSION MACHINERY for more than 20 years and has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.
For PET (Polyester) strapping band production line, we have the samilary design, process and technology as Italy company. Comparing with the low price low quality machine, please note our strong advantages:
1. 20 Years Experiences;
2. Italy Technology;
3. High Efficiency Oven Heating and Annealing system;
4. MAAG melt pump--Switzerland;
5. PLC Controlled Low-Camber Constant-tension Winder;
6. Fully Automatic No-Stop Back-Flush Screen Changer;
7. Easy to Operate, Stable Performance, Good Quality Straps, Low Production Cost;
8. Quicker Production Speed, Big Output;
9. Good Material and Well-Known Brand Electrical Parts;
10. Beautiful Appearance;
11. Free Training for Technical Process, Formula and Know-How;
12. Full Time and High Level After-Sale Services.
