FOAM FOOD BOX MACHINE


 I.  List of equipments of disposable foam containers making machine

II.  Main technical parameters of disposable foam containers making machine:

1. HLSJPS-100/130 high foaming polystyrene sheet extruder unit

• Capacity: 250~310kg/h

• Sheet thickness: 1.5mm~6mm(adjustable)

• Expansion rate: 11~30

• Drawing speed: 5~40m/min

• Mounted capacity: 250KW

• Center height:1000mm

• Mounting size: 33m (L) ×4.5m (W) ×3m (H)

• Compressed air: 0.4~0.6m3/min 0.7Mpa

• Cooling water: 13m3/h,≥0.2Mpa

• Weight:18ton

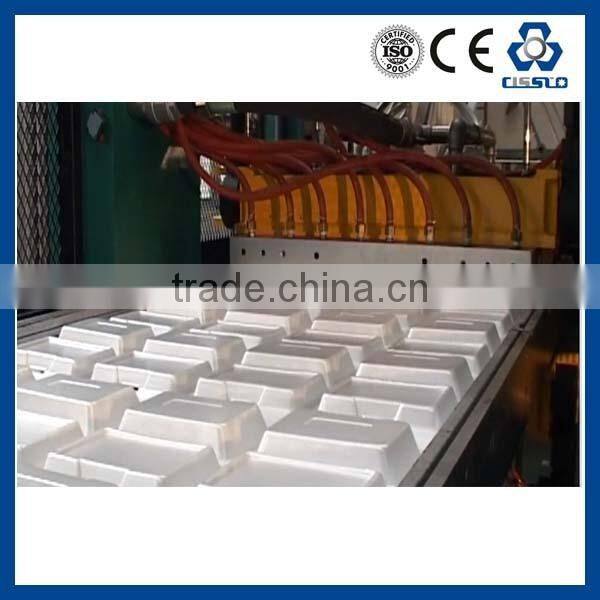

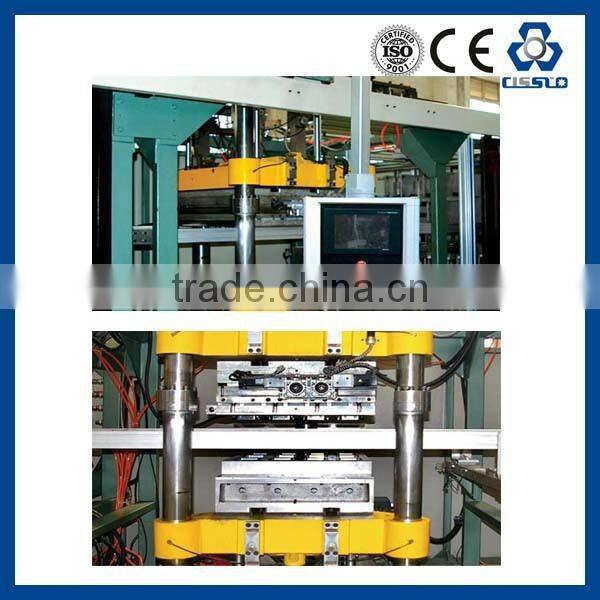

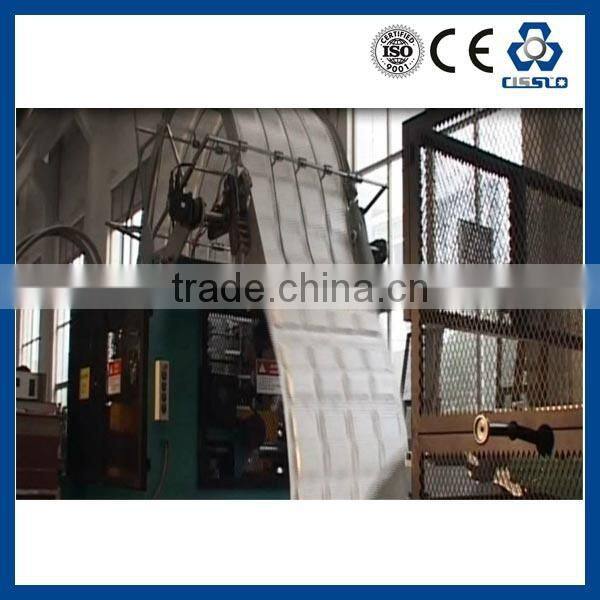

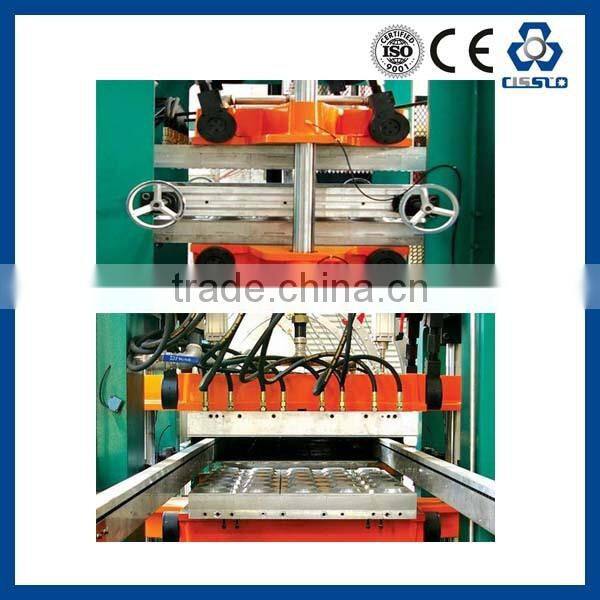

2. HLRCH-1300/1420 Auto Forming and in-line cutting line

• • Forming area(max): 1270mm×1420mm
  • Max forming depth: 127mm

  • Max forming speed: 30 cycles/min

  • Max forming force: 60t

  • Max. trim area: 127mm(W)×500mm(L)

  • Max. Trim speed: 130 cycles/min

  • Mounted capacity: 400KW

  • Mounting size: 20m(L)×4.5m(W)×3.5m(H)

  • Weight: 25tons

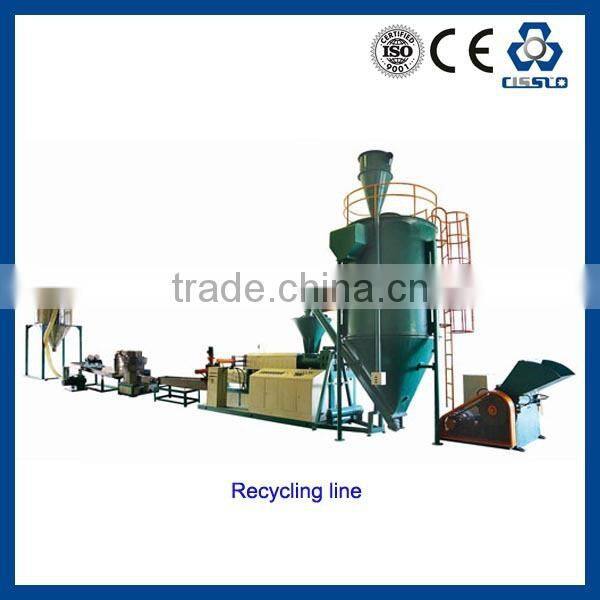

3. HLFS-130 Die-cutting recycle machine group

• • Capacity: 100~180kg/h

  • L/D of first screw: 18.5/1; Second L/D:11/1;

  • Mounted capacity: 90KW;

  • Pressure of cooling water: ≥0.2Mpa

  • Volume of cooling water: 2T/H

  • Mounting size: 17m×3.5m×5.5m;

  • Weight: 8T

III.  Characters of disposable foam containers making machine supplied by CissCo:

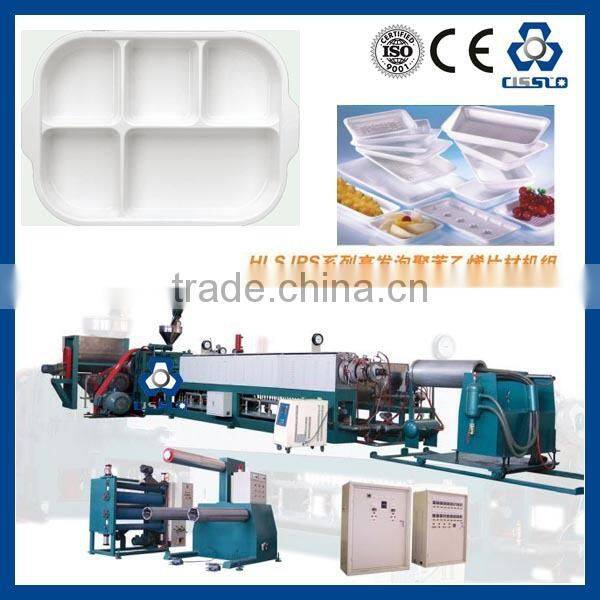

1. HLSJPS-100/130 high foaming polystyrene sheet extruder unit

The high foaming polystyrene sheet extruder unit is mainly used in food packaging, such as food boxes, plates, bowls, industrial protecting packaging, KD board and also can also be used as the thermal insulation and sound- proof material.

The high foaming polystyrene sheet extruder unit supplied by CissCo is the two stage series extrude foaming production line. It takes general polystyrene (GPPS) as raw material, adding some auxiliary materials and then plasticized in extruder machine. Mixing with foaming agent (foaming agent injected by metering pump of high precision and high pressure), milling, homogenizing, cooling and finally forming different sizes of high foaming polystyrene sheets after extruded from the machine head. Customers also can add printing machine in line according to their needs.

The high foaming polystyrene sheet extruder unit has the following advantages:

• Optimal designed precise screws.
• Equip with precise extrusion elements
• Special designed end of second stage extruder to ensure no leakage.
• With static mixing elements to ensure uniformity of plasticized.

Photo Show

  Our mission is to provide globally engineered solutions and high performing plastic extrusion machines, supported by good after-sale service.

CissCo Machinery Co., has been engineering and manufacturing a series of EXTRUSION MACHINERY for more than 20 years and has thus acquired an extensive expertise in the supply of manufacturing machinery; having based ourselves on the features demanded by large companies in more than 30 countries.

•  What is the material?
• What is the size of the box?
• What is the capacity required?
• Do you need the whole machine or just the thermoforming line?
