Low Cost Gantry Cnc Plasma Cutting Machine

Shijiazhuang Haichuan Machinery Co., Ltd.
Low Cost Gantry Cnc Plasma Cutting Machine thumbnail-1
Low Cost Gantry Cnc Plasma Cutting Machine thumbnail-2
Low Cost Gantry Cnc Plasma Cutting Machine thumbnail-3
Low Cost Gantry Cnc Plasma Cutting Machine thumbnail-4
Low Cost Gantry Cnc Plasma Cutting Machine thumbnail-5
Low Cost Gantry Cnc Plasma Cutting Machine thumbnail-6
Low Cost Gantry Cnc Plasma Cutting Machine photo-1
Low Cost Gantry Cnc Plasma Cutting Machine photo-2
Low Cost Gantry Cnc Plasma Cutting Machine photo-3
Low Cost Gantry Cnc Plasma Cutting Machine photo-4

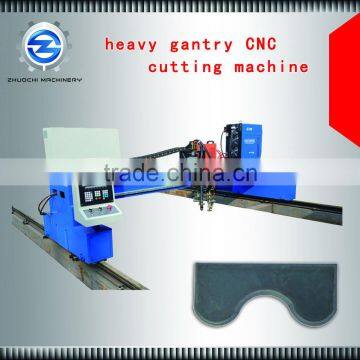

Low Cost Gantry Cnc Plasma Cutting Machine photo-5

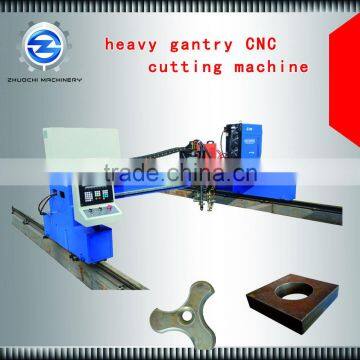

Low Cost Gantry Cnc Plasma Cutting Machine photo-6
US$ 51,600 - 52,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
Zhuochi machinery
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Hebei, China
Brand Name Zhuochi machinery
Model Number ZC-LM-50
Voltage 220V
Rated Power 3.0kw
Dimension(L*W*H) 5000mm*8000mm
Weight 700KG
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

                          low cost gantry cnc plasma cutting machine cheap cnc plasma cutting machine
                                                               plasma cutting machine cnc
　　gantry cnc cutting machine is different cutting machine ,He can assemble multiple cutting heads, or cut bar-shaped plates，there are bilateral drive and  running is stabilization. you can choose gantry cnc plasma cutting machine or gantry cnc flame cutting machine.
       heavy gantry CNC cutting machine ，we design beams using high-strength steel welding process，vertical rail with 24Kg heavy rail,bilateral drive and sue the most advanced digital operation control system。the whole machine beautiful、run stable、cutting speed、high precision、operation convenience、high working efficiency、Widely used in machinery manufacturing, steel structure, shipbuilding, boiler manufacturing, container manufacturing, sheet metal .
ZC-LM-50 SPECIFICATIONS
name
Description
Remarks
Specification model
ZC-LM-50
There are two kinds of cutting ways with machine,one is flame CNC cutting ,other is plasma CNC cutting , you also can choose anyone CNC cutting way
Longitudinal center distance(W/mm)
5000mm
It is width of beam , The distance of width is between two tracks.
Effective cutting width（a/mm）
W-450-200XN
(W is Longitudinal center distance,N is The total number of cutting torch
About the effective cutting width ,when we were operating , we usually minus 700mm,for example the beam width is 3000mm heavy gantry CNC cutting machine,the effective cutting width is about 2300mm
Longitudinal rail length（L/mm）
According to customer requirement (2 meters as a unit)
Usually the longitudinal rail length is 8 meters.If customers want to lengthen , they will lengthen 2m as a unit, so the machine can be able to length 8m 12m and so on
Effective cutting length（b/mm）
L-2000
(L is Longitudinal rail length）
Longitudinal track effective cutting length is usually longitudinal track length minus 2000mm, for example ,longitudinal track length is 8000mm,so effective cutting length is 6000
Drive mode
Bilateral drive
Both sides of the beam are servo motors, running is stabilization,cutting accuracy is better than Unilateral drive.
Running speed
Maximum blank line speed 10000mm/min
Cutting speed based on plasma power and according to the different cutting requirements of customers with different cutting power supply.
Torch height
≥150mm
The height of Up and down body is between 50mm-200mm with our CNC cutting machine
Input voltage
220V/50HZ
(Unidirectional voltage)
Standard voltage can be
Input power
3.0KW
Main motor power，except plasma power
Power consumption
≤500W（stepper motor）≤2000W（servo motor）
Repeat position accuracy
±0.2mm
Again and again

Horizontal and vertical drive: the use of precision rack and pinion drive, smooth operation, durable; planetary gear reducer used to ensure the accuracy of movement and balance

Detailed Images

         different plasma cutting power cut different thickness metal，plasma power cutting is suitable for cutting middle and thin nonferrous metal，cutting fast speed，so to achieve higher production capacity ,save recourse for customer

high precision, fine cutting can reduce the waste of materials,save raw materials.

Name:plasma cutting gun
The plasma cutting size and thickness is determined by the plasma power supply，plasma power price is different greatly，plasma power quality directly affect cutting effect,plasma cut thin metal plate，The plasma cutting speed is faster than flame cutting speed.


Machine Parts

Name:system

Brand: Shanghai  fangling

Original: china

According to customer requirement ，we can choose different system，for example，shanghai fangling, beijing starfire and United States Hypertherm and so on,but shanghai

fangling is the most popular。


          For more convenient handling of emergencies, such as start-up, stop, rise, fall, forward and reverse, Zhouchi can customize your wireless remote control system

so that you can easily handle these problems within 100 meters.

Related Products

heavy gantry type CNC cutting machine

91.8% Response Rate

desktop type CNC cutting machine

91.8% Response Rate

portable CNC cutting machine

91.8% Response Rate

our customers
Our Service

Pre-Sales Service

1:7*24 hours online service and waiting for your consultation online and offline
2：professional technical guidance for answer all the questions for you
3：International market 24 hours service，Skype whatsApp Email Facebook and so on ，

After-Sales Service

1：Machine warranty for one year, the warranty period of free replacement parts problems
2：24-hour after-sales hot-line professional and technical team online for you to solve the use of the problem
3：Remote guidance, remote mapping
4：Free programming services，you only need to tell us the drawings and requirements, we will pass the CNC file to you
Packing & Delivery
Packaging
Size
3000 (L) * 1700 (W) *900 (D)
Weight
1 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
3000 (L) * 1700 (W) *900 (D)
Weight
1.05 T



Packaging Details
Package: Seller will be responsible for wood package
FAQ

FAQ.

1.Are you a factory or a trading company?
We are a professional manufacturer who are specializing  in researching and producing all kinds of  cnc cutting

machines，we began our business in 2000，
2.Where is your company located?
We are located in Shijiazhuang Hebei province.
3.What is the quality warranty time?
12 months.and 24 hours service online and offline
4.How long is the delivery time?
Usually within 10-15 days.
5.When you send us the inquiry ,please tell me your cutting requirements?
A.what is the cutting material? Carbon steel or stainless steel?
B.what is the cutting thickness range?
C.What industry are you in?If you have drawings,it will be helpful for us to give you the best solution.
