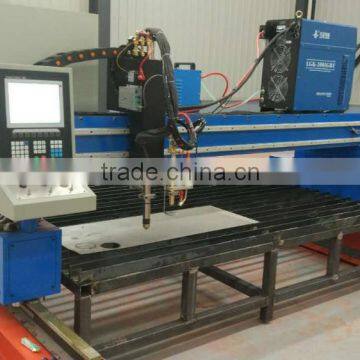

Gantry Cnc Plasma Cutting Machine in China

Shijiazhuang Haichuan Machinery Co., Ltd.
Gantry Cnc Plasma Cutting Machine in China thumbnail-1
Gantry Cnc Plasma Cutting Machine in China thumbnail-2
Gantry Cnc Plasma Cutting Machine in China thumbnail-3
Gantry Cnc Plasma Cutting Machine in China thumbnail-4
Gantry Cnc Plasma Cutting Machine in China thumbnail-5
Gantry Cnc Plasma Cutting Machine in China thumbnail-6
Gantry Cnc Plasma Cutting Machine in China photo-1
Gantry Cnc Plasma Cutting Machine in China photo-2
Gantry Cnc Plasma Cutting Machine in China photo-3
Gantry Cnc Plasma Cutting Machine in China photo-4
Gantry Cnc Plasma Cutting Machine in China photo-5
Gantry Cnc Plasma Cutting Machine in China photo-6
US$ 51,800 - 52,300 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
Zhuochi machinery
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Hebei, China
Brand Name Zhuochi machinery
Model Number ZC-LM-40
Voltage 220V
Rated Power 3.0kw
Dimension(L*W*H) 4000mm*8000mm
Weight 700KG
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

                            gantry cnc plasma cutting machine       cnc gantry plasma cutting machine
                                                     cnc plasma cutting machine china
　　Shijiazhuang ZhuoChi Machinery Co., Ltd was established in 2000，We are a high-tech enterprise that we focus on laser, plasma, flame CNC cutting machine product development, production and sales
　　So far,we have heavy gantry type CNC cutting machine、desktop type CNC cutting machine、portable CNC cutting machine and all kinds of plasma powers、CNC cutting operating system ，we can able to fulfill different costumer production needs
　　We have professional R & D and production team,professional CNC cutting technology，all technical staffs have more than five years experience for CNC cutting technology research and development，we have best product because we strictly control our product quality。
ZC-LM-40 SPECIFICATIONS
name
Description
Remarks
Specification model
ZC-LM-40
There are two kinds of cutting ways with machine,one is flame CNC cutting ,other is plasma CNC cutting , you also can choose anyone CNC cutting way
Longitudinal center distance(W/mm)
4000mm
It is width of beam , The distance of width is between two tracks.
Effective cutting width（a/mm）
W-450-200XN
(W is Longitudinal center distance,N is The total number of cutting torch
About the effective cutting width ,when we were operating , we usually minus 700mm,for example the beam width is 3000mm heavy gantry CNC cutting machine,the effective cutting width is about 2300mm
Longitudinal rail length（L/mm）
According to customer requirement (2 meters as a unit)
Usually the longitudinal rail length is 8 meters.If customers want to lengthen , they will lengthen 2m as a unit, so the machine can be able to length 8m 12m and so on
Effective cutting length（b/mm）
L-2000
(L is Longitudinal rail length）
Longitudinal track effective cutting length is usually longitudinal track length minus 2000mm, for example ,longitudinal track length is 8000mm,so effective cutting length is 6000
Drive mode
Bilateral drive
Both sides of the beam are servo motors, running is stabilization,
cutting accuracy is better than Unilateral drive.
Running speed
Maximum blank line speed 10000mm/min
Cutting speed based on plasma power and according to the different cutting requirements of customers with different cutting power supply.
Torch height
≥150mm
The height of Up and down body is between 50mm-200mm with our CNC cutting machine
Input voltage
220V/50HZ
(Unidirectional voltage)
Standard voltage can be
Input power
3.0KW
Main motor power，except plasma power
Power consumption
≤500W（stepper motor）≤2000W（servo motor）
Repeat position accuracy
±0.2mm
Again and again

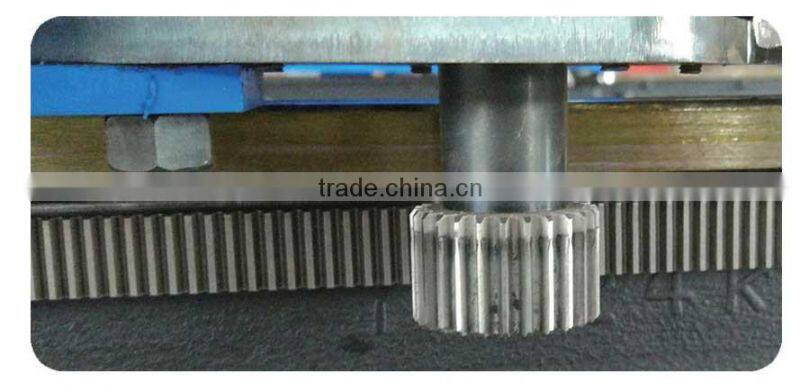

High-precision rack and pinion


welded beams

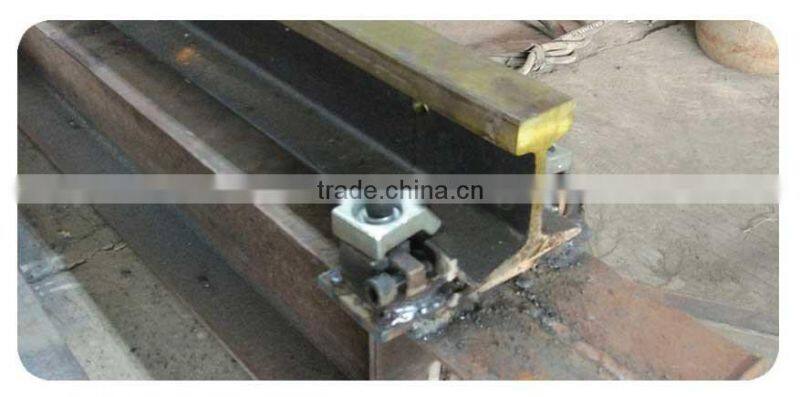

High strength 24Kg longitudinal rail

Detailed Images

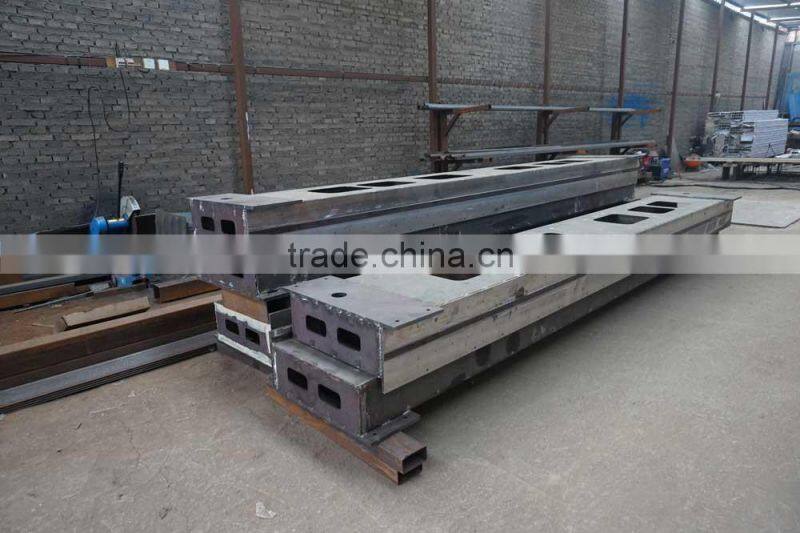

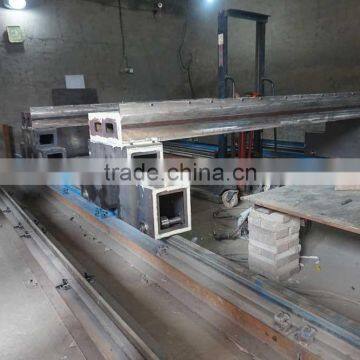

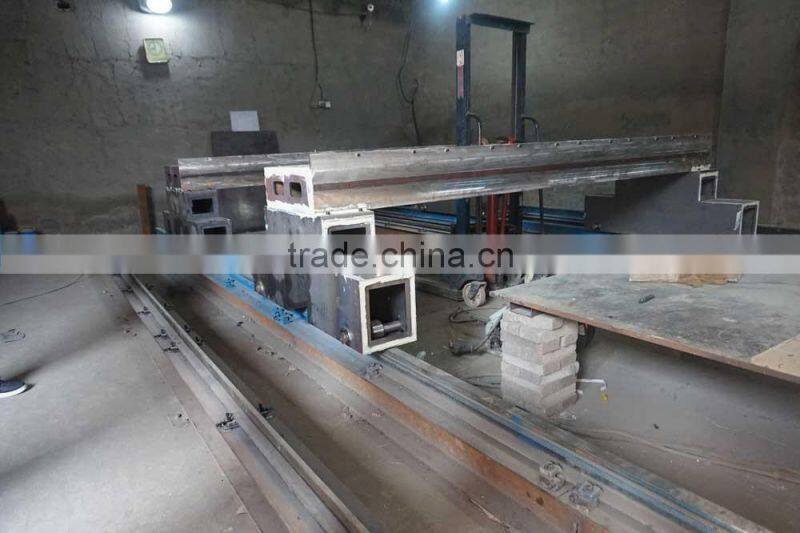

　　 Beam: square tube welded structure, with good rigidity, high precision, light weight,Small inertia. All welding parts are vibration stress aging treatment, effectively preventing the structural deformation;


Machine Parts

Name:system

Brand: Shanghai  fangling

Original: china

According to customer requirement ，we can provide

different system，for example，shanghai fangling, beijing starfire and United States Hypertherm and so on,but

shanghai fangling is the most popular。

Name:plasma cutting gun
The plasma cutting size and thickness is determined by

the plasma power supply，plasma power price is different greatly，plasma power quality directly affect cutting effect,plasma cut thin metal plate，The plasma cutting speed is faster than flame cutting speed.

Name:flame cutting gun
The flame cutting gun cut thickness board，The flame cutting thickness board is better than plasma cutting .

it is cheaper than plama cutting.

if you want to cut 20mm board , i advice you the flame cutting . fast speed and high precision.

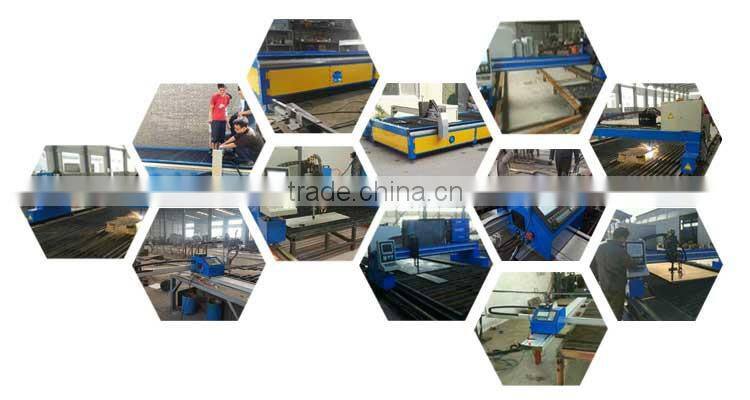

our　Customer

Related Products

heavy gantry type CNC cutting machine

91.8% Response Rate

desktop type CNC cutting machine

91.8% Response Rate

portable CNC cutting machine

91.8% Response Rate

Certifications
Our Service

Pre-Sales Service

1:7*24 hours online service and waiting for your consultation online and offline
2：professional technical guidance for answer all the questions for you
3：International market 24 hours service，Skype whatsApp Email Facebook and so on ，

After-Sales Service

1：Machine warranty for one year, the warranty period of free replacement parts problems
2：24-hour after-sales hot-line professional and technical team online for you to solve the use of the problem
3：Remote guidance, remote mapping
4：Free programming services，you only need to tell us the drawings and requirements, we will pass the CNC file to you
Packing & Delivery
Packaging
Size
3000 (L) * 1700 (W) *900 (D)
Weight
1 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
3000 (L) * 1700 (W) *900 (D)
Weight
1.05 T



Packaging Details
Package: Seller will be responsible for wood package
FAQ

FAQ.

1.Are you a factory or a trading company?
We are a professional manufacturer who are specializing in researching and producing all kinds of  cnc cutting machines，we began our business in 2000，
2.Where is your company located?
We are located in Shijiazhuang Hebei province.
3.What is the quality warranty time?
12 months.and 24 hours service online and offline
4.How long is the delivery time?
Usually within 10-15 days.
5.When you send us the inquiry ,please tell me your cutting requirements?
A.what is the cutting material? Carbon steel or stainless steel?
B.what is the cutting thickness range?
C.What industry are you in?If you have drawings,it will be helpful for us to give you the best solution.
