Low Cost Cheap Cnc Plasma Cutting Machine China

Shijiazhuang Haichuan Machinery Co., Ltd.
Low Cost Cheap Cnc Plasma Cutting Machine China thumbnail-1
Low Cost Cheap Cnc Plasma Cutting Machine China thumbnail-2
Low Cost Cheap Cnc Plasma Cutting Machine China thumbnail-3
Low Cost Cheap Cnc Plasma Cutting Machine China thumbnail-4
Low Cost Cheap Cnc Plasma Cutting Machine China thumbnail-5
Low Cost Cheap Cnc Plasma Cutting Machine China thumbnail-6
Low Cost Cheap Cnc Plasma Cutting Machine China photo-1
Low Cost Cheap Cnc Plasma Cutting Machine China photo-2
Low Cost Cheap Cnc Plasma Cutting Machine China photo-3
Low Cost Cheap Cnc Plasma Cutting Machine China photo-4
Low Cost Cheap Cnc Plasma Cutting Machine China photo-5
Low Cost Cheap Cnc Plasma Cutting Machine China photo-6
US$ 3,500 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
Zhuochi machinery
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Hebei, China
Brand Name Zhuochi machinery
Model Number ZC-BX-1520
Voltage 220V
Rated Power 350w
Dimension(L*W*H) 2500*1520
Weight 88KG
Certification ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

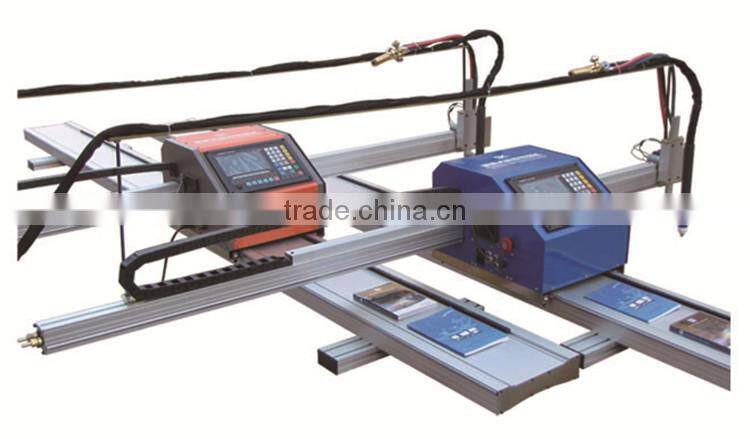

                                          low cost cheap cnc plasma cutting machine china
 low cost  cheap cnc plasma cutting machine china，we recommende portable cnc plasma cutting machine，using convince，cutting accuracy，cheapest price ，high quality

 our company design and production of portalbe CNC cutting machine ,vertical and horizontal rail use of high strength aluminum alloy profile,electrical part of the industry ot know name brand, whole compact, light weight, stable operation, cutting precision high precision. welcome to our company.

ZC-BX-1520 SPECIFICATIONS
name
Description
Remarks
Specification model
ZC-BX-1520
There are two kinds of cutting ways with machine,one is flame CNC cutting ,other is plasma CNC cutting , you also can choose anyone CNC cutting way
Effective cutting width（a/mm）
1500mm
Total length of cross arm is2200mm,effective cutting width is 1500mm,cross arm is cantilevered structure
Longitudinal track length（L/mm）
2500mm
Effective cutting length（ a/mm）
2000mm
Longitudinal track effective cutting length is usually longitudinal track length minus 500mm,for example ,longitudinal track length is 2500mm,so effective cutting length is 2000
Drive mode
Unilateral drive
Longitudinal rail and arm are used high-strength aluminum alloy overall profile，although it is unilateral drive，but the same can be able to make the equipment stable operation
Running speed
Maximum blank line speed
 3500mm/min
Plasma power determines the plasma CNC cutting speed，according to customer different requirement，we can be able to supply different plasma cutting power
Torch height
≥150mm
The height of Up and down body is between 50mm-200mm with our CNC cutting machine
Input voltage
220V/50HZ
Unidirectional voltage
Standard voltage can be
Input power
350W
Main motor power，except plasma power
Cutting quality and Dimensional accuracy standard
JB/T 10045.4-1999 <Thermal cutting_quality and dimensional deviation of plasma cutting>.

Main Features

Simple operation.flame cutting ,plasma cutting automatic height adjusting device, widely used in carbon steel industry, stainless steel ,it is good for semi-automatic car and  follow generation upgrade products.

Detailed Images

Machine Parts

Name:system

Brand: Shanghai  fangling

Original: china

According to customer requirement ，we can provide different system，for example，shanghai fangling, beijing starfire and United States Hypertherm and so on,but shanghai

fangling is the most popular。

Name: remote control
       For more convenient handling of emergencies, such as start-up, stop, rise, fall, forward and reverse, Zhuochi can customize your wireless remote control system so that you can easily handle these problems within 100 meters.

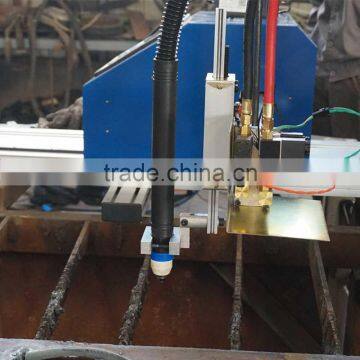

Name:plasma cutting gun
The plasma cutting size and thickness is determined by the plasma power supply，plasma power price is different greatly，plasma power quality directly affect cutting effect,plasma cut thin metal plate，The plasma cutting speed is faster than flame cutting speed.

Name: flame cutting gun
about flame cutting is combustion of oxygen with propane or acetylene and other gases produce flame cutting,flame cut thick metal plate，

Our Service

Pre-Sales Service

1:7*24 hours online service and waiting for your consultation online and offline
2：professional technical guidance for answer all the questions for you
3：International market 24 hours service，Skype whatsApp Email Facebook and so on ，

After-Sales Service

1：Machine warranty for one year, the warranty period of free replacement parts problems
2：24-hour after-sales hot-line professional and technical team online for you to solve the use of the problem
3：Remote guidance, remote mapping
4：Free programming services，you only need to tell us the drawings and requirements, we will pass the CNC file to you
Certifications
Packing & Delivery
Packaging
Size
3000 (L) * 1700 (W) *900 (D)
Weight
1 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
3000 (L) * 1700 (W) *900 (D)
Weight
1.05 T



Packaging Details
box
FAQ

1.Are you a factory or a trading company?
We are a professional manufacturer who are specializing in researching and producing all kinds of cnc cutting machines，we began our business in 2000，
2.Where is your company located?
We are located in Shijiazhuang Hebei province.
3.What is the quality warranty time?
12 months.and 24 hours service online and offline
4.How long is the delivery time?
Usually within 10-15 days.
5.When you send us the inquiry ,please tell me your cutting requirements?
A.what is the cutting material? Carbon steel or stainless steel?
B.what is the cutting thickness range?
C.What industry are you in?If you have drawings,it will be helpful for us to give you the best solution.
