NKY618 Fully Automatic Kjeldahl Nitrogen Analyzer
A & E Lab hot selling are including: UV VIS Spectrophotometer, Visible Spectrophotometer, Flame Photometer, PCR-Cycler, Centrifuge, Hotplate, Stirrer, Stirrer Hotplate, Rotory Mixer, 3D Rocker, See-Saw Rocker, Vortex Mixer, Orbital Shaker, Melting Point Device, Cold Keeper, Shaker Incubator, Viscometer, Microscope ect.
NKY618 Fully Automatic Kjeldahl Nitrogen Analyzer
Feature of Automatic Kjeldahl Nitrogen Analyzer
Titration and distillation are conducted at the same time and the ammonia gas released is neutralized, avoid the overflow of ammonia gas and enhance the test efficiency.
A high-precision micro-metering pump replaces the traditional syringe plunger pump, remarkably improving precision and reducing cleaning work.
The humanized pick & place setting of digestion duct makes it convenient for users to operate.
Diaphragm pump is used to add reagent to avoid injure which can be caused by high-pressure pump.
Imported RGB color sensor technology is adopted to eliminate the disturbance of ambient light and achieve an accurate judgment.
A 8.0-inch LCD touch screen is intended to set distillation time, the amount of diluent, acid liquor and alkali. Such a human-computer interaction interface is easy to operate
Real-time display of titration curve, alerting users to the working condition at any time..
It possesses an all-stage warning system which alerts users to any abnormal working condition at any time.
Wireless network modules is installed, realizing remote data transmission, test data processing and test report printing.
ARM processor is adopted with built-in Flash chip, which is equipped with a file system, enabling users to create or delete folders or files and store 1000 routine data.
It is equipped with a miniprinter so that users can print experimental data according to their need.
| Parameter Name | Parameter | Parameter |
| Model | NKY6180 | NKY6160/NKY6160T |
| Measurement Range | 0.1-240mgN | 0.1-240mgN |
| Function | 1.Automatic test module of conventional Nitrogen. | |
| 2.Automatic test module of Nitrate Nitrogen | ||
| 3.Automatic test module of high Nitrogen | ||
| Recovery Rate(%) | ≥99.5% | ≥99.5% |
| Distillation Time | 3-8min/sample | 3-8min/sample |
| Sample | Solid≤5g liquid≤25ml | Solid≤5g liquid≤25ml |
| Distillation Mode | Double distillation mode | Double distillation mode |
| Condensate Water Consumption | ≥1.5L/min | ≥1.5L/min |
| Distillation Power | 375W-1500W | 375W-1500W |
| Titation precision | 0.0125 |
0.2 |
| Repeatability | RSD≤0.3% | RSD≤0.5% |
| Stored record | 30000 | 10000 |
| Automatic Function | Automatic sample dilution, addition of acid and alkali, distillation, reaction cup emptying and cleaning; auto correction, calculation and printing. Several conventional methods are equipped. | |
| Result Determination | Determined by the terminal color | Determined by the terminal color |
| Safety Protection Function |
1.Level alarm system 2.Alarm system monitoring the temperature of vapor generator 3.Flow sensor monitors the whole process with the flow velocity be adjusted freely. 4.Temperature measurement of distillate 5.Acid and alkali resistant polymer composite materials used for the cabient |
|
| Optical sensor | RGB programmable optical sensing technology | RGB programmable optical sensing technology |
| Display mode | 8.0-inch LCD touch screen | 8.0-inch LCD touch screen |
| Titration mode | Imported high-precision micro-metering pump | |
| Way of distillation | Distillation and titration are carried out simultaneously | Distillation and titration are carried out simultaneously |
| Steam flow | adjustable | adjustable |
| Operating Ambient Temperature | 10℃-35℃ | 10℃-35℃ |
| Water-cooling Device | Circulatory condensate system | / |
| Language | Chinese/English | Chinese/English |
| Power | AC220V AC±10% 50Hz | AC220V AC±10% 50Hz |
| Rated Power | 1500W | 1500W |
| External Dimension | 360x460x680 | 360x460x680 |
| Communication Mode |
Network Interface RS232 interface/usb interface |
(Enhancement Mode) Network Interface RS232 interface/usb interface |
| Weight | About 20kg | About 20kg |

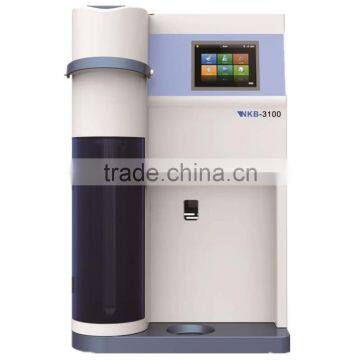

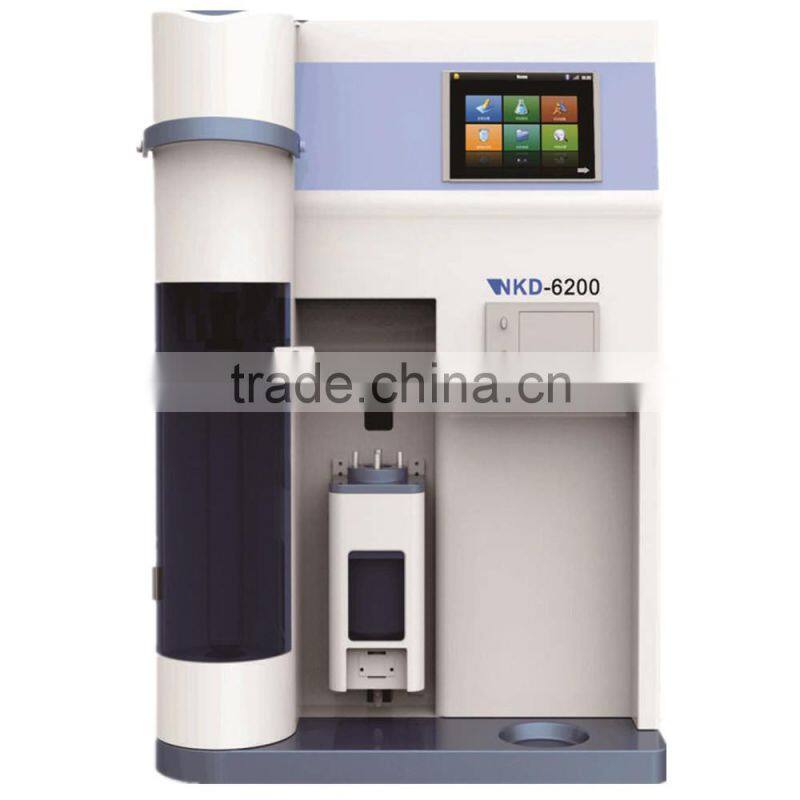

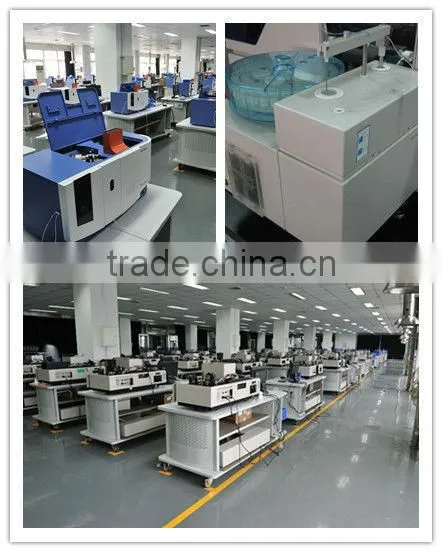

Picture of Automatic Kjeldahl Nitrogen Analyzer
