Product Description

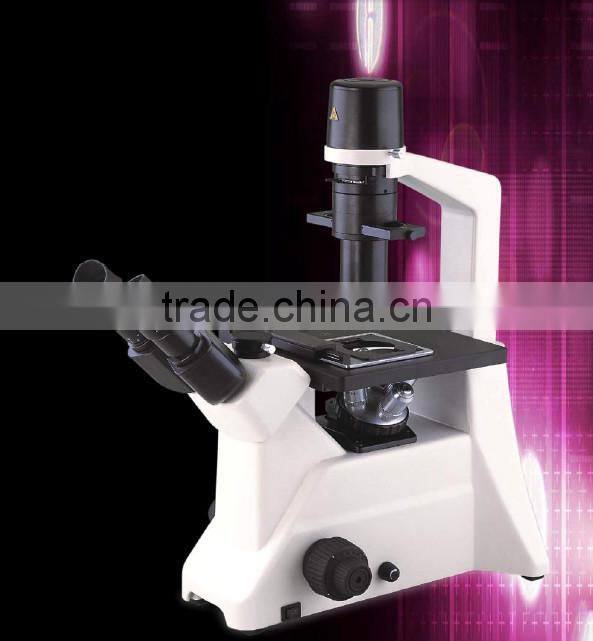

AE-IM100/200 Series Inverted Microscope
Technical Specifications:
| Item | Specifications |
AE-IM100 |
AE-IM200 |
Main body |
* | * | |
| Eyepiece | WF10×/20mm |
** | ** |
WF16×/13mm |
# # |
** |
|
|
10X Article Eyepiece (0.1mm) |
# | * |
LWD Plan Objective |
LPL 2.5×/0.07 W.D.=29.7mm |
# |
# |
LPL 4× /0.10 W.D.=17.5mm |
# | * | |
LPL10×/0.25 W.D.=7.9mm |
* | # | |
LPL25×/0.40 W.D.=5.0mm |
* | * | |
LPL40×/0.65 W.D.=3.0mm |
* | * | |
Annular Spot 10× |
# |
* | |
Annular Spot 25× |
* | * | |
Annular Spot 40× |
# |
* | |
Condenser N.A.0.35 (W.D. 45/102mm) |
* | * | |
|
Seidentopf Trinocular Head: Inclined 45° Both 100 (binocular tube) : 0 (photo tube) and 20 (binocular tube) : 80 (photo tube) |
* | * | |
|
Mechanical Stage Stage Size: 206 (X) × 170 (Y) mm moving range: 71(X)×77(Y)mm |
* | * | |
|
Mechanical stage available for 96 holes plate, Stage Size: 206 (X) × 170 (Y) mm, moving range: 128(X)× 80(Y)mm |
# | # | |
65mm Culture Dish Holder |
# | # | |
54mm Culture Dish Holder |
# |
# | |
35mm Culture Dish Holder |
# | # | |
Filter (Blue, Green) |
* |
* | |

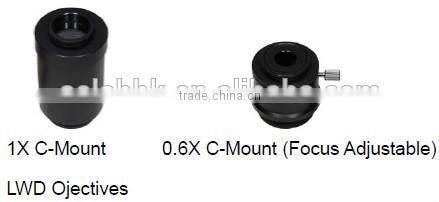

1× C-mount |
# | * | |
0.6× C-mount (focus adjustable) |
# | # | |
6V/20W Halogen lamp (G4,Philips) |
* | * | |
Micrometer (0.01mm) |
# | # | |
Note: " * "In Table Is Standard outfits, " # " Is Optional Accessories.
Packing Size: 586mm X 586mm X 380mm
Gross Weight: 15 kgs
Net Weight: 11 kgs
Objective Specifications (mm)
| Objective | N.A. | Working Distance | |
LWD Plan Objective |
LPL 2.5× |
0.07 | 29.7 |
LPL 4× |
0.10 | 17.5 | |
LPL10× |
0.25 | 7.9 | |
LPL25× |
0.40 | 5.0 | |
LPL40× |
0.65 | 3.0 | |
LWD Plan Phase Contrast Objective |
LPL Ph+ 10× |
0.25 | 7.9 |
LPL Ph+ 25× |
0.40 | 5.0 | |
LPL Ph+ 40× |
0.65 | 3.0 |

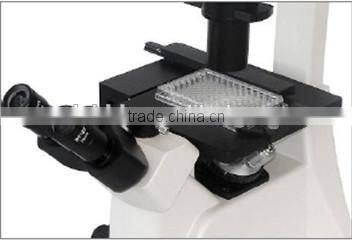

96 Holes Mechanical Stage and accessories:
Large Stage: 206 (X) × 170 (Y) mm
Mechanical stage available for 96 holes plate, moving range: 128(X)×80(Y)mm
Knob can be changed by left or right, convenient for all users
More Detailed Information & Packing & Shipping
Packing: Standard Export package
Shipping: By Sea, Air or Air-express
Delivery time: within 10-15 days after received the payment.
Warranty: 1 year
