Product Description

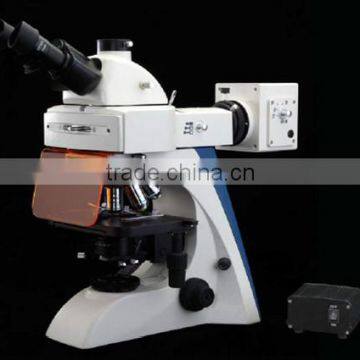

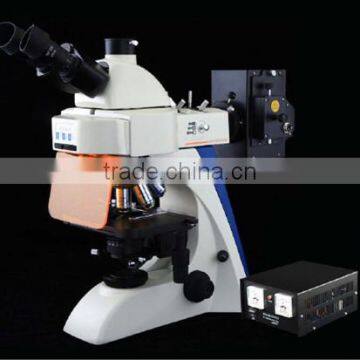

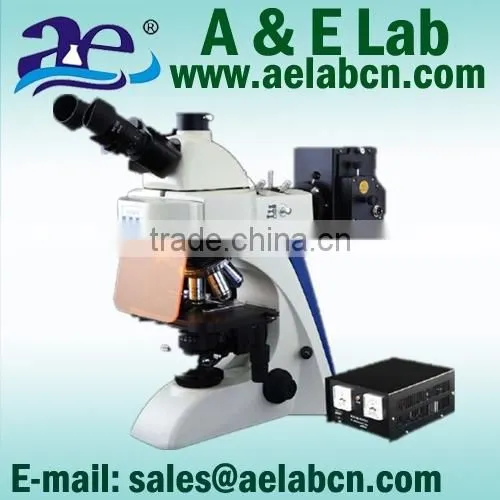

AE-FM Series Fluorescence Microscope
Technical Specifications:
| Item | Specifications |
AE-FM2 |
AE-FM4 |
| Eyepiece | WF10×/20mm |
** | ** |
WF10×/20mm(Reticule 0.1mm,reticle) |
# |
# | |
|
WF16× |
# # | # # |
| Infinity Plan Achromatic Objectives | PLAN 4×/0.10 |
* |
* |
PLAN 10×/0.25 |
* | * | |
PLAN 20×/0.40(s) |
* | * | |
PLAN 40×/0.66(s) |
* | * | |
PLAN 100×/1.25(s,oil) |
* | * | |
PLAN 2.5×/0.07 |
# | # | |
PLAN 60×/0.80(s) |
# | # | |
Observing tube |
Seidentopf Binocular Head |
# |
# |
Seidentopf Trinocular Head |
* | * | |
Nosepiece |
Inward Inclined positional quintuple nosepiece |
* |
* |
| Stage |
Mechanical stage |
* | * |
Condenser |
Abbe N.A.1.25 |
* | * |
Swing out achromatic condenser,N.A.0.9/0.13 |
# | # | |
Illumination device |
6V/20W halogen (wide range input voltage:100V~240V) |
* | * |
|
6V/30W halogen (wide range input voltage:100V~240V) |
# | # | |
3W-LED cold light illumination |
# |
# | |
| Filter | blue(optional : yellow, green, gray) |
* | * |
C-mount |
1×C-Mount (apply to digital camera) |
# |
# |
0.57×C-Mount (apply to camera system) |
# | # | |
Adaptor for digital camera |
Apply to CANON/NIKON/OLYMPUS etc |
# | # |
Fluorescence Attachment |
Epi fluorescence unit(B,G,Uv,V) |
* | |
Epi fluorescence unit(B,G) |
* | ||
100W mercury lamp house |
* | * | |
100Wmercury power source(optional: pointer or digital) |
* | * | |
|
Centering objective |
* | * |
3W-LED Epi fluorescence unit(B,G) |
# |
More Detailed Information & Packing & Shipping
Packing: Standard Export package
Shipping: By Sea, Air or Air-express
Delivery time: within 10-15 days after received the payment.
Warranty: 1 year
