Product Description

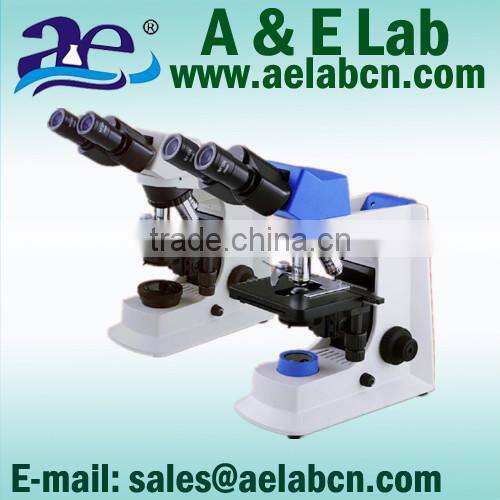

AE-S Series Biological Microscope

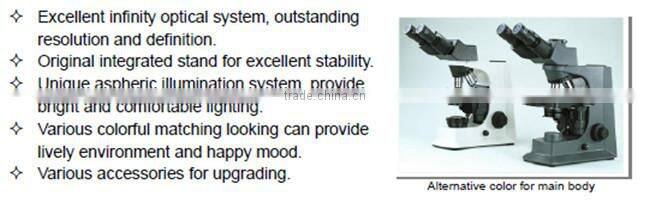

Features:
< Excellent infinity optical system, outstanding resolution and definition.
< Original integrated stand for excellent stability.
< Unique aspheric illumination system, provide bright and comfortable lighting.
< Various colorful matching looking can provide lively environment and happy mood.
< Various accessories for upgrading.
Technical Specifications:
| Item | Specifications | AE-S101 | AE-S102 | AE-S103 |
| Eyepiece | WF 10×-18 mm | ** | ||
WF 10X-20 mm | ** | ** | ||
WF 16X-13 mm | ## | ## | ## | |
Reticule Eyepiece WF 10X-18 mm (0.1mm) | # | # | # | |
Reticule Eyepiece WF 10X-20 mm (0.1mm) | # | # | # | |
Achromatic Objective | 4x | * | ||
10x | * | |||
40×(S) | * | |||
100×/1.25 (Oil) (S) | * | |||
| 20x | # | |||
60× (S) | # | |||
Plan Objective | 4x |
| * | |
10x | * | |||
40×/0.65 (S) | * | |||
100×/1.25 (Oil) (S) | * | |||
| 20x | # | |||
60× (S) | # | |||
Infinity E-Plan Objectives | 4x | * | ||
| 10x | * | |||
| 40×(S) | * | |||
| 100× (Oil) (S) | * | |||
| Plan 20x | # | |||
| Plan 60x (S) | # | |||
Seidentopf Binocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance 50-75mm | * | * | * |
Seidentopf Trinocular Head | Inclined 30°,Rotatable 360°, Interpupilary Distance 50-75mm, Light Distribution: 20:80 | # | # | # |
| Nosepiece | Quadplex | * | * | * |
Mechanical Stage | Coaxial Coarse and Fine Focusing Knobs | * | * | * |
| Mechanical Stage | Stage Size: 145X140mm Travel: 76mmX52mm, Scale: 0.1mm Coaxial Coarse and Fine Focusing Knobs Travel Range: 26mm, Scale: 2um Two Slide Holder | * | * | * |
Condenser | Abbe N.A. 1.25(Iris Diaphragm) | * | * | * |
Illumination | 6V/20W Halogen Lamp | * | * | * |
6V/30W Halogen Lamp | # | # | # | |
3W-LED Illumination Systems (non-rechargeable) | # | # | # | |
0.3W-LED Illumination Systems (Rechargeable) | # | # | # | |
Field Diaphragm | # | # | # | |
Dark Field Unit | N.A.0.9 (Dry) | # | # | # |

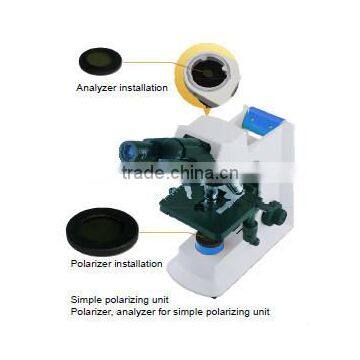

Polarizing Attachment | Analyzer / Polarizer | # | # | # |

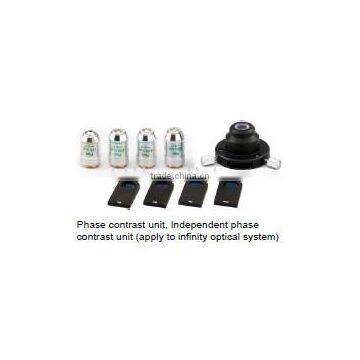

| Independent phase contrast unit | 10X /20X /40X /100X | # | ||

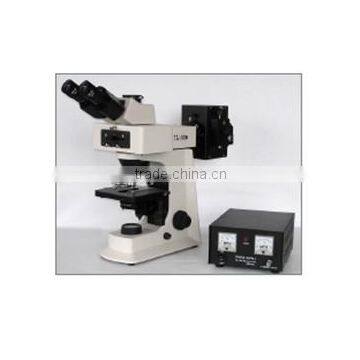

| Fluorescence unit | Epi Fluorescence unit (three-hole slide) (B,G, 100W mercury lamp ) | # | # | # |
| Filter | Blue | * | * | * |
Green | # | # | # | |
Yellow | # | # | # | |
C-mount | 0.47X (Focus adjustable) | # | # | # |
| 1X | # | # | # | |
| Mirror | # | # | # | |
| Wire winding device | # | # | # |
Note: " * "In Table Is Standard outfits, " # " Is Optional Accessories.
Packing Size: 420mm×275mm×450mm
Gross Weight: 7.5 kgs
Net Weight: 6.5 kgs
More Detailed Information & Packing & Shipping
Packing: Standard Export package
Shipping: By Sea, Air or Air-express
Delivery time: within 10-15 days after received the payment.
Warranty: 1 year
