Product Description

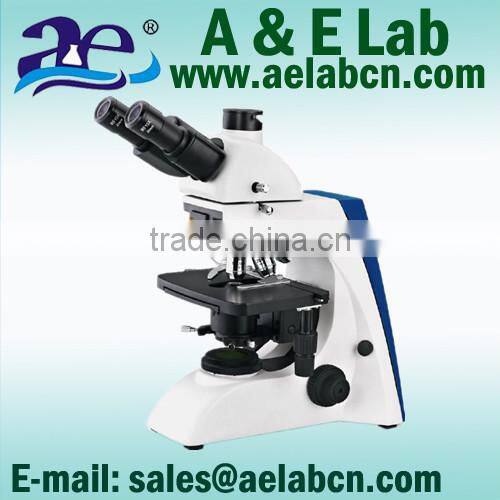

AE-BK Series Biological Microscope
Technical Specifications:
| Item | Specifications |
AE-BK101 |
AE-BK102 |
| Eyepiece | WF 10×-18 mm |
** | # # |
WF 10×-20 mm |
# # |
** | |
WF 16×-13 mm |
# # |
# # | |
WF 10×-18 mm ( 0.1mm) |
# | # | |
WF 10×-20 mm ( 0.1mm) |
# | # | |
Plan Objective |
4×/0.10 |
* |
|
10×/0.25 |
* | ||
40×/0.65 (S) |
* | ||
100×/1.25 (Oil) (S) |
* | ||
20×/0.40 |
# | ||
60×/0.80(S) |
# | ||
Infinity Plan Objectives |
4×/0.10 |
* | |
10×/0.25 |
* | ||
20×/0.40 |
* | ||
40×(S) /0.66(S) |
* | ||
100×/1.25(Oil) (S) |
* | ||
2.5×/0.07 |
# | ||
60×/0.80(S) |
# | ||
Seidentopf Binocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance 50-75mm |
* | |
| Trinocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance 50-75mm, Light Distribution: 20:80 |
# |
# |
| Nosepiece | Quadplex |
* | # |
Quintuple |
# | * | |

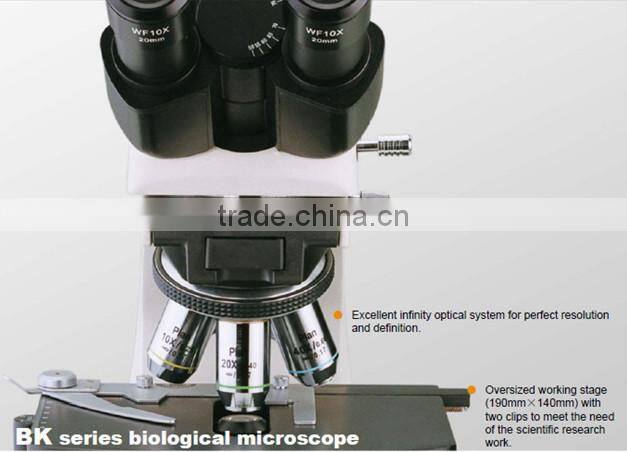

| Mechanical Stage |
Stage Size: 190X140mm,Travel: 78mm×55mm Coaxial Coarse and Fine Focusing Knobs Two Slide Holder |
* | * |

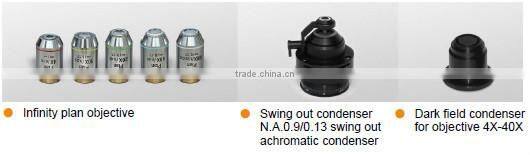

Condenser |
Abbe N.A. 1.25(Iris Diaphragm) |
* | * |
Swing out condenser N.A.0.9/0.13 |
# | # | |
| Koehler Illumination | 6V/20W Halogen Lamp |
* | * |
|
6V/30W Halogen Lamp |
# | # |
| 3W-LED Illumination | # | # | |

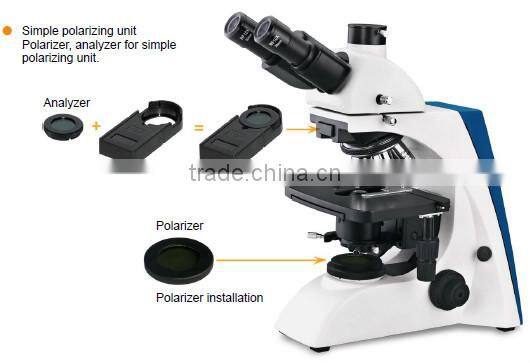

Polarizing Attachment |
Analyzer / Polarizer |
# | # |

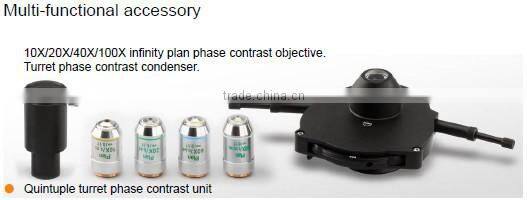

Phase Contrast Unit |
Quintuple hole turret 10×/20×/40×/100× phase contrast objective |
# | |
|
Independent slot 10×/20×/40×/100× phase contrast objective |
# | ||
Dark Field Unit |
N.A.0.9 (Dry) |
# | # |
C-mount |
1× |
# |
# |
0.57× (Focus adjustable) |
* | * | |

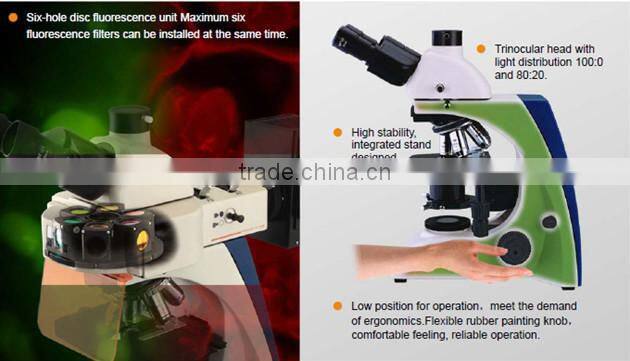

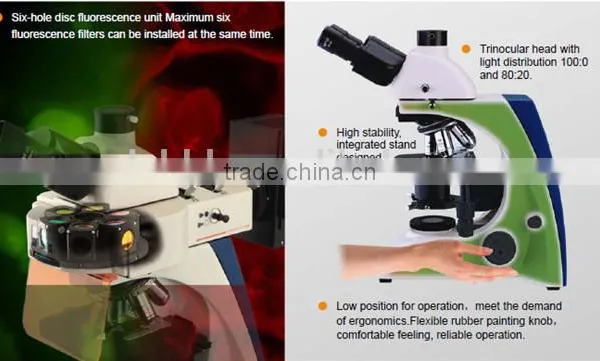

Fluorescence Attachment |
Epi Fluorescence unit ( six-hole disc,U/V/B/G) |
# | # |
Epi Fluorescence unit (three-hole slide,B/G) |
# |
# | |
Field Diaphragm |
* | * | |
| Blue | * | * | |
| Green | # | # | |
| Amber | # | # |
Note: “ * ”In Table Is Standard Attachment. “ # ” Is Optional Accessories
Packing Size: 565mm × 310mm × 410mm
Gross Weight: 12 kgs
Net Weight: 10 kgs
More Detailed Information & Packing & Shipping
Packing: Standard Export package
Shipping: By Sea, Air or Air-express
Delivery time: within 10-15 days after received the payment.
Warranty: 1 year
