Product Description

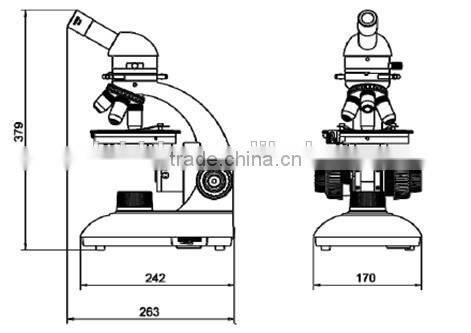

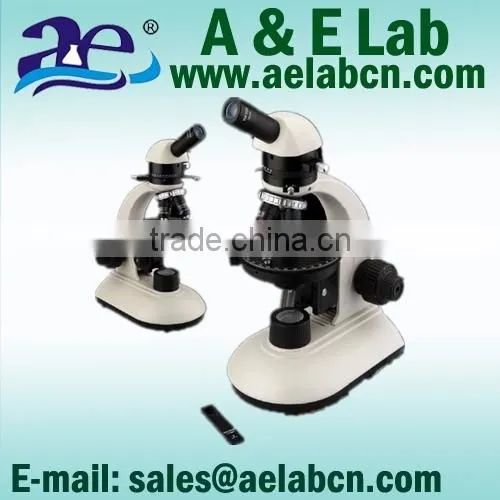

AE-PM100 Polarizing Microscope
Technical Specifications:
| Item | Specifications | AE-PM100 |
| Eyepiece | WF 10x-18mm (Cross, Reticule 0.1mm) | * |
WF 16×-13mm | # | |
Non-stress Achromatic Objective | 4x | * |
10x | * | |
40x (S) | * | |
20x | # | |
60x (S) | # | |
Mono Head | Inclined 30°, Rotatable 360° | * |
Nosepiece | Quadplex | * |
Analyzer Unit | 0-90°,It can be moved out of the optical path for single polarizing observe. | * |
Bertrand Lens | It can be moved out of the optical path. | * |
λ Slip | First Class Red | * |
1/4λ Slip |
| * |
Quartz Wedge | (Ⅰ- IV Class) | # |
Revolving Round Stage | Rotatable 360°, Division 1°, Vernier division 6°,can be locked. | * |
Polarizing Attached Mechanical Stage | # | |
Condenser | Abbe N.A. 1.25 | * |
Polarizing Unit | It can be moved out of the optical path. | * |
Illumination | 6V/20W Halogen Lamp | * |
LED Lamp | # | |
Note: " * "In Table Is Standard outfits, " # " Is Optional Accessories.
More Detailed Information & Packing & Shipping
Packing: Standard Export package
Shipping: By Sea, Air or Air-express
Delivery time: within 10-15 days after received the payment.
Warranty: 1 year
