Product Description

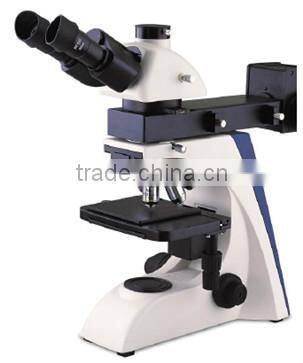

AE-MMT100/200 Metallurgical Microscope
Technical Specifications:
| Item | Specifications |
AE-MMT100 |
AE-MMT200 |
| Eyepiece | WF10×-18mm |
* | * |
Reticule Eyepiece WF 10×-18 mm (0.1mm) |
* |
* |
|
WF5× |
# |
# |
|
WF12.5× |
# | # |
|
WF16× |
# | # |
|
|
Long Working Distance Infinity Plan Objective (no cover glass) |
5×/0.11 W.D=12.10mm |
* | * |
10×/0.25 W.D=4.75mm |
* | * | |
20×/ 0.4 (S) W.D=2.14mm |
# | # | |
40×/0.65 (S) W.D=0.45mm |
# | # | |
Seidentopf Binocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance: 50 -75mm |
* | * |
Seidentopf Trinocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance: 50 -75mm Light Distribution: 80:20 |
# | # |
Nosepiece |
Quadplex |
* | * |
Mechanical Stage |
Stage Size: 200×140mm, Travel : 76mm×52mm Coaxial Coarse and Fine Focusing Knobs |
* | * |
Reflection Illumination |
6V/20W Halogen Lamp |
* | |
6V/30W Halogen Lamp |
* | ||
Filter |
Five-hole filter unit(blue, green, amber, grey, empty) |
* | * |
Polarizing Attachment |
Analyzer/ Polarizer |
# | |
C-mount |
1× |
# | # |
0.47× (Focus Adjustable) |
# | ||
0.5X (Focus Adjustable) |
# |
Note: " * "In Table Is Standard outfits, " # " Is Optional Accessories.
AE-MMT100 Packing Size: 565mm×310mm×410mm Gross Weight: 9 kgs Net Weight: 6 kgs
AE-MMT200 Packing Size: 570mm×275mm×450mm Gross Weight: 10.5 kgs Net Weight: 8 kgs
More Detailed Information & Packing & Shipping
Packing: Standard Export package
Shipping: By Sea, Air or Air-express
Delivery time: within 10-15 days after received the payment.
Warranty: 1 year
