Product Description

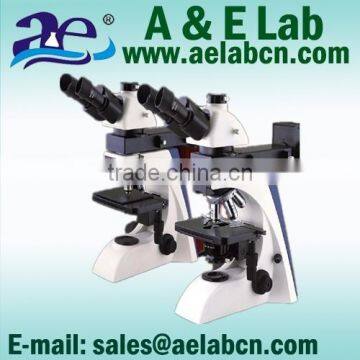

AE-MMT Series Metallurgical Microscope
Technical Specifications:
| Item | Specifications |
AE-MMT300 |
AE-MMT500 |
| Eyepieces | WF10×-18mm |
** | ** |
WF10X -18 mm (Reticule 0.1mm) |
* |
* |
|
WF5× |
# # |
# # |
|
WF12.5× |
# # | # # |
|
|
Infinity Plan Objective (no cover glass) |
5×/0.11 W.D=12.10mm |
* | * |
10×/0.25 W.D=4.75mm |
* | * | |
20×/ 0.4 (S) W.D=2.14mm |
# | # | |
40×/0.65 (S) W.D=0.45mm |
# | # | |
100X/1.25 (Oil) (S) W.D= 0.12mm |
# | # | |
|
Long Working Distance Infinity Plan Objective (no cover glass) |
20X/0.4 (S) W.D= 8.35mm |
* | * |
40X/0.65 (S) W.D= 3.90mm |
# | # | |
50X/0.7 (S) W.D= 1.95mm |
* | * | |
80X/0.80 (S) W.D= 0.85mm |
# | # | |
Seidentopf Binocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance: 50 -75mm |
* | * |
Seidentopf Trinocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance: 50 -75mm Light Distribution: 0:100 |
# | # |
Nosepiece |
Quadplex |
* | * |
|
Mechanical Stage For Reflection Illumination |
Stage Size: 200X140mm, Travel: 78mmX55mm Stage Fast Lowing Unit: Stage Up-Down moving range can be 50mm (Max.) |
* | |
|
Mechanical Stage For Transmission Illumination |
Stage Size: 190X140mm, Travel: 78mmX55mm Coaxial Coarse and Fine Focusing Knobs |
* | |
Stage Plate |
Place The Sample on The Plate |
* | * |
| Clip | * | ||
| Glass Plate | # | ||
| Stage Micrometer | 0.01mm | # | # |

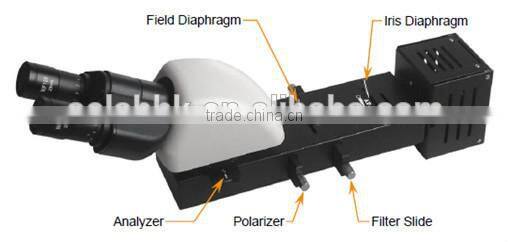

Polarizing Unit |
Polarizing /Analyzer Slide |
* | * |
Condenser |
Abbe N.A. 1.25(Iris Diaphragm) |
* | |
Illumination |
12V/50W Halogen Lamp (Reflection Illumination) |
* | * |
6V/20W Halogen Lamp (Transmission Illumination) |
# | * | |
6V/30W Halogen Lamp(Transmission Illumination) |
# | # | |
Field Diaphragm |
* | ||
Filter |
Blue |
# | * |
Green |
# | # | |
Yellow |
# | # | |
C-mount |
1× |
# | # |
0.57X (Focus Adjustable) |
# | # |
Note: " * "In Table Is Standard outfits, " # " Is Optional Accessories.
Packing Size: 750mm×360mm×450mm
Gross Weight: 16 kgs
Net Weight: 12 kgs
More Detailed Information & Packing & Shipping
Packing: Standard Export package
Shipping: By Sea, Air or Air-express
Delivery time: within 10-15 days after received the payment.
Warranty: 1 year
