NANO Drop

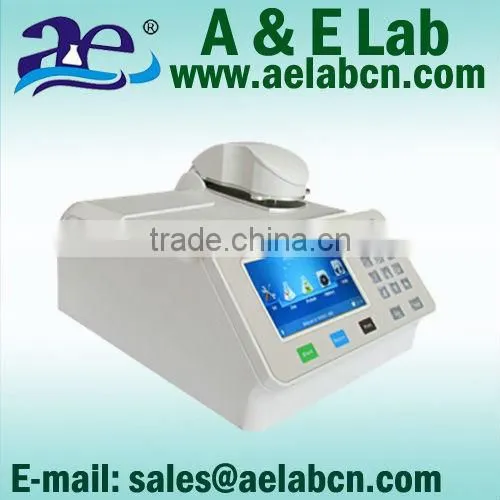

AE-NANO200 is a Micro-volume UV Vis Spectrophotometer and Nucleic Acid Analyzer designed for
analyzing the concentration and pure of Nucleic Acid (DNA/RNA). Simply pipette 0.5~2ul sample onto the
pedestal, laying down the sampling arm, AE-NANO200 can automatically complete the measurement
within 5 seconds.
Features:
*Direct, easy measurements in less than 5 seconds.
*Require only 0.5~2ul samples.
*No cells or cuvettes and no warm up.
*Optional data output via built-in printer, SD-RAM Card, USB memory.
*Touch screen and panel operation, without computer.
*No dilutions for samples.
Detailed Product Description:
1. Wavelength range: 230nm,260nm,280nm;
2.Delivery Time:Within 10 days after received the payment;
3.With English User's Manual,English Control Panel;
4.Warranty:1 year.
Technical Specifications:
Model |
AE-Nano200 |
Wavelength Range |
230nm, 260nm, 280nm |
Minimum Sample Size |
0.5~2.0ul |
Path Length |
0.2mm (For high concentration measurement) 1.0mm (For ordinary) |
Light Source |
Xenon flash lamp |
Absorbance Precision |
0.003 Abs |
Absorbance Range |
0.02 - 80 (10 mm equivalent) |
Detects Nucleic acid up to |
10~5000ng/ul (dsDNA) |
Detects Protein up to |
0.1mg/ml~100mg/ml |
Measurement Time |
< 5s |
Dimensions (W x D x H)mm |
210 x 280 x 166 |
Sample Pedestal Material |
Aluminum alloy and Quartz fiber |
Operating Voltage |
12V DC |
Operating Power Consumption |
12 - 18 W |
Packing List
AE-Nano200 Packing List | |
Description |
Quantity |
Micro-Spectrophotometer |
1Unit |
Power Adaptor |
1Unit |
USB Connector Line |
1PC |
Mouse |
1PC |
Touch Pen |
1PC |
Printing Paper |
2 Rolls |
Manual |
1PC |
Warranty Certificate |
1PC |
Approved Certificate |
1PC |
