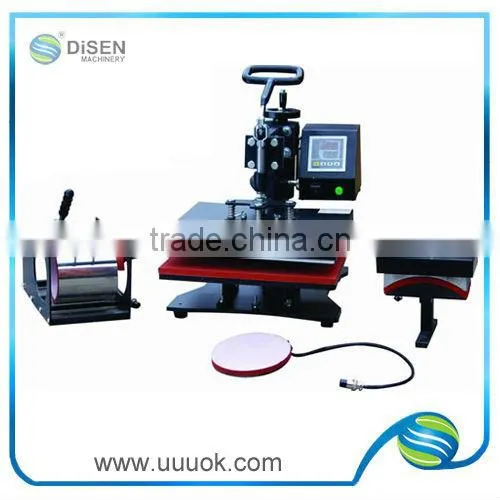

4 in 1 Combo Heat Press Machine

Guangzhou Disen Science Technology Co., Ltd.
4 in 1 Combo Heat Press Machine thumbnail-1
4 in 1 Combo Heat Press Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Gravure
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Plate Type Gravure
Place of Origin Guangdong, China
Brand Name Disen
Model Number DS-C-4 in 1
Usage Paper Printer
Automatic Grade Semi-Automatic
Voltage 220V/110V, 220V/110V
Gross Power 280W
Dimensions(L*W*H) 470*460*480mm
Weight 35kg, 35kg
Certification CE Certificate
After-sales Service Provided Engineers available to service machinery overseas

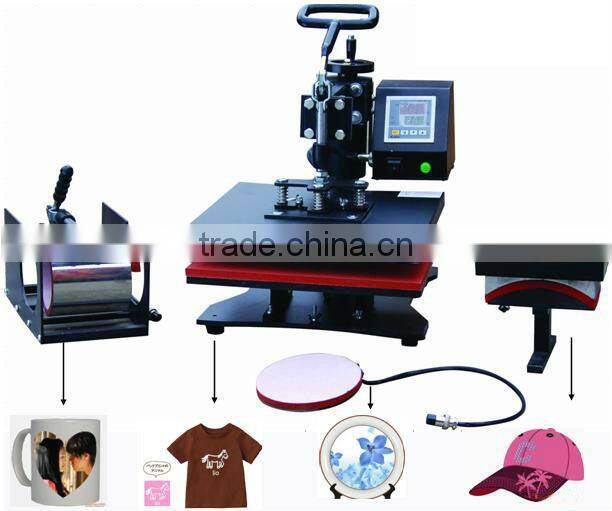

4 in 1 combo heat press machine

4 in 1 combo heat press machineCustomer First  Service First



 Features and Description:

1.The machine is multifunctional one machine, you can bake cups, oven, heat transfer, baking plate, hot caps, and can expand the other heating components,

2.Can lift 180degree rotation, easy to extract, and a certain thickness of the transfer of goods;

3.Host different functions designed to facilitate the replacement of the transfer components quickly and easily without tools.

4.The normal metal heating plate heating is 180-200C is usually 15-20 seconds,for the pattern printed on the ceramic items are the temperature 180-200C, time Setting around 300-500 seconds,if Print on fabrics, when the temperature setting is generally 150-180C, time setting is around 20-40 seconds.

5.Interchangeable accessories for multi-purpose heat press.

6.Fully digital temperature control,automatic digital timer, convenient and safe to use, 3-months heaters warranty, 1-year machine warranty lifetime services available.



Accessories:

Diameter 7.5~9cm mug heater

Diameter 11cm plate heating part

Diameter 15cm plate heating part 30*38cm heating mat

Description:

Weight:35Kg

Packing: carton

Dimension:30*38cm

Voltage:220V, 110V;

Color: white and black

Package Size:470*460*480mm





4 in 1 combo heat press machineCustomer First Service First



4 in 1 combo heat press machine

4 in 1 combo heat press machine

4 in 1 combo heat press machine



4 in 1 combo heat press machine

4 in 1 combo heat press machine

4 in 1 combo heat press machine





4 in 1 combo heat press machine





4 in 1 combo heat press machineCustomer First Service First



4 in 1 combo heat press machine

Operation Procedures:

Taking the white cotton cloth as an example
A. Mirror print your picture on light sublimation paper with normal ink
B. Hold up the press handle, open the heat board
C. Instruction light will be on
D. Switch power on
E. Adjust the temperature controller on the left side.(The three buttons indicate ones place, tens place, hundreds place from left to right side),press + or – to adjust appropriate heating temperature-180°C, time needed approx. 10 minutes to reach 180°C;(Heating temperatures depends on materials, please request for the standard temperature information)
F. Adjust time controller on the right to the appropriate heating time 30 seconds(The heating time depends on the materials)
G. The machine will keep the constant temperature status when reaching the setting temperature
H. Put the cloth on the silica gel board holder, put the picture facing the cloth for heat transferring,press down the heat board and the timer counts automatically. Note:Too heavy pressure may cause the handle transformed. Must adjust the pressure ahead of operation.
I. While time up,the buzzer warns automatically. Swift the power off, hold up the press handle,take out the cloth and tear out the picture paper right away.



Taking the black cotton cloth as an example:
A. Print your picture on dark sublimation printing paper with normal ink
B. Hold up the press handle, open the heat board
C. Instruction light will be on
D. Switch power on
E. Adjust the temperature controller on the left side to adjust appropriate heating temperature-180°C, time needed approx. 8 minutes to reach 180°C
F. Adjust time controller on the right to the appropriate heating time 30 seconds
G. The machine will keep the constant temperature status when reaching the setting temperature
H. Put the cloth on the silica gel board holder, put the picture facing the cloth for heat transferring, then put the adiabatic paper / cloth onto the picture, press down the heat board and the timer counts automatically
I. While time up,the buzzer warns automatically. Swift the power off, hold up the press handle,take out the cloth and take away the adiabatic paper 30 seconds later ( for adiabatic cloth, can take away immediately and no need to wait ) Make sure to take the material out from the machine once finish working.



For metal material board, the heating temperature should be approx. 170-200°C,the heating time around 60 seconds;For ceramic board, the heating temperature should be approx. 200-220°C,the heating time around 60 seconds; For the fabric, the heating temperature should be approx. 120-140°C,the heating time around 5-10 seconds. Please take the below information for example:



Thermal Sublimation Printing Time and Temperature

Article

Printing Material

Temperature

Time

(second)

Remark

1.Ceramic

Sublimation ink, normal photo print paper (or sublimation paper)

220

60

1. Mirror print the picture

2. Count the time when reach constant temperature

3. Stick the picture on the ceramic properly

4. Put the ceramic on the holder horizontally

5. Adjust low pressure to avoid broken of the ceramic

2. Pearl Metal Board

Sublimation ink, normal photo print paper (or sublimation paper)

180

60

1. Mirror print the picture

2. Count the time when reach constant temperature

3. The temperature should not be too high

4. Tear away the film on the cover before heat transferring and then put the pearl metal board on the holder horizontally

5. Adjust high pressure

3. Metal Catch Lock

Sublimation ink, normal photo print paper (or sublimation paper)

180

60

1. Mirror print the picture

2. Count the time when reach constant temperature

3. Stick the picture on it as close as you can

4. Tear away the film on the cover before heat transferring

5. Adjust high pressure

4. Half Cotton Light Color T-shirt

Sublimation ink, normal photo print paper (or sublimation paper)

180-190

120-130

1. Mirror print the picture

2. Count the time when reach constant temperature

3. Only for light color, half cotton T-shirt

4. High pressure

5. Half Cotton Dark Color T-shirt

Sublimation ink, normal photo print paper (or sublimation paper)

180-190

120-130

1. Print the picture

2. Count the time when reach constant temperature

3. Only for dark color, half cotton T-shirt

4. High pressure

6. Pure Cotton Light Color T-shirt

Sublimation paper, normal ink

180-190

30

1. Mirror print the picture

2. Count the time when reach constant temperature

3. Only for pure cotton Light Color T-shirt

4. High pressure

7. Pure Cotton Dark Color T-shirt

Sublimation paper, normal ink

180-190

30

1. Print the picture

2. Count the time when reach constant temperature

3. Only for pure cotton Dark Color T-shirt

4. High pressure

8. Shell Necklace Ring

Sublimation ink, normal photo print paper (or sublimation paper)

180

60

1. Mirror print the picture

2. Count the time when reach constant temperature

3. Stick the picture on it as close as you can

4. High pressure

9.Imitative Ceramic Necklace Ring

Sublimation ink, normal photo print paper (or sublimation paper)

180

60

1. Mirror print the picture

2. Count the time when reach constant temperature

3. Stick the picture it as close as you can

4. High pressure



Accessories

(1)The Printer. Choose any normal Ink Jet photo printer and Epson series printer is recommended.
(2)To achieve the best quality of the photo printing, the following printer setting for your reference:
a.Choose the “Best Photo” and the “Photo Quality Ink Jet Paper” under “Main” as shown in figure b.Click “Advanced” under “Main” to achieve more setting as shown in figure 2.
c.Choose “Mirror Image” under “ Page Layout” as shown in figure 3 while printing photo for ceramic board and metal board, shell board and imitative ceramic necklace etc.

(3)The sublimation ink. Make sure to pull out the color soft plug on the top of the ink cartridges before putting them into the printer. The sublimation ink is easy to dry and better to furnish with one printer until the ink use up.
(4)Ink and printer maintenance.

(5)Photo printing. Select the image you need in the computer to print out. Make sure the pixel of the photo is more than 200 to achieve the better heat transferring effect. Please do not touch the printing side of the sublimation paper after printing within 1 minute.
(6)Ink leak. Take tissue to absorb the ink or need to get maintenance from Epson shops.
(7)The printed color is not matched with the original color of the photo. Clean the print head or change a new ink cartridge.
(8)One printer can fill with sublimation ink and normal photo printing ink. But the better way is only fill with one kind of ink in one printer.

4 in 1 combo heat press machine

Warranty and Maintenance:



1,One-year guarantee.
2,Pressure: Adjust pressure screw clockwise to increase the pressure, counter clockwise to decrease the pressure
3,Time: Check and adjust the position of the jiggle switch in the rear machine case if the buzzer not warn or keep warning when time is out.
4,If press the pressure handle,the handle would be spring back automatically, please adjust the adjusting screw downward. After finished the printing, the handle may be too heavy to hold up, please adjust the adjusting screw upward.
5,Please check the circuit while the heat board is not available after the machine was on several minutes.
6,The natural life of the Silica Gel Board is 10000 times working.
7,The natural life of the Heat Board is 10000 times working.
8,Please feel free to contact us without any delay if there is any problem in the quality.



Notice:
1. The machine must be connected with the ground wire!
2. Do not touch the heat board while heating!
3. Do not touch the heat board once finish working as time is needed to cool down.
4. Please keep children away from the machine!
5. Please use the heat insulation glove to pick the finished goods!





4 in 1 combo heat press machineCustomer First Service First

4 in 1 combo heat press machine

4 in 1 combo heat press machine
