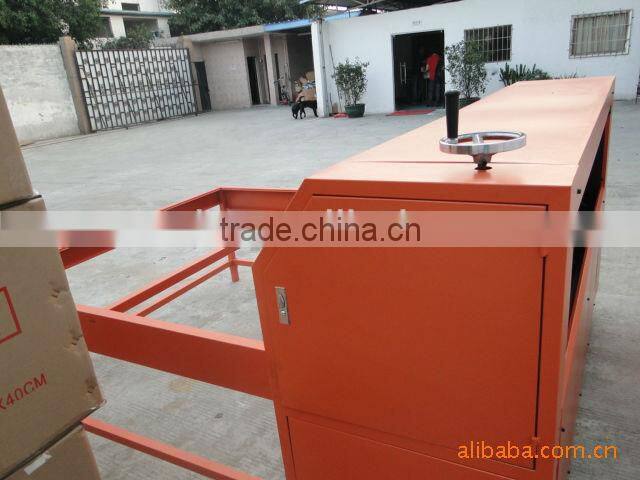

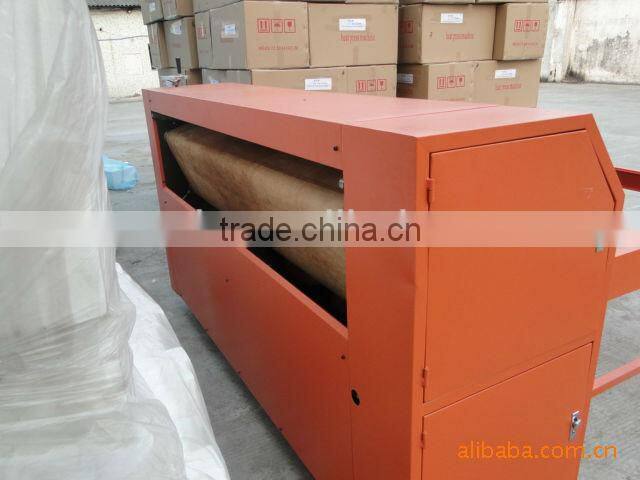

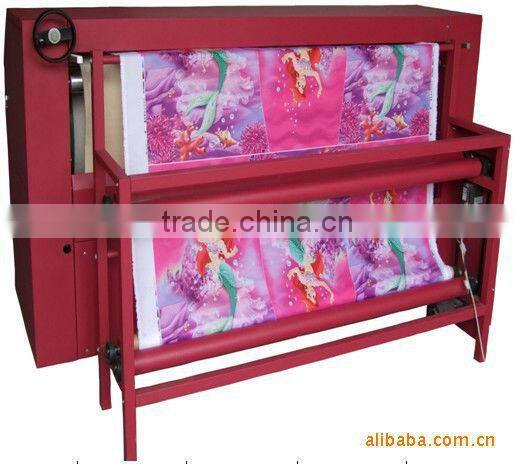

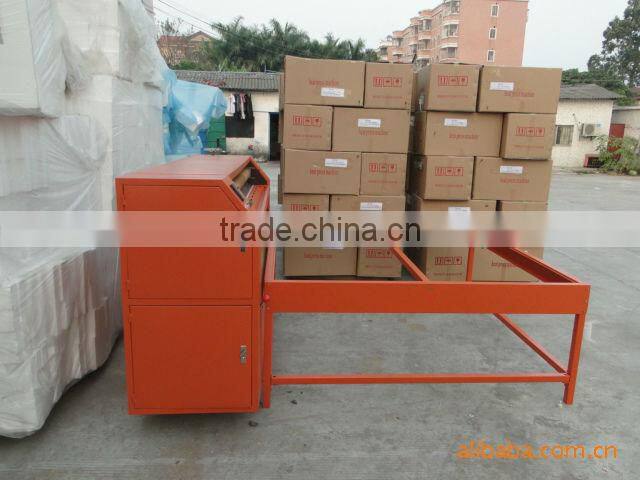

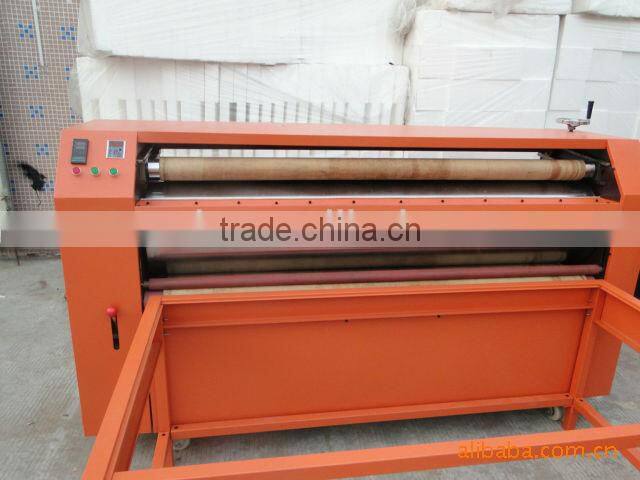

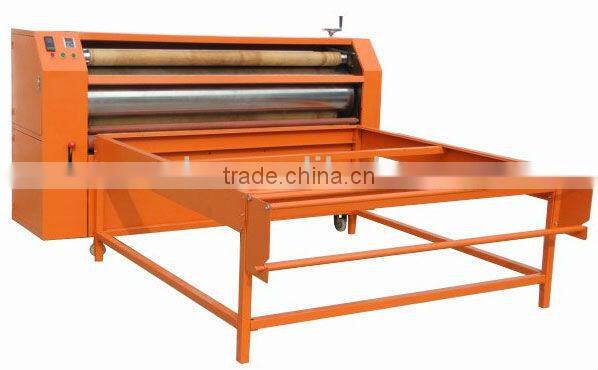

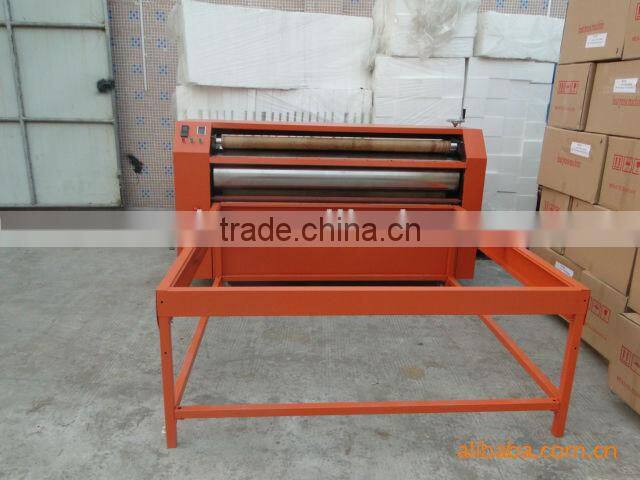

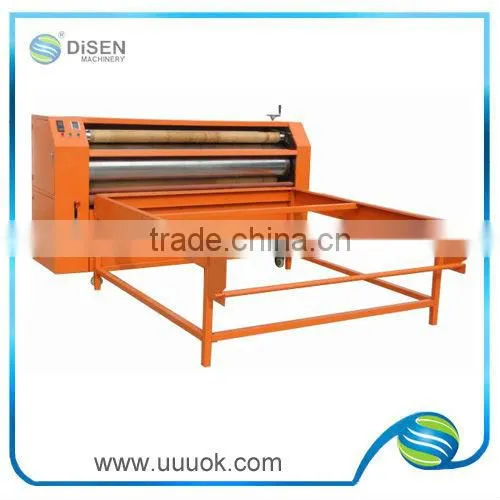

Large Format Sublimation Heat Press

Large format sublimation heat press
Specifications

This Roller Sublimation Transfer Machine is designed uniquely with advanced technology,high uniformity and stability

Large format sublimation heat press

 Large format sublimation heat press

 Large format sublimation heat press

 Large format sublimation heat press

 Large format sublimation heat press

 Large format sublimation heat press

 Large format sublimation heat press


Warranty and Maintenance:

1,One-year guarantee.
2,Pressure: Adjust pressure screw clockwise to increase the pressure, counter clockwise to decrease the pressure
3,Time: Check and adjust the position of the jiggle switch in the rear machine case if the buzzer not warn or keep warning when time is out.
4,If press the pressure handle,the handle would be spring back automatically, please adjust the adjusting screw downward. After finished the printing, the handle may be too heavy to hold up, please adjust the adjusting screw upward.
5,Please check the circuit w , hile the heat board is not available after the machine was on several minutes.
6,The natural life of the Silica Gel Board is 10000 times working.
7,The natural life of the Heat Board is 10000 times working.
8,Please feel free to contact us without any delay if there is any problem in the quality.

Our printing equipment is widely used in the textile and fabric products, ceramic products, metal products, thermal transfer printing or heat treatment. Suitable for stamping clothing, handbags, umbrellas, shoes, hats, crafts, gifts, advertising items. Foam Tang, the penetration of heat transfer, Symphony heat transfer sublimation the heat transfer, Flocking heat transfer, hot stamping heat press, swimsuit heat transfer, electronic technology image heat transfer, hot drilling, hot beads, hot glue transfer need to own stamping items.

1,The machine electrical control using the latest advanced technology imported components, automatic limit, accurate, safe, high reliability, long life;

2, oil heating heating plate adopt advanced technology thermal conductivity of liquid circulating heat evenly; the strong pneumatic thermal conductivity, labor-saving, time-saving, easy to operate.

3, substantially full time controller can accurately adjust to the desired time, fully electronic temperature controller, temperature error: ± 2 ° C ". Equipment, the overall structural stability, not easily deformed, smooth running, low noise.

4, automatic control, a smooth, even pressure, pressure up 8KG/CM. The table can be persuaded to switch between automatically run in hand. Using double-sided push-pull for effortless operation, the printing speed.

5, the heating plate aluminum full gold fever tube casting as one heating device heating speed, 20 minutes up to 200 ° C, the temperature uniformity, insulation, energy saving. The transfer area undertake large models billboards and Indian painting Pack.

Notice:
1. The machine must be connected with the ground wire!
2. Do not touch the heat board while heating!
3. Do not touch the heat board once finish working as time is needed to cool down.
4. Please keep children away from the machine!
5. Please use the heat insulation glove to pick the finished goods!
