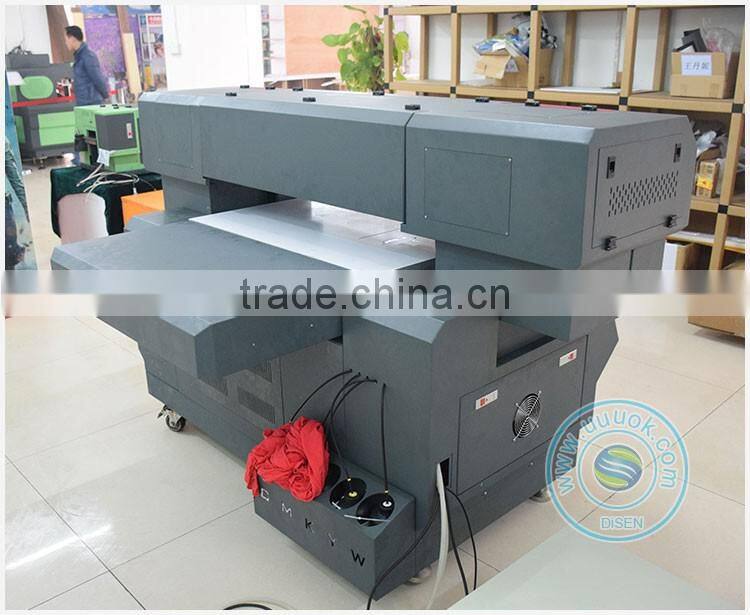

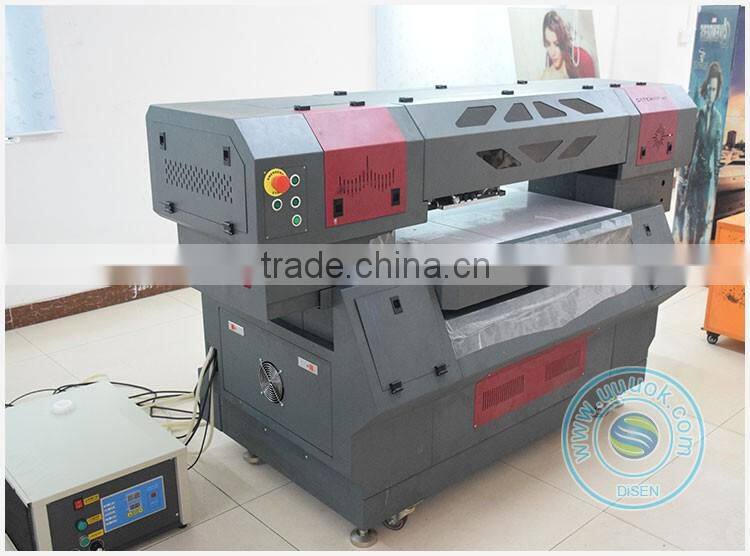

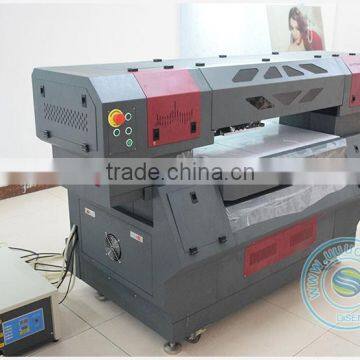

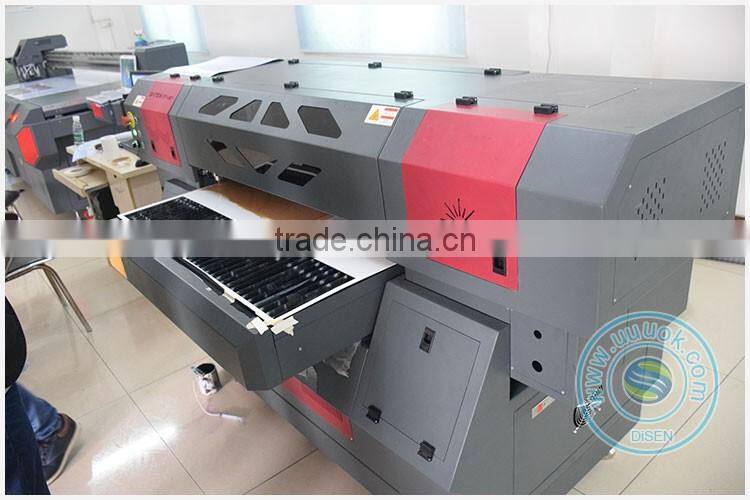

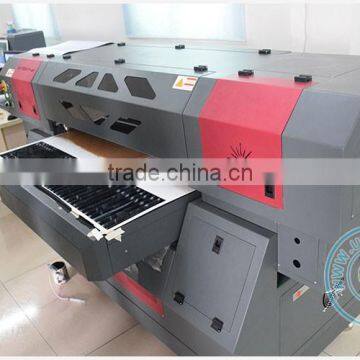

Newest Printing and Cutting DSP-GJ5138 90x60cm uv Laser Cutting Machine

Print size

 900mm*600mm

Print head

6 pieces LiGuang GH2220

Print speed

11SQM(720*1200dpi)/hour

Print color

C/M/Y/K+WW

Print resolution

720*1200dpi

Control Software

Colorgate RIP Software

Max print weigh

25 kg

Max print height

280mm

LED lamp lift span

8000-10000Hr

Lamp power

300W

Power Supply

110-220V/50-60HZ

UV Cooling System

Water Cooling System

Operating System

Win XP/win 7

Ink And Ink System

UV ink and CISS,150ml/bottle

Ink Usage

Without white underbase: 10ml/SQM      With white underbase: 20ml/SQM

Working temperature

10-35℃

Working humidity

20-75RH

Operation system

Win XP/win 7 or higher

Height Adjustment

Manual/ Infrared

Net weight

480kg

Equipment size

2000*1500*1300mm

Warranty

One year

Shipping size

2100*1600*1470mm

Product Video: /watch?v=D_u6gpPUyhA

Features:

1,While Inkjet printing and laser cutting interchange, there is a safe lock fuction

which well protects of printheads, laser gun head and carriage.

2,Inkjet printing and Laser cutting highly integated in one piece. Two fuctions in one machine,

which saves working space and time also rises the productivity efficient and accuracy of cutting.

3, use Colorgate RIP software.

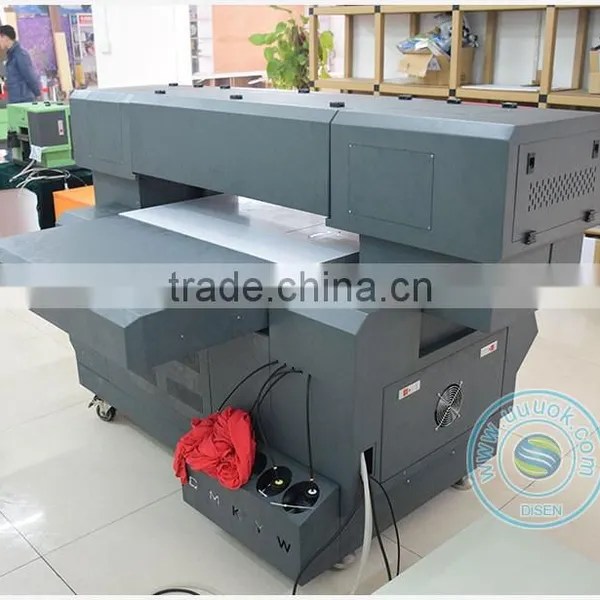

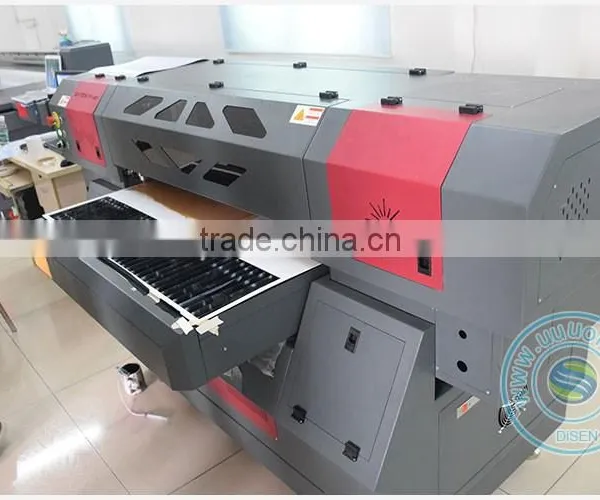

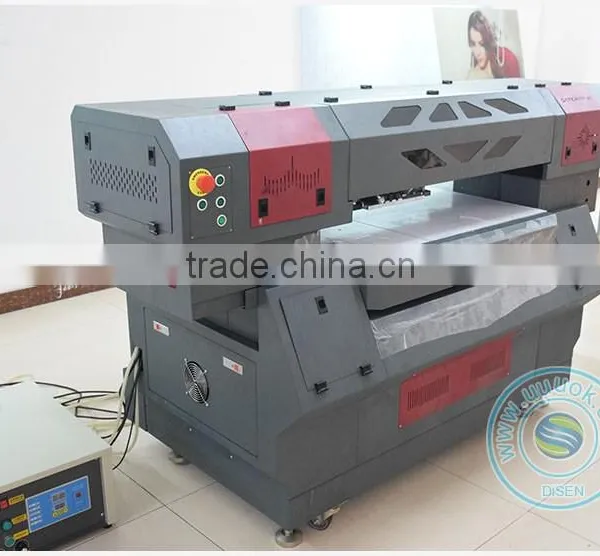

GJ 5138 Printing and Cutting Machine

Technical Features:

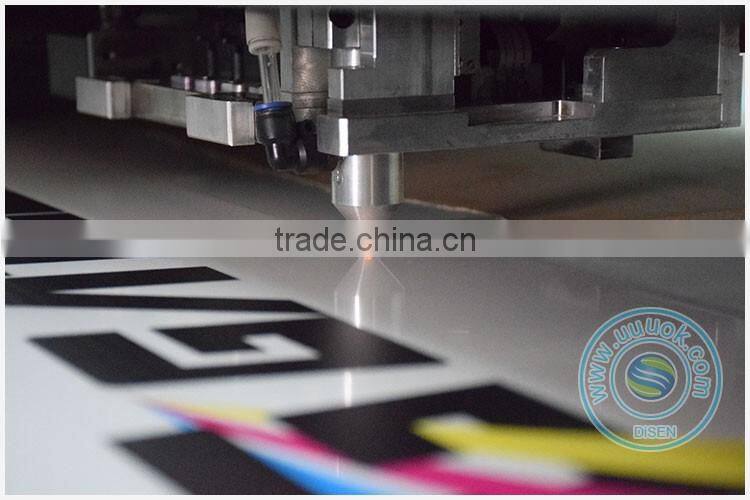

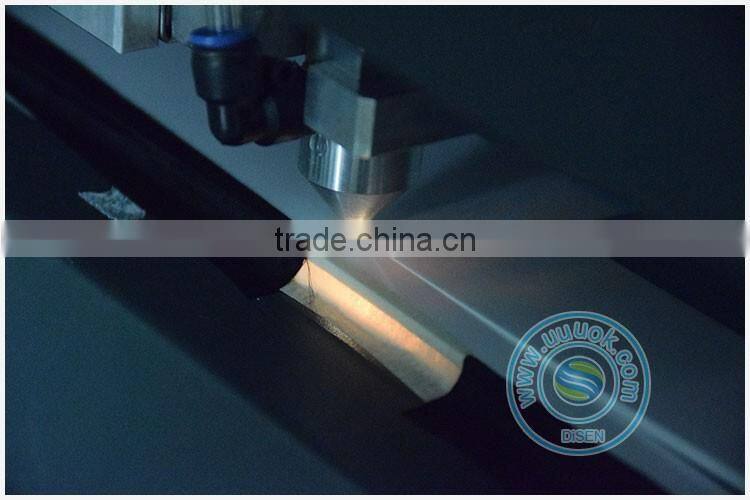

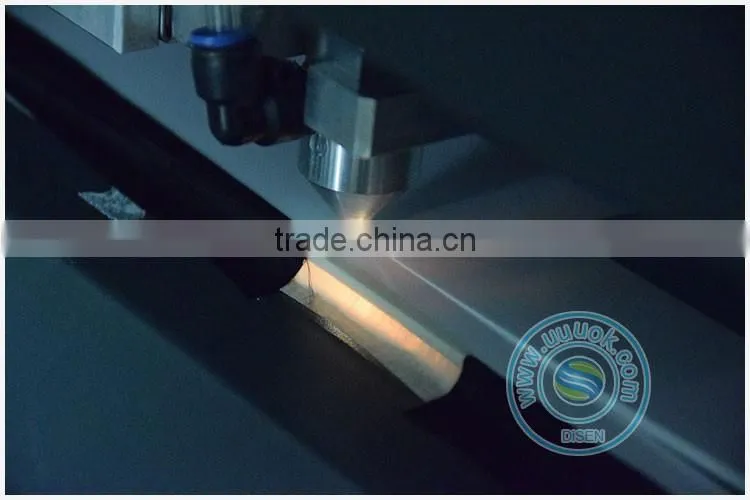

1. Inkjet printing and laser cutting highly integrated in one piece.

2.While inkjet printing and laser cutting interchange, there is a safe lock function which well

protects of printheads, laser gun head and carriage.

3.Two function in one machine, which saves working space and time also rises the productivity

efficient and accuracy of cutting.

4.The printing speed can reach 11SQM per hour with 4pass printing mode.

5. Printer body frame consist of many pieces of cast aluminum, which is ensure the printer structure

is firm and accurate assembly.

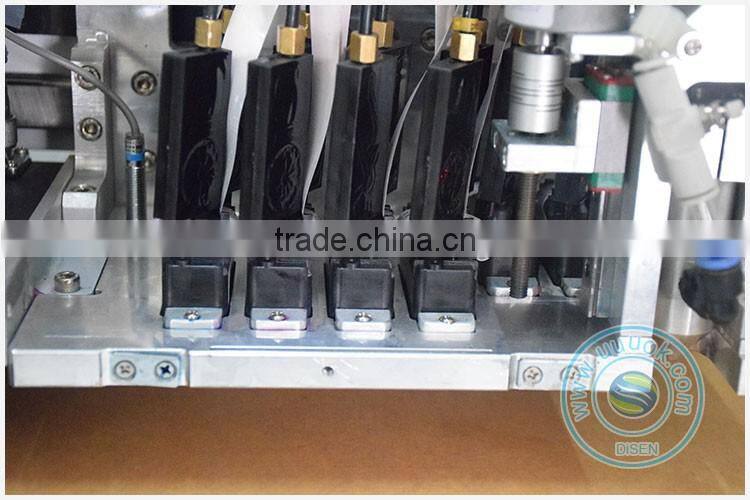

6. Z-axis holding frames are made by CNC coordinate machine, plus 4 guide rails and 8 pcs sliding

blocks, which confirms head carriage can move stably even while printer frame is up to 280mm height.
