Home > Packaging & Printing > Post-Press Equipment > Die Cutting Machine > SFY850 Plotter Cutter Price

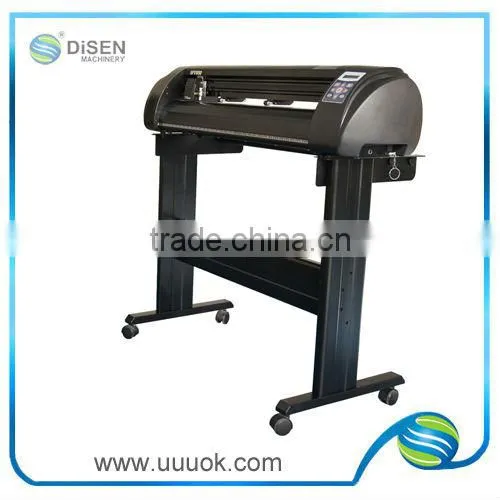

SFY850 Plotter Cutter Price

Name: SFY850 Plotter Cutter Price
Brand: Disen
SKU: 141153416
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Disen

Model Number:

DS-SFY850

Contact Supplier Request Quote Chat Now

Guangzhou Disen Science Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Disen

Model Number DS-SFY850

Voltage AC160V~240V

Cache Capacity 512k, possible to be enlarge to 1M

Paper Feed Width 850mm

Cutter Pressure 600mm

Cutting Width 750mm

Cutting Speed 1000mm/s

Driver Stepping motor

Cutting Length infinite

Repeat Cutting yes

Size 1250*386*330mm

Customer First Service First

Item	SFY720		SFY850		SFY1100		SFY1350
Max. paper feeding width	720mm		850mm		1100mm		1350mm
Max. cutting width	620mm		750mm		1000mm		1250mm
Max cutting speed	Whole Cutting:1000mm/s;Y Axis max cutting:2020mm
knife pressure	10~600g
memory	512k, possible to be enlarge to 1M
Mechanical resolution	0.0191mm/step
Repeating precision	0.127mm
Interface	RS-232 USB
Language format	DM/PL/HPGL
Power supply	AC160V~240V 50~60HZ
Driving system	DSP 64 Sub-Divide High Precision Step Motor
Working environment temperature	0~35°C
Working environment humidity	5%~95% no coagulate water
Display	The Led display with Chinese and english
Packing Size	1120386330mm	1250386330mm		1500386330mm		1750386330mm
Gross weigh	26kg	29kg		33kg		36kg
Oprional software	Artcut/Flexi sign(optional)

Customer First Service First

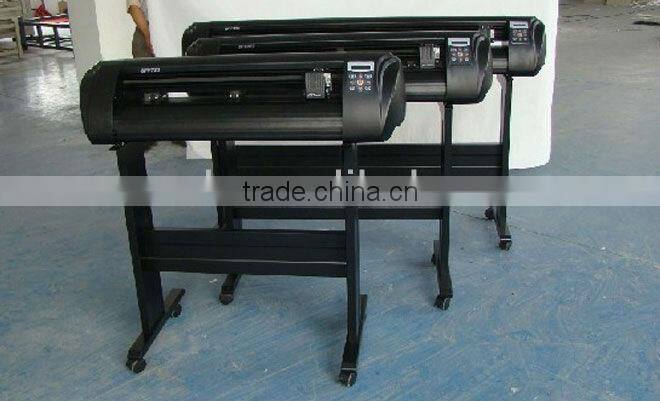

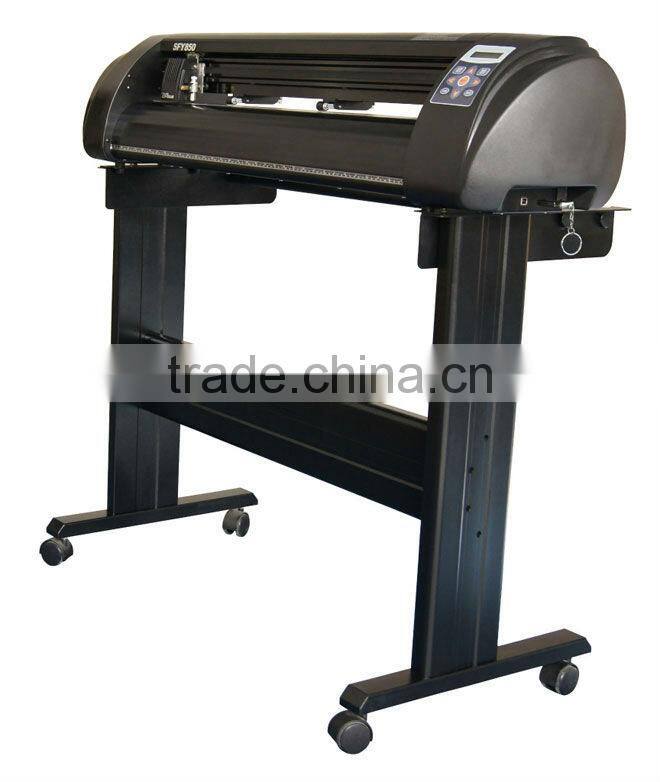

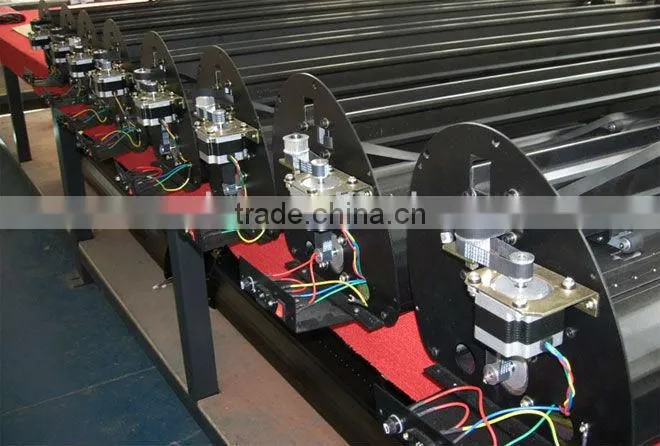

SFY850 plotter cutter price

High-precision SFY850 plotter cutter price

SFY850 plotter cutter price

Customer First Service First

SFY850 plotter cutter price

Standard features:
1.The specialized industry modelling and mechanism design,the outward appearance more smooth & natural ,the structure more scientific and strong.
2.The Wholly aviation aluminum molding body, which make sure the more stable function under hign speed working.
3.The imported puncyures paper-rolll with more friction force and more working life, and without any posssible deviation after long media cutting.

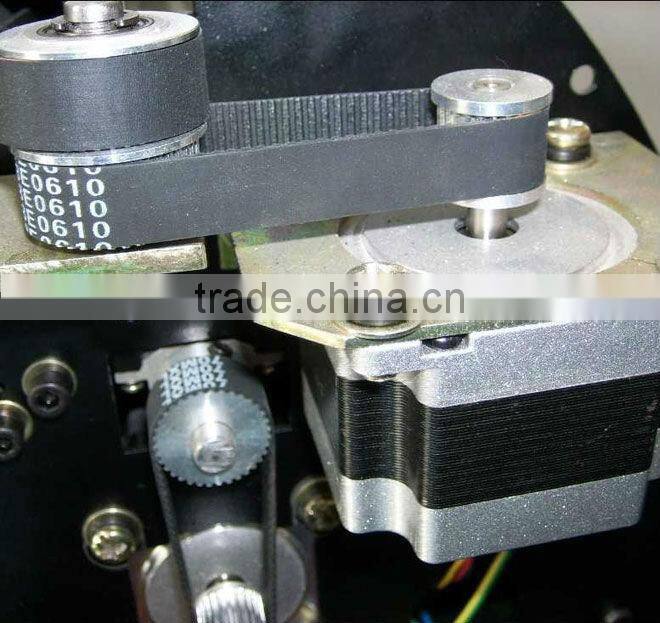

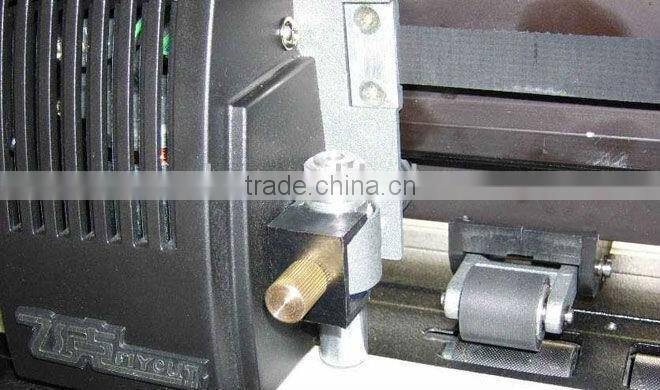

4.The whole-steel linear bearing pen-vehicle, with bigger cutting pressure and can be adjustable easily ,with good heat dispersion.
5.The DSP processor , with more quickly operating speed,subdivides the constant flow with low noise and more stable system.
6.The worldwide first technology Draws(or Cut)with negative direction function, saves more costs and bring more using value for user.
7.The standard USB connection, the data transimission is stable Meanwhile , with the U Flash Memory can used for output directly.
8.Build-inside closed compensation , acute-angle compensation, which can be used directly from Coreldraw,CAD or other design sofeware.

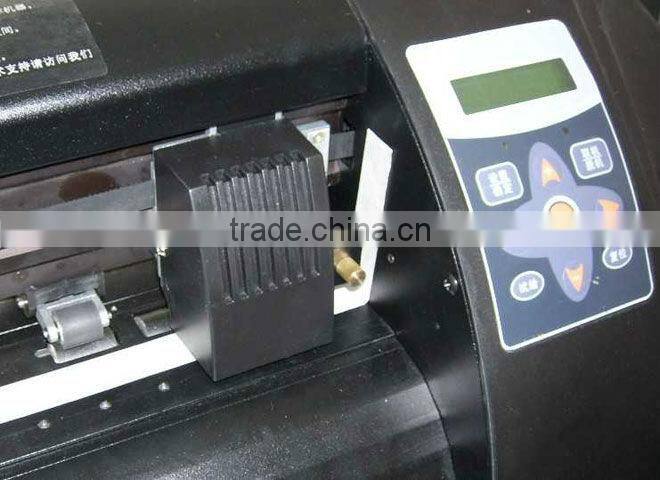

9.The LED display with light backsie , also easily changed between Ebglish & Chinese ,with more simply operation.

Currently, 3M and AVERY DENNIS~N Diamond and imported super reflective films are more and more widely used in china andeven the whole world.The average cutting plotter could not cut thoroughly or there is transformation when processing thesematerials,for they are made according to the theory of micro prism(harder) and have highly flexible and sticky back-adhesive,whichcosts waste of manpower and materials.We designed this super reflective film cutting machine to solve the mentioned problem.We spent 1 year trying our best to make it better and doing many cutting businesses for our customers and now it has replaced manual operating and realized automation.

* Streamline design,brief and natural
* More specialized integrated circuit,quick,quick speed,less noise,strong anti-jamming ability, simultaneous speed of curves and straight lines,smooth curves,high precision,more remarkable performance and stabilization
* The intelligent paper detecting function automatically halt working when lacks paper, which saves the cost for the customer. The intelligent radiation design guarantees the machine works well
* Lt can cut material of at least 16cm wide which creates value for customers
* Automatic paper feeding system satisfies the long time cutting of entire volume and overweight materials
* The great carver pressure meets needs of cutting all ranks of 3M diamond reflective film available in current markets
* Standard language and strong software compatibility support professional software like ARTCUT, Cutting Master, FLEXlSlGN and etc. It can also be output by Memory Disk or COM.
