Home > Packaging & Printing > Post-Press Equipment > Die Cutting Machine > A4 Vinyl Cutter Plotter

A4 Vinyl Cutter Plotter

Name: A4 Vinyl Cutter Plotter
Brand: Disen
SKU: 141153424
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Disen

Model Number:

DS-JK240

Contact Supplier Request Quote Chat Now

Guangzhou Disen Science Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shenzhen Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Disen

Model Number DS-JK240

Voltage AC100V~AC240V

Cache Capacity large memory

Paper Feed Width A4

Cutter Pressure 60-350g(7 grades optional)

Cutting Width 190MM

Cutting Speed 10-280mm/s(7 ranks optional)

Driver Stepping motor

Cutting Length 2000mm

Repeat Cutting yes

Size 49*26*35cm

Customer First Service First

Character Features

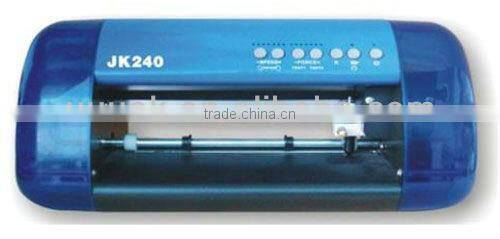

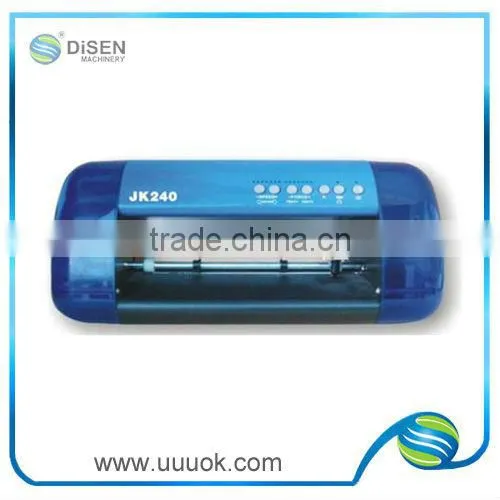

A small cutting and drawing plotter with a registration mark laser on it.it

Drawing, cutting, kiss-cutting the outline sketch of the printed cartoon or other graphs for your business and hobbies

A Windows driver is provided and enables output from leading drawing software (eg CorelDRAW 12, Adobe IllustratorCS)

Model Item	JK240	JK330
Max. cutting range	190*2000mm	290*2000mm
Material Width	A4 size	A3 size
Net weight/Gross weight	4.5/5.5kgs	5.5/6.5kgs
Packing size	492635cm	582635cm
Configuration	Grit-rolling
Drive System	Stepping motor
plotting speed	10-280mm/s(7 ranks optional)
cutting force	60-350g(7 grades optional)
Available Material	PVC or lactoprene sheet(less than 0.1mm thickness) Drawing paper, postcard, back-glue print paper, ink jet photo paper
interface	USB1.0 or RS232
Power supply	Dedicated adapter, DC 16V 2.5A Input AC100V~AC240V;47HZ-66HZ
Language Format	DMPL/HPGL
Operation Environment	Temperature:5°C~30°C Relative humidity:(35%-80%)without condensation
N,W/G.W (kg)	4.5/5.0KG		5.5/6.0KG
colors	White color, White & Blue color, Red color, black color, Red & Black color

Customer First Service First

A4 vinyl cutter plotter

Customer First Service First

A4 vinyl cutter plotter

Technical Service:
1) Design rational process for customers according to their product positioning.
2) Help customers carry out technological transformation on the entire process to improve their production efficiency and capacity.
3) Customize CNC engraving machine configurations and other manufacturing equipment for customers; provide spare parts to equipment users.
4) Help customers test, inspect and analyze new processes, and offer reasonable suggestions and improvement proposals.
5) Improve customer operation on CNC equipment; train their ability to use the equipment and improve their application efficiency.
6) provide software train for customers and software design of special patterns.
7) Provide processing service for special products.
8) Provide professional designers of technological application to equipment users.
9) Provide technical advice, equipment maintenance and repair services.

After-sales Service:
Free on-site installation and commissioning.
24-hour service hotline; monthly telephone callback, providing free instruction and answering your questions.
Life-time maintenance; one-year warranty.
Within 72 hours from receiving repair notice to finishing repair.
Once a year on-site free maintenance.
Comprehensive and systematic technical training, to ensure your correct operation of the equipment.
