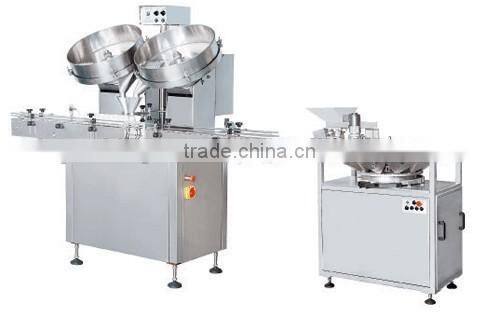

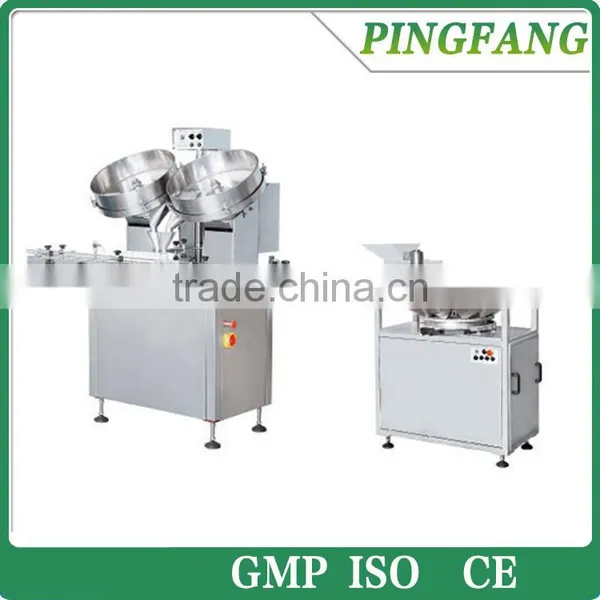

YP-60 Round Plate Type Small Tablet Counting Machine, Automatic Pill Counter

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

Huizhou Pingfang Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port China(Mainland)

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Guangdong, China

Brand Name PF

Model Number YP-60

Usage Other, Tablet/ Capusle

Production Capacity 20-60 bottles/min

Voltage AC 220V 50HZ

Power(W) 1.2kw

Weight 360KG, 360kg

Dimension(L*W*H) 1630*780*1580mm

Certification ISO CE

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

YP-60 Round Plate Type Small Tablet Counting Machine, Automatic Pill Counter

Product Description

1.It is widely used especially for tablet (non-coated and coated), pellet, capsule in pharmaceutical industry.

2.Control system adopts PLC control system from Japan, which runs steadily.

3.The machine adopts frequency control, finish non-step speed regulation of the rotor tray, which is steady and reliable

4.There is decentration vibration structure in the counting machine, the angle of gradient and the vibration can be adjusted.

5.The machine is in pause status when the bottles supplying is insufficient or bottles blocked there and backe to normal when the problems solved.

Technical parameters

Date / model	YP-60	YP-80
Capacity (bottles/min)	20-60	20-80
Filling quantity per bottle(pills)	20-180	20-180
Container specs diameter Height	Φ20-Φ80mm 30-150mm	Φ30-Φ70mm 30-120mm
Drugs specs Tablet Capsules	Φ5-Φ12mm 00#,0#-4#	Φ5-Φ16mm Φ5-Φ16mm
Noises	≤75db(A)	≤75db(A)
Voltage input	AC220V 50HZ	AC220V 50HZ
Total power	1.2KW	0.5KW
Conveyor length	2000mm	1500mm
Dimension	1630x780x1580mm	940x1360x1475mm
Weight	360kg	300kg
Compressed air supply	0.5Mp	0.5Mp
