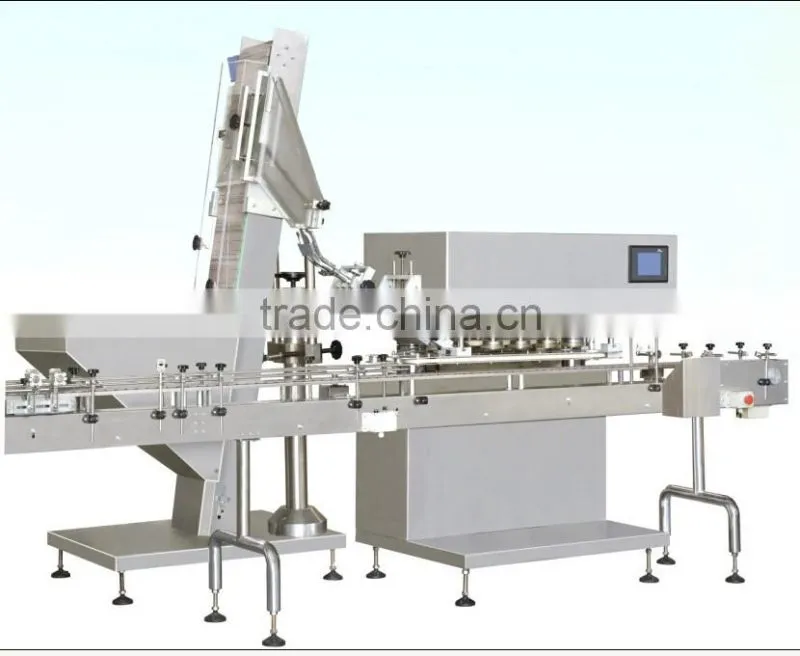

Factory Price Model XG-100 Automatic Screw Capping Machine for Bottle
Performance of Cap Loader
1.Controlled by inverter, cap loader speed is stepless variable
2.Tilting chain-plate loading method, load caps rapidly, low noise, widely used.
3.Suitable for ROPP caps, pilfer proof caps
4.According to special caps, you can choose electromagnet oscillation type capping machine, which has press and screw function.
Performance of capping machine
1.Use linear link cap-lock, high efficiency, widely used.
2.Consist of 2 synchro belt and 6 (in 3 groups) capping wheels, to get reliable capping.
3.Each capping wheel has digital display device, can be adjusted precisely.
4.Inspector after capping, to reject bottles without Alu-foil (optional)/
5.The distributing wheel stops when there's no caps.
Data / Model |
XG-100 |
Capacity (bottles/min) |
40-120 |
Cap size |
Φ15-Φ70mm |
|
Container specs. Diameter Height |
Φ35-Φ100mm 30-120mm |
Noises |
≤75db(A) |
Compressed air supply |
0.5Mp |
Voltage input |
AC220V 50Hz |
Total power |
1.2kw |
Conveyor length |
3000mm |
Dimension of cap loader |
1200x1400x2200mm |
Net weight of cap loader |
300kg |
Dimension of capper |
1550x910x1600mm |
Net weight of capper |
600kg |
