Model TBY-100A High Speed Automatic Round Bottle Labeling Machine

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Chemical, Commodity, Medical

Packaging Type:

Bottles

Huizhou Pingfang Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port China(Mainland)

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Chemical, Commodity, Medical

Packaging Type Bottles

Packaging Material Paper, Plastic

Automatic Grade Automatic

Driven Type Electric

Voltage 220V/50HZ

Power 0.9KW

Place of Origin Beijing, China

Brand Name PF

Model Number TBY-100A

Dimension(L*W*H) 2370*940*1250mm

Weight 100kg, 100kg

Certification CE ISO

After-sales Service Provided Engineers available to service machinery overseas

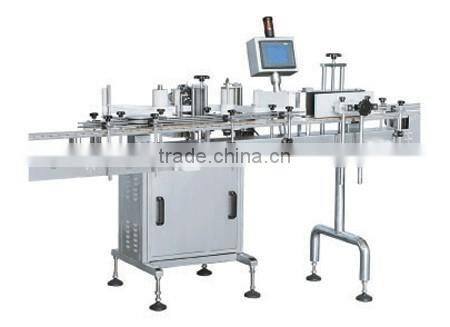

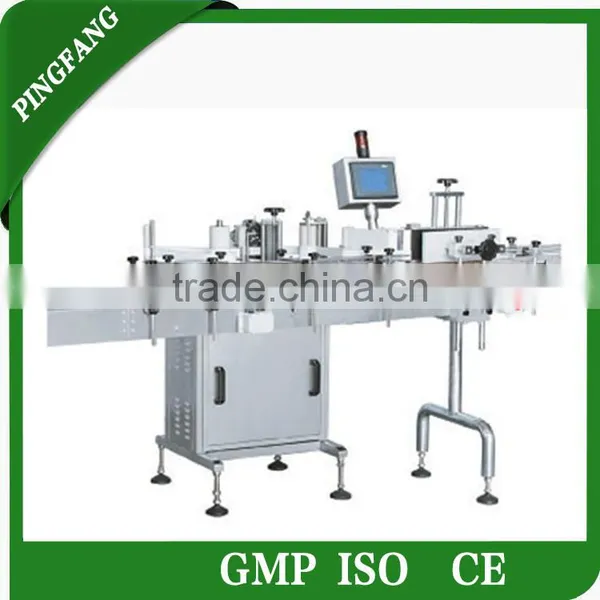

Model TBY-100A High Speed Automatic Round Bottle Labeling Machine

Product Description

1.It fits for kinds of round bottles

2.PLC control system, touch screen control, easy to operate and adjust parameters, can store 50 different kinds of series.

3.Use well-known electric parts, high reliability.

4.The labeling speed and conveyor speed are governed synchronistically to make sure the labeling quality.

5.Feeding motor adopts single motor drive, stepless regulation, to make labeling reliable

6.The sensitive of label photo cell is adjustable, it can compare different stickers of optical properties

7.3 lines for printing data, batch number, and expiry date etc

8.Failure diagnosis function, convenient to operate and maintenance.

Data / Model	TBY-100A	TBY-100B
Shape of bottle	Round bottle	Round and square bottle
Max speed (bottles/min)	180	80
Hot printing (line x letters)	3 x 12	3 x 12
Label roll inner diameter Label roll outer diameter	Φ76mm ≤Φ370mm	Φ76mm ≤Φ370mm
Bottle size diameter Height	25-80mm 30-150mm	Round bottle:28-80mm 30-150mm square bottle: width/length ≥0.7 width≤45mm
Compressed air supply	0.5Mp	0.5Mp
Noise	≤70db(A)	≤70db(A)
Input power	AC220V 50Hz	AC220V 50Hz
Total power	0.9Kw	1.3kw
Dimension	*23709401250mm*	*300010501100mm*
Weight	100kg	200kg
Max width of sticker	100mm	100mm
