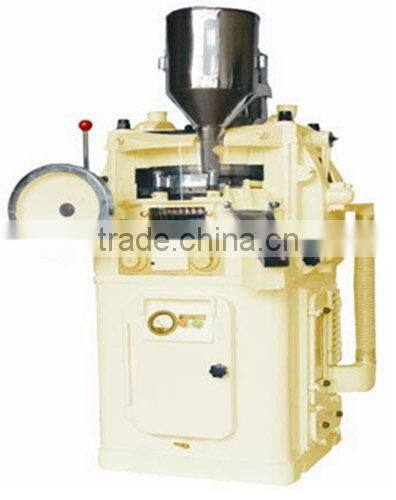

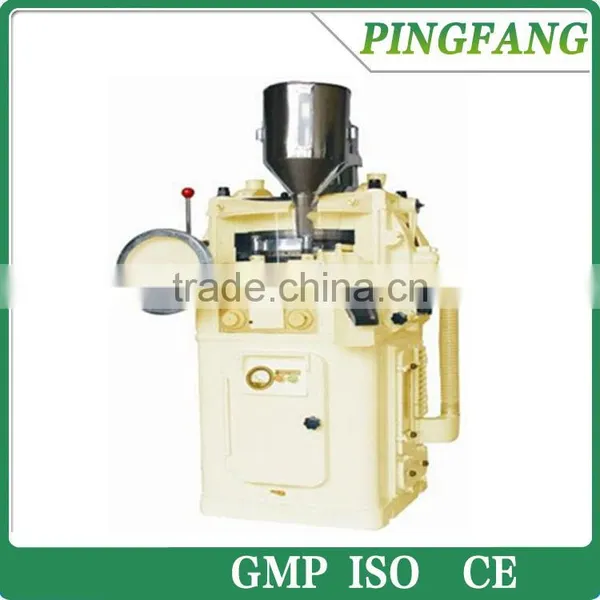

High Capacity ZP33 Rotary Punch Tablet Press, Press Tablet Equipment
1. Application
This machine is designed for pressing round tablets from various kinds of granular materials.It is primary machine to fit batch production of tablets.
2. Details
The mechanism of the machine belongs double-press type.It consists of two sets of feed assemblage and press roller unit.The turret carries 33 sets of punches and dies,so 66 tablets will be pressed for each revolution of the turret.During operation,the speed of the turret rotation,the depth of the filling material and the thickness of the tablets can be adjusted.The mechanical buffer unit will prevent punches and apparatus from overload damage.
A powder suction unit is attached to take in the residual powder during operation, so that the blockage by the residual powder can be eliminated and the collected powder material can be reused.
This machine has won the Fine Quality Product Prize awarded by China National Medical Management Bureau.
Dies | 33sets |
Max. Pressure | 40KN |
Max. Diameter. of Tablet | 12mm |
Max. Depth of Fill | 15mm |
Max. Thickness of Tablet | 6mm |
Turret Speed | 11-28r/min |
Production Capacity | 43000-110000pc/h |
Motor | 2.2kw 960r/min 380/50v hz |
Overall Size (L*W*H) | 930*900*1600mm |
Net Weight | 850kg |
