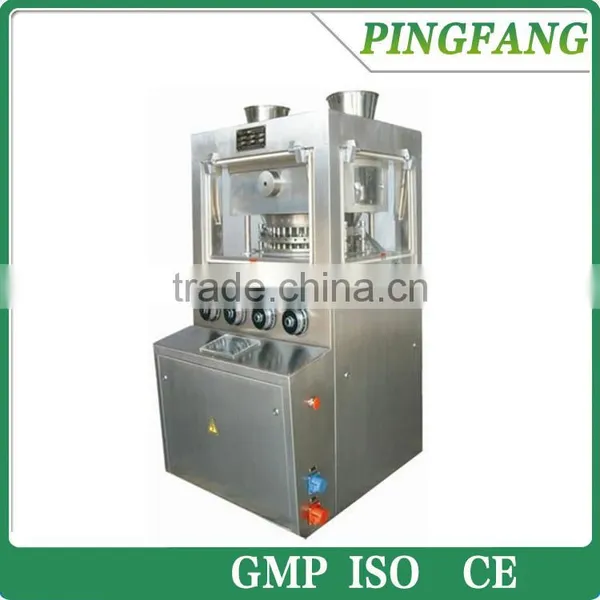

High Performance ZP35B Rotary Sugar Cube Tablet Press Machine
Application
This machine is a double-press type continuous automatic tablet press for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry and also the chemical, food, electronic industries.
Characteristics
1. ZP35B has pre-pressure equipment, the max pre-pressure is 20kN.
2. Produce all kinds of round tablets and irregular tablets.
3. The outside part of the machine is fully-enclosed, the material of the cover and the inside table face is stainless steel. The turret face is specially disposed keeping the luster of the face and prevent the cross pollution, meeting the G.M.P requirement.
4. It has transparent windows so that press condition can be observed clearly and the windows can be opened
5.Cleaning and maintenance is easier.
6. The lay-out of all the controllers and the operate parts is reasonable.
7. The speed adjustment of the driver is controlled by the frequency conversion device.
8. All the drive devices are located inside the machine so keep the machine clean.
9. The hydraulic system can assure the stable of the system.
10. An overload protection unit is included in the system to avoid the damage of the punches and apparatus, when overload occurs, the machine stops automatically.
11. This machine also has electronic magic driver and other safety protection device which can be adjusted and operated when running.
12. The punches and dies are also applicable to Model ZP19, ZP33, ZP33B, ZP35 andZP37.
Dies |
35 sets |
Max. Pressure |
80KN |
Max. Dia. of Tablet |
13mm(length 16mm) |
Max. Depth of Fill |
15mm |
Max. Thickness of Table |
6mm |
Turret Speed |
5-36r/min |
Production Capacity |
150000pcs/h |
Motor |
4KW 380V/50HZ |
Overall Size (L*W*H) |
910*1120*1650mm |
Net Weight |
2300kg |
