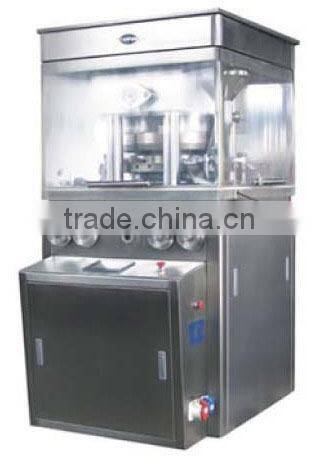

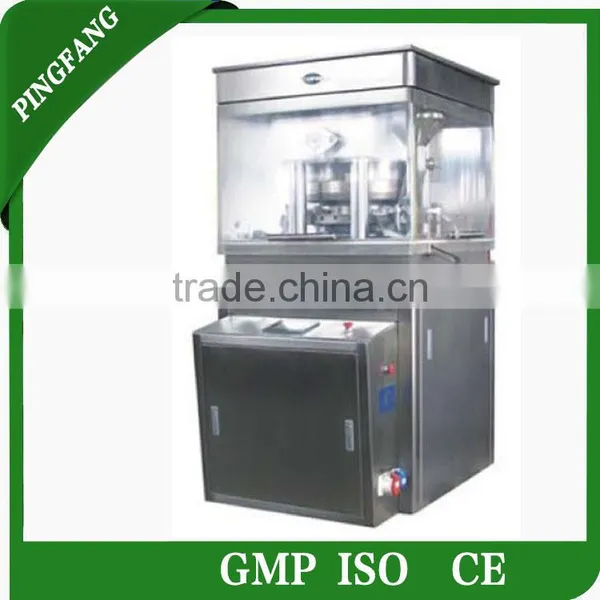

New Type ZPW-21 23 Rotary Tablet Press with Three Layers, Press Tablet Machine
1. Main application
Based on ZP27 rotary tablet press machine, our factory improved it. This machine is mainly for making double layer or three layers tablet press. It is mainly used in pharmaceutical industry, chemical industry and food industry.
2. Features
A. Machine meets GMP and made in stainless steel. The inner tablet press surface already is special treated, which could keep surface luster and prevent from being polluted crossly.
B. Equipped with transparent window could help to observe the status of pressing tablet. Transparent window could be fully opened, Machine easy to clean and Maintenance. All monitors and operating components work well together.
C. Machine speed could be adjusted.
D. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
E. Transmitting system is sealed in the oil box under the working area, which work separately. No pollution and easy to send out heat and resist grinding.
F. Machine equipped with suction machine which could absorb the powder of working area.
TYPE |
ZPW-21 |
ZPW-23 |
Dies(sets) |
21 |
23 |
ure(Kn) |
100 |
100 |
Max.Dia.of Tablet(mm) |
45 |
40 |
Max.Thickness of Tablet(mm) |
12 |
12 |
Max.Depth of fill(mm) |
25 |
25 |
Max production capacity(pcs/h) |
21000 |
23000 |
Rotational diameter(mm) |
445 |
445 |
Rotational speed of revolving table(r/min) |
10-25 |
10-25 |
Diameter of middle mould(mm) |
45 |
45 |
Highness of middle mould(mm) |
30 |
30 |
Length of up and down punch pole(mm) |
32 |
32 |
Length of up punch pole(mm) |
175 |
175 |
Length of down punch pole(mm) |
180 |
180 |
Overall dimensions(mm) |
1000 * 1250 *1900 |
1000 *1250 *1900 |
Net weight(kg) |
3200 |
3200 |
Motor model |
YU123M4A |
YU132M4A |
Motor(kW) |
7.5 |
7.5 |
Voltage(V) |
380 |
380 |
