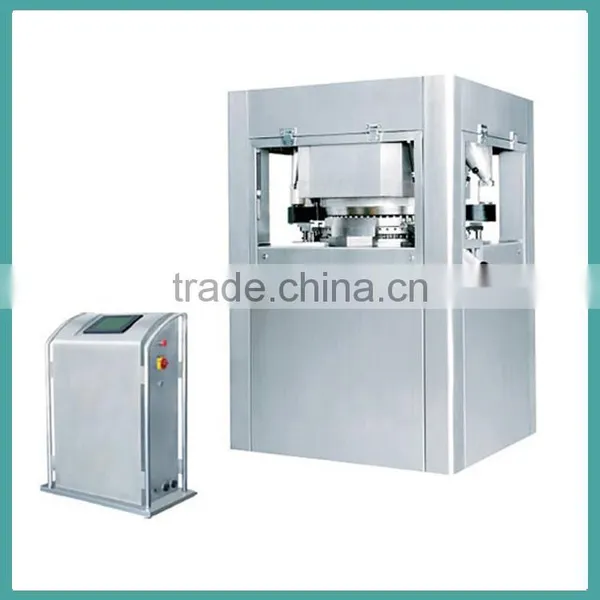

GZPS Series Automatic High-speed Double-sided Tablet Press (680 Series)

Huizhou Pingfang Trading Co., Ltd.
GZPS Series Automatic High-speed Double-sided Tablet Press (680 Series) thumbnail-1
GZPS Series Automatic High-speed Double-sided Tablet Press (680 Series) photo-1
US$ 116,000 - 128,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
PF
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China( Mainland)
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name PF
Model Number GZPS
Type Other, high speed tablet press
Production Capacity 140000-680000 pc/h
Max. Pressure(KN) 100KN
Max. Tablet Thickness(mm) 8-10mm
Max. Tablet Diameter(mm) 25mm
Voltage 380V
Power(W) 11Kw
Weight 4800kg
Dimension(L*W*H) 1300*1300*2000mm
Certification CE/ISO
After-sales Service Provided Engineers available to service machinery overseas

       GZPS Series Automatic High-speed double-sided Tablet Press (680 series)


1.   technique paramete



        model
data
GZPS-49
GZPS-61
GZPS-73
GZPS-79
No. of stations
49
61
73
79
Tooling type
D
B
BB
BBS
Output range (Tablets/h)
94000-423000
117000-526000
140000-630000
140000-680000
Rotation speed range (rpm)
16-72rpm
Main pressure
100KN
Pre-pressure
Max tablet diameter
Φ25mm
Φ16mm
Φ13mm
Φ11mm
Max length of irregular tablet
25mm
19mm
16mm
13mm
Diameter of die
Φ38.1mm
Φ30.18mm
Φ24mm
Φ22mm
Max. filling depth
20mm
16mm
Main motor power
11Kw
Diameter of punch
25.35mm
19mm
Pitch circle diameter
680mm
Weight
4800kg
Dimension of machine
1300*1300*2000mm
Dimension of control cabinet
890*510*1200mm








2. Application:

GZPS series possess advantages as high accuracy, high speed and high-degree programmed automation and capable to be the ideal equipments for mass production of tablets.
Meets GMP requirements
 can press two layers tablets with different colors ,annular tablets, engraved tablets and irregular tablets. Available for pharmaceutical factory, food and chemical industries.



3. Features:

A.  The advanced and reasonable design is the foundation of quality of production, with a combination of years of experiences on producing high-speed tablet press and modern technology, a new design idea of GZPS series double-sided high-speed tablet press       fulfilled the standardization, modularization and serialization of production.

B.   Automatic concentrative lubrication system
C   Special oil proof, dust proof and noise proof system
D.  A 360º open structure of pressing chamber, without dead area. Easy to clean, operate and maintenance
E.   Special 4 poles construction ensures the machine to perform stably and durably
F.   Advanced international heat treatment of the punch turret makes it have supper longevity.
G.   Same size of pre-press wheel and main-press wheel. The both wheels can be interchanged, which is propitious to removing air for material and extend the time of pressing
H.   Steel support for press wheel makes tablets formed best and ensures the consistency of thickness of tablets
I.    Enough space of replacement for both die and upper & lower cam tracks, it is easier for maintenance
J.    Adopts the mode of motor along with encoder to adjust the position of main press wheel and pre-press wheel. This ensures the high accuracy.
K.   Separate control cabinet to operate the machine; separated production area from operating area; ensures the safety for operator and sanitation for production;
L.   Adopts 10 inches touch screen to fulfill the automatic controlling, without handwheels
M.   Adopts B&R PCC control system with quick and accurate response
O.   All information about manufacturing can be displayed, stored extracted and reset;
P.   Different degree of user’s password can be set .
Q.  Adopts automatic servo motor controlling; adjust dosing cam tracks; control the depth of filling, ensures high accuracy of tablets’ difference.
R.   Tri-wheeled double deck feeding system;
S.   Upper impellers is used for enhancing the fluidness of powder to equalize the density of powder.
T.   Lower 2 impellers are used for filling and dosing to ensure the equality during filling .





4. Company introduce:

Our company is professional to do and export pharmaceutical machines, pharmaceutical packing material and others with a good reputation in the industry of China's pharmaceutical machinery



Our product include:

1). Kinds of drugs machinery: tablet press machine, capsule filling machine, blister packing machine, capsule filling machine, tablet coating machine, tablet/capsule counting production line, liquid filling machine, powder filling machine, liquid/powder/ cream packing machine and so on.

Welcome to scan our website:

2). Tester equipment in laboratory

3). Packing material: empty capsule, PVC, Aluminum foil, glass bottle, plastic bottle, laminated aluminum foil and so on



5. Factory and exhibition photos:

GZPS Series Automatic High-speed double-sided Tablet Press (680 series)

Canton Fair show
GZPS Series Automatic High-speed double-sided Tablet Press (680 series)

GZPS Series Automatic High-speed double-sided Tablet Press (680 series)

Working room



6. Relation spare parts:
GZPS Series Automatic High-speed double-sided Tablet Press (680 series)



7. Other machines:

GZPS Series Automatic High-speed double-sided Tablet Press (680 series)GZPS Series Automatic High-speed double-sided Tablet Press (680 series)





8. Pill samples:

GZPS Series Automatic High-speed double-sided Tablet Press (680 series)GZPS Series Automatic High-speed double-sided Tablet Press (680 series)





9. Certificate

GZPS Series Automatic High-speed double-sided Tablet Press (680 series)GZPS Series Automatic High-speed double-sided Tablet Press (680 series)GZPS Series Automatic High-speed double-sided Tablet Press (680 series)
