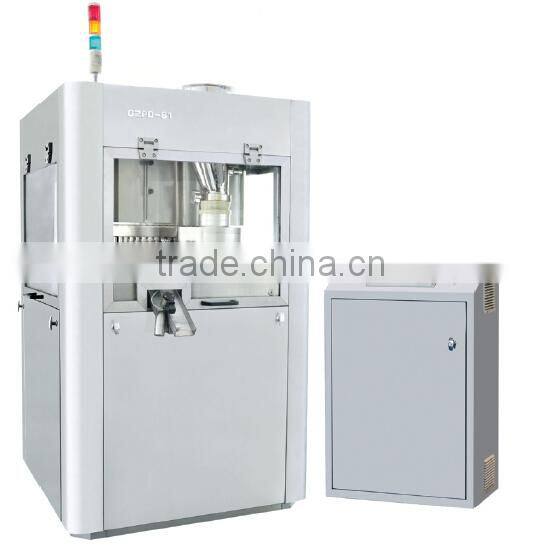

GZPT Series Automatic Triple Rotary High Speed Tablet Press Machine
US$ 208,000 - 229,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
PF
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China( Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GZP Series Automatic High-speed Tablet Press Machine for SaleUS$ 33,000 - 36,000MOQ: 1 Unit -
ZPTS Series Economic-type High Speed Tablet Press Machine (620)US$ 75,000 - 82,500MOQ: 1 Unit
-
GZP Series Automatic High-speed Tablet Press (370)US$ 50,000 - 55,000MOQ: 1 Unit
-
ZPT Series Economic-type High Speed Tablet Press for Hot SellingUS$ 23,000 - 26,000MOQ: 1 Unit
-
ZPT Series Automatic High-speed Tablet Press (370)US$ 36,000 - 40,000MOQ: 1 Unit
Condition
New
Place of Origin
Shanghai, China
Brand Name
PF
Model Number
GZPT
Type
Other, high speed tablet press
Production Capacity
1119000-697000 pc/h
Max. Pressure(KN)
100KN
Max. Tablet Thickness(mm)
8-10mm
Max. Tablet Diameter(mm)
11-25mm
Voltage
380V
Power(W)
18.5kw
Weight
8000kg
Dimension(L*W*H)
1720*1720*2182mm
Certification
CE/ISO
After-sales Service Provided
Engineers available to service machinery overseas
GZPT 1060 series Automatic Triple Rotary High Speed Tablet Press Machine
1. technique paramete
Model |
GZPT-122 |
GZPT-113 |
GZPT-95 |
GZPT-76 |
No. of stations |
122 |
113 |
95 |
76 |
Tooling type |
BBS |
BB |
B |
D |
R.P.M |
5.1-51 |
|||
Max output(tablets/h) |
1119000 |
1037000 |
872000 |
697000 |
Main motor power |
18.5kw |
|||
Main pressure |
100KN |
|||
Pre-pressure |
100KN |
|||
Max tablet diameter |
11mm |
13 mm |
16 mm |
25 mm |
Max length of irregular tablet |
13mm |
16mm |
19mm |
25mm |
Max filling depth |
16mm |
16mm |
20mm |
20mm |
Max tablet thickness |
8mm |
8mm |
10mm |
10mm |
Pitch circle diameter |
1060mm |
|||
Diameter of punch |
19mm |
19mm |
19mm |
25.35mm |
Dimension |
1720*1720*2182mm |
|||
Weight |
8000kg |
|||
2. Application:
GZPT-1060 series Automatic Triple Rotary High Speed Tablet Press Machine is a kind of large-scale tablet press machine which developed by our experience according to User's requirement in the world.
GZPT-1060 series is best used for mass production of single product. It's also used for two-layer tablets and three-layers tablets.
3. Features:
A. Feeding powder in three hoppers. Tablets compressed at three sides. Tablets ejected through three sides chute. Rapid speed with large quantity punches.
B. Cancel hydraulic system. Compression rollers adopt mechanical support .To avoid secondary pollution; Due to the upper and lower Compression rollers adopt independent modules, the rollers adjustment separately, punches can not be clasped .The position of lower compression rollers is controlled by motor and fast adjustment.
C. Electric control system is entirely separate from main machine. The operation area is separate from production area. This design can extend the service life of electric control system. Also greatly enhance the sanitation and safety factors.
D. The parts in contact with powder such as feeding system,turret,and tablets ejection parts use stainless steel or nontoxic polymer materials. Meets GMP standard.
E. No hand-wheel control. The filling system use servo motor control which has fast reaction speed. The main pressure and pre-pressure use synchronous motor control .The location of main pressure and pre-pressure measured through the encoder. Accurate data and reduce manual errors.
F. GZPT-1060 series Automatic Triple rotary High Speed Tablet Press Machine is a kind of large-scale tablet press machine which developed by our experience according to User’s requirement in the world. GZPT-1060 series is best used for mass production of single product .Also used for two-layers tablets and three-layers tablets as well as sandwich tablets.
G The filling system use servo motor control which has fast reaction speed. Adjustment precision can reach 0.01mm. Filling volume displayed in the touch screen directly. No need to use their experience to repeated measurement
H. Tri-wheeled double deck feeding system
I. The upper impeller can increase the powder flow and balance powder density;
J The lower 2 impellers are used for feeding and dosing .To ensure the uniformity of feeding;
K Use Servo motor to adjust dosing cam track, which can control the filling depth. To ensure an accurate dosing.
L Separate control cabinet to operate the machine; separated production area from operating area; ensures the safety for operator and sanitation for production;
M Adopts 10 inches touch screen to fulfill the automatic controlling, without hand-wheels;
N. Adopts B&R PCC control system with quick and accurate response;
4. Company introduce:
Our company is professional to do and export pharmaceutical machines, pharmaceutical packing material and others with a good reputation in the industry of China's pharmaceutical machinery
Our product include:
1). Kinds of drugs machinery: tablet press machine, capsule filling machine, blister packing machine, capsule filling machine, tablet coating machine, tablet/capsule counting production line, liquid filling machine, powder filling machine, liquid/powder/ cream packing machine and so on.
2). Tester equipment in laboratory
3). Packing material: empty capsule, PVC, Aluminum foil, glass bottle, plastic bottle, laminated aluminum foil and so on
5. Factory and exhibition photos:
Canton Fair show
Working room
6. Relation spare parts:

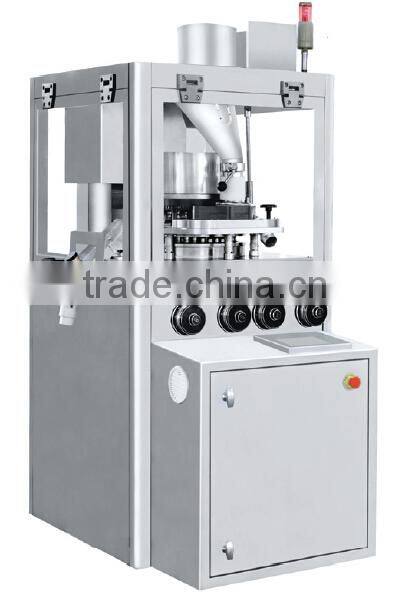

7. Other machines:
8. Pill samples:
9. Certificate
