Home > Products > Pharmaceutical machinery > Model EYH Series Planetary 2D Motion Industrial Blender Machine Price for Sale

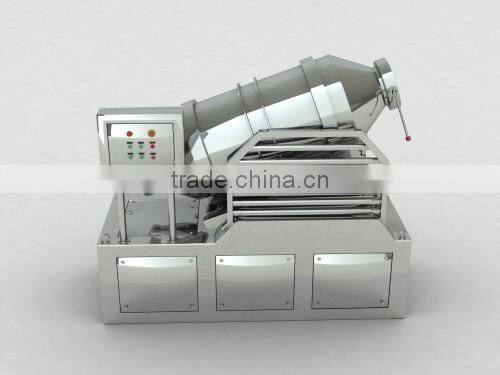

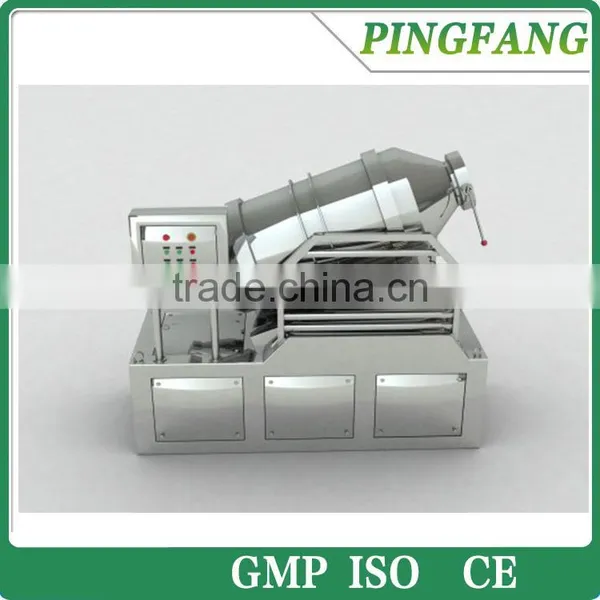

Model EYH Series Planetary 2D Motion Industrial Blender Machine Price for Sale
Negotiable
/ Unit
1 Unit(Min.Order)
- 100 Unit / Units per Month
- Shanghai Port China(Mainland)
- T/T Credit Card PayPal
You May Like
Product Details
| Condition: | New | Mixer Type: | Planetary Mixer | Product Type: | Fertilizer |
| Application: | Other, Materials with high tonnage | Additional Capabilities: | Other, Mixing | Place of Origin: | Jiangsu, China |
| Brand Name: | PF | Model Number: | EYH Series | Max. Loading Capacity: | 5000L |
| Voltage: | 220V/380V | Power(W): | 0.55-11kw | Dimension(L*W*H): | 900*730*950mm |
| Certification: | GMP | Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Model EYH Series Planetary 2D Motion Industrial Blender Machine Price for Sale
Product Description
Main Application
The mixer is suitable for the mixing of dry granule materials for pharmaceutical, chemical industries, etc., especially for the mixing of materials with high tonnage.
Working principle
The mixing tank is a cylinder-shape barrel without any stirring device inside, which makes the self-rotation around its axis and also produces turnover swing movement around its plane axis synchronized, therefore, the target materials inside the barrel could be mixed diffusely and moveable, it is featured with short mixing time, good uniformity, big output, convenient to discharge, etc..
Technical parameters
| Model | Barrel volume | Max loading volume | Max loading weigh | Mixing time | No.of rotation | No.of swing | rotation Motor power | swing Motor power | Overall dimension | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| EYH-50 | 50L | 25L | 25kg | 0-99min | 20r/min | 11.5r/min | 0.55kw | 0.75kw | 900*730*950mm | 115kg |
| EYH-100 | 100L | 50L | 50kg | 0-99min | 20r/min | 11.5r/min | 0.75kw | 1.1kw | 1365*810*1150mm | 190kg |
| EYH-150 | 150L | 75L | 75kg | 0-99min | 20r/min | 11.5r/min | 1.1kw | 1.1kw | 1650*950*1250mm | 210kg |
| EYH-200 | 200L | 100L | 100kg | 0-99min | 20r/min | 7.5r/min | 1.1kw | 1.1kw | 1850*1000*1340mm | 285kg |
| EYH-300 | 300L | 150L | 150kg | 0-99min | 17r/min | 7.5r/min | 1.1kw | 1.1kw | 1800*1050*1450mm | 340kg |
| EYH-400 | 400L | 200L | 200kg | 0-99min | 15r/min | 7.5r/min | 1.1kw | 1.1kw | 1950*1140*1550mm | 545kg |
| EYH-600 | 600L | 300L | 300kg | 0-99min | 15r/min | 7.5r/min | 1.1kw | 1.5kw | 1990*1300*1650mm | 1150kg |
| EYH-800 | 800L | 400L | 400kg | 0-99min | 12r/min | 7.5r/min | 1.5kw | 1.5kw | 2100*1350*1710mm | 1600kg |
| EYH-1000 | 1000L | 500L | 500kg | 0-99min | 12r/min | 7.5r/min | 1.5kw | 2.2kw | 2500*1500*1850mm | 1700kg |
| EYH-1500 | 1500L | 750L | 750kg | 0-99min | 10r/min | 7.5r/min | 3kw | 4kw | 2630*1670*2050mm | 2000kg |
| EYH-2000 | 2000L | 1000L | 1000kg | 0-99min | 8r/min | 5r/min | 4kw | 4kw | 2840*1780*2170mm | 2600kg |
| EYH-3000 | 3000L | 1500L | 1500kg | 0-99min | 6r/min | 5r/min | 5.5kw | 5.5kw | 3200*2100*2550mm | 3500kg |
| EYH-4000 | 4000L | 2000L | 2000kg | 0-99min | 5r/min | 3.7r/min | 7.5kw | 11kw | 3670*2560*2980mm | 4100kg |
| EYH-6000 | 6000L | 3000L | 3000kg | 0-99min | 5r/min | 3.7r/min | 7.5kw | 11kw | 4500*3900*3500mm | 6100kg |
| EYH-8000 | 8000L | 4000L | 4000kg | 0-99min | 4r/min | 3.7r/min | 11kw | 15kw | 5000*3300*4000mm | 7900kg |
| EYH-10000 | 10000L | 5000L | 5000kg | 0-99min | 3r/min | 3.7r/min | 11kw | 18.5kw | 5300*3800*4400mm | 9500kg |
Machine Show
