Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > CW Series Stirring Type Fertilizer and Animal Feed Mixing Machine

CW Series Stirring Type Fertilizer and Animal Feed Mixing Machine

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Mixer Type:

Agitator

Product Type:

Other, Chemical. pharmaceutical, foodstuff

Contact Supplier Request Quote Chat Now

Huizhou Pingfang Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port China(Mainland)

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Mixer Type Agitator

Product Type Other, Chemical. pharmaceutical, foodstuff

Application Powder

Additional Capabilities Other, Mixing

Place of Origin Jiangsu, China

Brand Name PF

Model Number CW Series

Max. Loading Capacity 3000L

Voltage 220V/380V

Power(W) 1.1-17.5kw

Dimension(L*W*H) 1500*450*1200mm

Certification GMP

Warranty 1year

After-sales Service Provided Engineers available to service machinery overseas

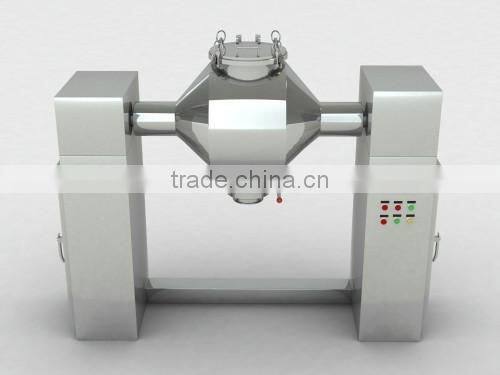

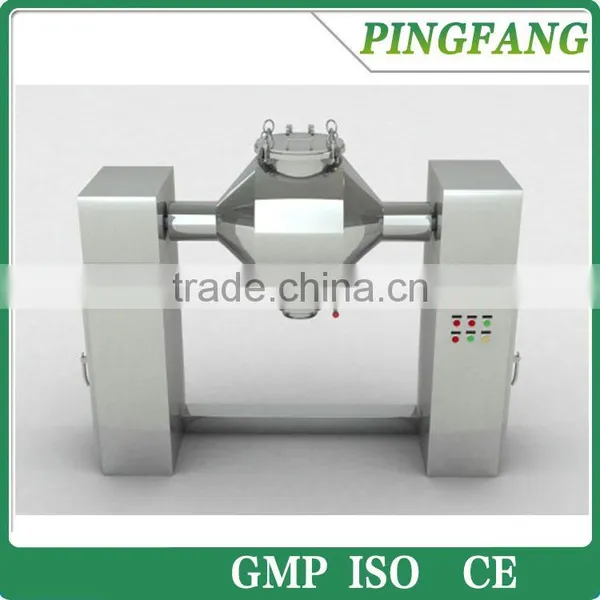

CW series Stirring Type Fertilizer and Animal Feed Mixing Machine

Product Description

Main Application

Our company develops CW series stirring mixer under absorption of foreign new technology, based on W sereis double cone mixer, this machine adds stirring unit, which can be used for material mixing in such industries as pharmacy, foodstuff, chemical industry and feed stuff etc..

Working principle

This machine can rapidly mix such materials as easy clot and with certain water content, having high mixing speed and good mixing effect. The mixing uniformity rate can reach over 95%, Inner of this machine is of new type sealing structure, during mixing, it is free of pollution, with simple structure and convenient operation and maintenance.

Technical parameters

Model	Barrel volume	Max loading volume	Max loading weigh	Mixing time	Mixing motor	Stirring motor	Mixing rotary speed	Stirring rotary speed	Overall dimension
CW-50	50L	25L	25kg	0-99min	1.1kw	0.75kw	20r/min	60r/min	15004501200mm
CW-100	100L	50L	50kg	0-99min	1.5kw	1.1kw	20r/min	60r/min	15505501350mm
CW-200	200L	100L	100kg	0-99min	2.2kw	1.1kw	20r/min	60r/min	18007001500mm
CW-300	300L	150L	150kg	0-99min	2.2kw	1.1kw	20r/min	60r/min	21007601760mm
CW-500	500L	250L	250kg	0-99min	3kw	2.2kw	20r/min	60r/min	23209501920mm
CW-1000	1000L	500L	500kg	0-99min	5.5kw	2.2kw	10r/min	40r/min	245010502500mm
CW-1500	1500L	750L	750kg	0-99min	7.5kw	4kw	10r/min	40r/min	290013002700mm
CW-2000	2000L	1000L	1000kg	0-99min	7.5kw	4kw	8r/min	30r/min	300014003100mm
CW-2500	2500L	1250L	1250kg	0-99min	11kw	5.5kw	6r/min	20r/min	360014003200mm
CW-3000	3000L	1500L	1500kg	0-99min	11kw	5.5kw	6r/min	20r/min	400015003500mm
CW-4000	4000L	2000L	2000kg	0-99min	15kw	5.5kw	6r/min	20r/min	480013003800mm
CW-5000	5000L	2500L	2500kg	0-99min	15kw	7.5kw	5r/min	20r/min	540013004000mm
CW-6000	6000L	3000L	3000kg	0-99min	17.5kw	7.5kw	5r/min	20r/min	565013004380mm
