Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > Model CH-V Series High Efficiency V Type Dry Powder Mixer

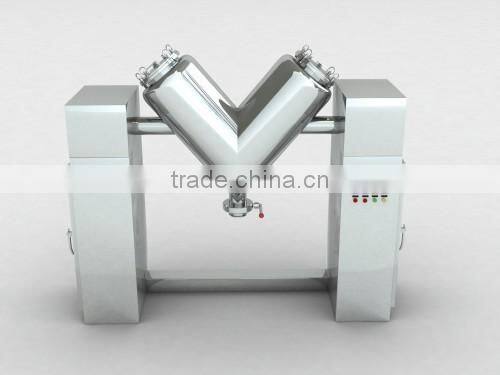

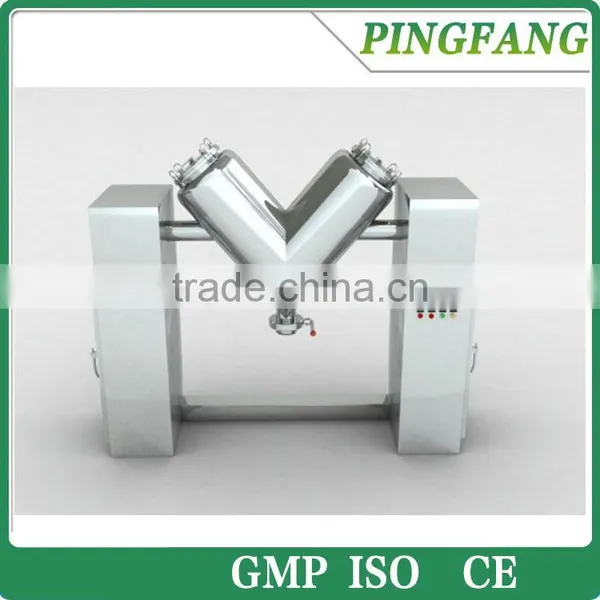

Model CH-V Series High Efficiency V Type Dry Powder Mixer

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Mixer Type:

Other, V type

Product Type:

Other, Chemical. pharmaceutical, foodstuff

Contact Supplier Request Quote Chat Now

Huizhou Pingfang Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port China(Mainland)

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Mixer Type Other, V type

Product Type Other, Chemical. pharmaceutical, foodstuff

Application Powder

Additional Capabilities Other, Mixing

Place of Origin Jiangsu, China

Brand Name PF

Model Number CH-V Series

Max. Loading Capacity 6000L

Voltage 220V/380V

Power(W) 0.75-18.5kw

Dimension(L*W*H) 1250*450*1060mm

Certification GMP

Warranty 1year

After-sales Service Provided Engineers available to service machinery overseas

Model CH-V Series High Efficiency V Type Dry Powder Mixer

Product Description

Main Application

This machine is used for mixing of dry granulate material in pharmaceutical, food-stuff, chemical and other industries.
Working principle

Featuring unique structure, high mixing efficience and without dead angle, the mixing barrel is made of stainless steel with polished internal and external walls. And this machine has beautiful appearance, uniform mixing and wide application.

Technical parameters

Model	Model of auxliary vacuum pump	Barrel volume	Max loading volume	Max loading weigh	Mixing time	Motor power	Barrel speed	Overall dimension	Weight
CH-50V	W2	50L	20L	20kg	0-99min	0.75kw	20r/min	12504501060mm	160kg
CH-100V	W2	100L	40L	40kg	0-99min	1.1kw	15r/min	16205001480mm	220kg
CH-200V	W2	200L	80L	80kg	0-99min	1.1kw	15r/min	18006001850mm	280kg
CH-300V	W2	300L	120L	120kg	0-99min	1.1kw	12r/min	19006501850mm	320kg
CH-500V	W2	500L	200L	200kg	0-99min	2.2kw	12r/min	25008002050mm	550kg
CH-1000V	W3	1000L	400L	400kg	0-99min	4kw	10r/min	285010502050mm	950kg
CH-1500V	W3	1500L	680L	680kg	0-99min	5.5kw	10r/min	340011003200mm	1200kg
CH-2500V	W3	2500L	1200L	1200kg	0-99min	11kw	8r/min	382011003200mm	2040kg
CH-4000V	W4	4000L	1800L	1800kg	0-99min	15kw	6r/min	460013003500mm	2800kg
CH-6000V	W4	6000L	2500L	2500kg	0-99min	18.5kw	5r/min	550013004380mm	3200kg
