Home > Manufacturing & Processing Machinery > Mixing Equipment > Mixing Tank > Model CH-VI Forced-Type Electric Chemical Mixing Agitator

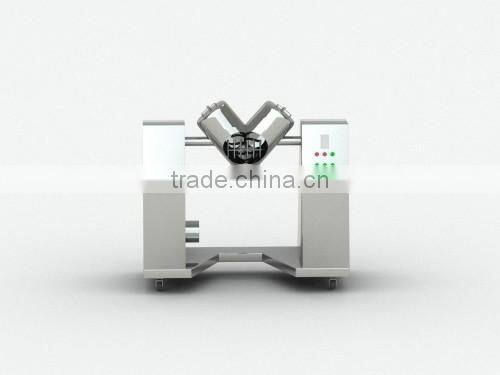

Model CH-VI Forced-Type Electric Chemical Mixing Agitator
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Other, V type
Product Type:
Other, Chemical. pharmaceutical, foodstuff
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Model CH-V Series High Efficiency V Type Dry Powder MixerNegotiableMOQ: 1 Unit -
CW Series Stirring Type Fertilizer and Animal Feed Mixing MachineNegotiableMOQ: 1 Unit
-
Model W Series Double Taper-shaped Pharmaceutical, Food and Powder Mixer MachineNegotiableMOQ: 1 Unit
-
DLH Series Stainless Steel Cone Blender for Cosmetic/ MakeupNegotiableMOQ: 1 Unit
-
Factory Supply WLDH Horizontal Ribbon Blender Machine Price for SaleNegotiableMOQ: 1 Unit
Condition
New
Mixer Type
Other, V type
Product Type
Other, Chemical. pharmaceutical, foodstuff
Application
Powder
Additional Capabilities
Other, Mixing
Place of Origin
Jiangsu, China
Brand Name
PF
Model Number
CH-VI Series
Max. Loading Capacity
2500L
Voltage
220V/380V
Power(W)
1.1-18.5kw
Dimension(L*W*H)
2100*650*1850mm
Certification
GMP
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas
Model CH-VI Forced-Type Electric Chemical Mixing Agitator
Product Description
Main Application
Based on importing, absorbing and digesting the new technology of foreign countries, our company developed the VI type forced mixer used for pharmaceutical, foodstuff and chemical trades etc..
Working principle
Features:This machine can mix coagula of relatively fine powder consisting of two kinds of materials or material with certain amount of moisture content.
Technical parameters
| Model | Barrel volume | Max loading volume | Max loading weigh | Mixing time | Motor power | Barrel speed | Agitation speed | Overall dimension | Weight |
|---|---|---|---|---|---|---|---|---|---|
| CH-300VI | 300L | 120L | 120kg | 0-99min | 1.1*2.2kw | 12r/min | 500r/min | 2100*650*1850mm | 450kg |
| CH-500VI | 500L | 200L | 200kg | 0-99min | 3*2.2kw | 12r/min | 500r/min | 2700*800*2050mm | 480kg |
| CH-1000VI | 1000L | 400L | 400kg | 0-99min | 5.5*2.2kw | 10r/min | 500r/min | 3000*1050*2450mm | 950kg |
| CH-1500VI | 1500L | 600L | 600kg | 0-99min | 7.5*3kw | 10r/min | 500r/min | 3600*1100*3100mm | 1020kg |
| CH-2000VI | 2000L | 850L | 850kg | 0-99min | 7.5*4kw | 10r/min | 350r/min | 4215*1280*3100mm | 2000kg |
| CH-2500VI | 2500L | 1200L | 1200kg | 0-99min | 11*4kw | 8r/min | 350r/min | 4260*1280*3200mm | 2040kg |
| CH-3000VI | 3000L | 1500L | 1500kg | 0-99min | 11*5.5kw | 8r/min | 350r/min | 4400*1300*3300mm | 2500kg |
| CH-4000VI | 4000L | 1800L | 1800kg | 0-99min | 15*5.5kw | 6r/min | 300r/min | 4800*1080*4200mm | 3000kg |
| CH-5000VI | 5000L | 2200L | 2200kg | 0-99min | 15*7.5kw | 5r/min | 300r/min | 5656*1300*4380mm | 3500kg |
| CH-6000VI | 6000L | 2500L | 2500kg | 0-99min | 18.5*7.5kw | 5r/min | 300r/min | 5650*1300*4380mm | 3800kg |

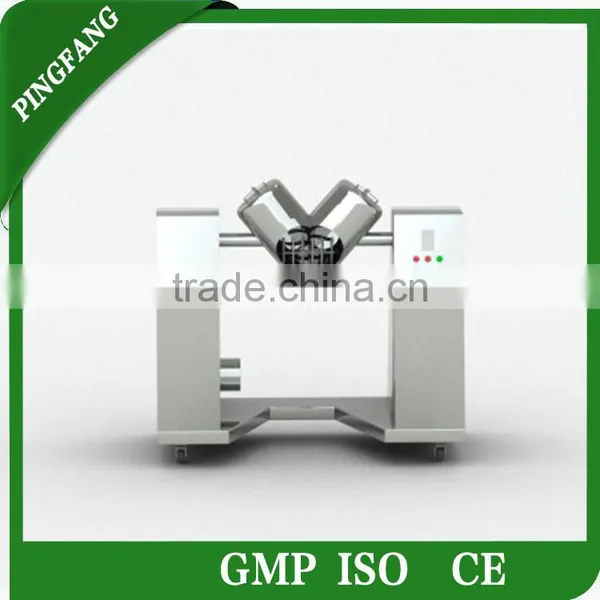

Machine Show
