HOT SALE Factory Supply QS-100 Lab Scale Airflow Small Crusher
- 100 Unit / Units per Month
- Shanghai Port China(Mainland)
- T/T Credit Card PayPal
Product Details
Condition: | New | Type: | Crusher | Product Type: | Other, foodstuff, chemical, pharmaceutical |
Place of Origin: | Jiangsu, China | Brand Name: | PF | Model Number: | QS-100 Airflow Crusher |
Voltage: | 380V | Power(W): | 13-15kw | Dimension(L*W*H): | 1320*620*1600mm |
Weight: | 140kg, 140kg | Certification: | GMP | Warranty: | 1 Year, one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

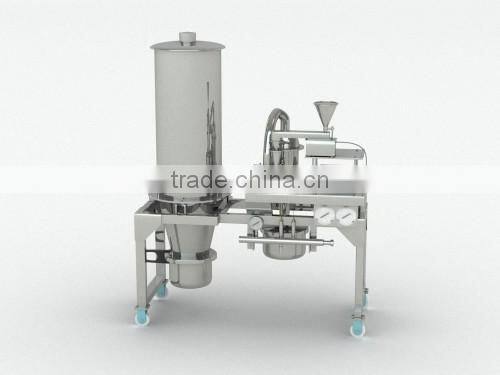

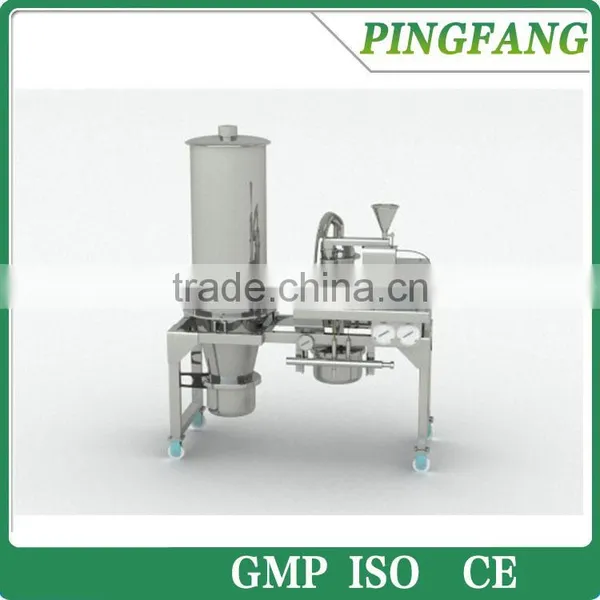

HOT SALE Factory Supply QS-100 Lab Scale Airflow Small Crusher
Main Application
This machine is applied for pharmaceutical, chemical, foodstuff, minerals, pesticides, paint, fuel, new ceramic, magnetic and other brittle material ultra-fine crushing. Especially for small businesses experimental quantity and variety production.
Working principle
This machine is used for compressing gases. through feed sprayer, made powder materials (near 60 mesh) which fall from automatic feeder come into mill evenly and continuously. Meanwhile, by the pulverizing nozzles at the periphery of the pulverizing room, compressed gas from high-speed air flow, then spray into the pulverizing room , make powder particles impact and rub each other, this attain pulverization goal, After pulverized, the greater pare of the ultra-fine particles are collected under the cyclone separator, part of further fine particles are collected into filter collector and gases discharge through filter. This machine is simple structure,small volume,easy cleaning.
Model | Grinding press | Feed pressure | Air volume | Handing capacity | Crushing Fineness | Motor power of air comperssor | overall dimension | weight |
---|---|---|---|---|---|---|---|---|
QS-100 | 0.6-0.9Mpa | 0.6-0.9Mpa | 1.1-1.55m³/min | 2-10kg/h | 300-2000mesh | 13-15kw | 1320*620*1600mm | 140kg |
