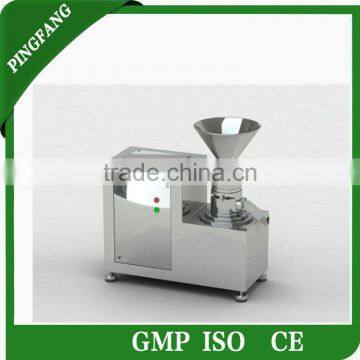

New Design JM Series Two-stage Colloid Mill, Animal Bone Crusher Machine
Main Application
This machine is applied for wet material super fine crushing in trades such as pharmaceutical, foodstuff, chemical and others trades, suitable for emulsifying, mixing and crushing all kinds of semi-moist or emulsions materials. Its main technique parameters have reached the international advanced standard.
Working principle
With its flexible and fixed mills with different geometric shapes rotating at high speed making the relative motion, this machine crushes materials by cutting, pulverizing, and high frequency vibrating. There are two stage of pulverizing areas the first one is for fine pulverizing, and the second one is for super-fine pulverizing, the pulverizing fineness can be adjusted by changing the rip between the upper and down mills. It can well reach the required effect of supper-fine pulverizing at once. Featured with compact conformation, steady run, low noise, corrosion resistant, easy clean, convenient maintain etc., it is the most ideal equipment for wet pulverizing in our nation .ced standard.
Description
1. Foodstuff industry:aloe, flower dust wall-broken, pineapple, gingili, ice cream, jam, syrup, soy, bean, grassnut milk, soy milk, dairy produce, malted milk, essence, drinks, emulsified chicken bones, emulsified pigskin and other animal skins.
2. Chemical industry: oil paint, dye, coloring matter, dope, lubrication, lubrication grease, diesel oil, petrol activator, emulsified bitumen, a-dhesive, scour, plastic, detonator, glass steel, emulsified detonator etc..
3. Life chemistry : toothpaste, scour, shampoo, shoeshine, cosmetic, bath extractive, soap, sweet-smelling grease etc..
4. Pharmaceutical industry: syrups, nutrition fluid, Chinese patent medicine, poultice, biology produce, fish liver oil, pollen, queen bee plasma, bacterin, ointments, liquid tonic taken orally, spasmolytic, pancreas and enzyme preparation, emulsion, herd drug etc..
5. Construction industry: dopes including inside and outside walls dope, antisepsis waterproof dope, porcelain dope, colorful dope, pottery and porcelain enamel etc..
6. Other industry: plastic industry, weave industry, paper making industry, biology chemical, environmental protection and economization on energy, coal floatation, universities, scientific research institutes etc..
| Model | JM-50 | JM-100 | JM-150 | JM-200 | JM-250 | JM-300 | JM-350 | JM-450 |
|---|---|---|---|---|---|---|---|---|
| emulsification fineness single loop or multi cycle | 2-50μm | 2-50μm | 2-50μm | 2-50μm | 2-50μm | 2-50μm | 2-50μm | 2-50μm |
| change range | 1-0.01mm | 1-0.01mm | 1-0.01mm | 1-0.01mm | 1-0.01mm | 1-0.01mm | 1-0.01mm | 1-0.01mm |
| Production capacity(changing with materials) | 0.01-0.3t/h | 0.5-2t/h | 0.8-5t/h | 2—7t/h | 4—15t/h | 6—20t/h | 8—30t/h | 10—40t/h |
| Motor Power | 1.5kw | 5.5kw | 11kw | 18.5kw | 37kw | 55kw | 75kw | 110kw |
| Motor Rotating speed | 4500r/min | 4500r/min | 4500r/min | 4500r/min | 4500r/min | 4000r/min | 4000r/min | 3500r/min |
| grinding disc dia | 50mm | 100mm | 150mm | 200mm | 250mm | 300mm | 350mm | 450mm |
| discharge gate dia | 15mm | 32mm | 40mm | 65mm | 75mm | 85mm | 85mm | 90mm |
| Feed inlet dia | 32mm | 50mm | 80mm | 120mm | 140mm | 159mm | 159mm | 168mm |
| Water-cooling tube dia | 1/8″ | 1/4″ | 1/4″ | 1/4″ | 1/4″ | 1/4″ | 1/4″ | 1/4″ |
| overall dimension |
750*400* 810mm |
1060*500* 1080mm |
1100*520* 1250mm |
1200*560* 1420mm |
1500*700* 1600mm |
1800*900* 1800mm |
2100*1100* 2000mm |
2500*1400* 2300mm |
| weight | 100kg | 275kg | 525kg | 650kg | 1300kg | 1600kg | 2200kg | 3000kg |
