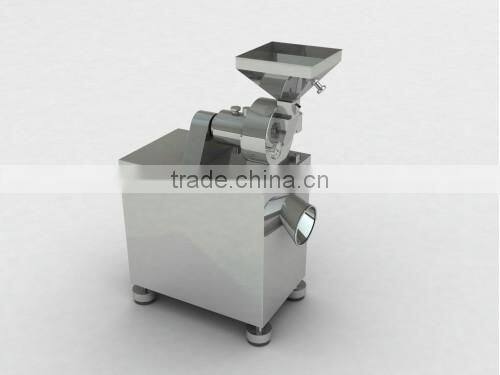

WF Series Stainless Steel Small Fine Crusher for Chemical, Food, and Pharmaceutical
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Crusher
Product Type:
Other, foodstuff, chemical, pharmaceutical
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WF Series Cyclone Pulse Dust Collecting Fine Crushing Machine for Chili and MaizeNegotiableMOQ: 1 Unit -
WF Series Dust Collecting Fine Crusher Set, Salt Crusher MachineNegotiableMOQ: 1 Unit
-
WFJ Series Dust Collecting Fine Crusher Machine, Food Pulverizing MachineNegotiableMOQ: 1 Unit
-
GF Series Dust Absorption Pulverizer Machine for Grain and WheatNegotiableMOQ: 1 Unit
-
YF Series Traditional Chinese Medicine Dust Collecting Pulverizer for Herb and Oily MaterialsNegotiableMOQ: 1 Unit
Condition
New
Type
Crusher
Product Type
Other, foodstuff, chemical, pharmaceutical
Place of Origin
Jiangsu, China
Brand Name
PF
Model Number
WF Series Fine Crusher
Voltage
380V
Power(W)
1.5-37kw
Dimension(L*W*H)
400*500*850mm-1100*1000*2000mm
Weight
90-1200kg, 90-1200kg
Certification
GMP
Warranty
1 Year, One year
After-sales Service Provided
Engineers available to service machinery overseas
WF Series Stainless Steel Small Fine Crusher for Chemical, Food, and Pharmaceutical
Product Description
Main Application
Applied for material crushing in such trades as pharmaceutical, chemical and foodstuff etc.
Working principle
This machine is of hammer type with high speed and applied for crushing of materials with medium hardness and viscosity. The material is fed into the crushing chamber by a hopper and crushed by high speed rotating hammer. The machine whose crushing chamber is easy to assemble and clean, has simple structure. Wholly made of stainless steel, the machine makes the crushed material met the hygienic requirement.
Technical parameters
| Model | Production Capacity | Feeding Size | Crushing Fineness | Spindle Speed | Motor Power | overall dimension | weigh |
|---|---|---|---|---|---|---|---|
| WF-130 IV.VI | 5-30kg/h | ≤2mm | 80-400mesh | 13900r/min | 1.5kw | 400*500*850mm | 90kg |
| WF-180 IV.VI | 30-80kg/h | ≤2mm | 80-400mesh | 10000r/min | 2.38kw | 850*800*1126mm | 200kg |
| WF-250 IV.VI | 50-100kg/h | ≤2mm | 80-400mesh | 6500r/min | 5.5kw | 550*650*1400mm | 280kg |
| WF-350 IV.VI | 80-300kg/h | ≤3mm | 80-400mesh | 5800r/min | 11kw | 600*700*1480mm | 320kg |
| WF-450 IV.VI | 100-500kg/h | ≤3mm | 80-400mesh | 4500r/min | 15kw | 800*900*1550mm | 550kg |
| WF-650 IV.VI | 300-1000kg/h | ≤5mm | 80-400mesh | 3800r/min | 22kw | 900*950*1880mm | 680kg |
| WF-850 IV.VI | 500-2500kg/h | ≤5mm | 80-400mesh | 2500r/min | 37kw | 1100*1000*2000mm | 1200kg |

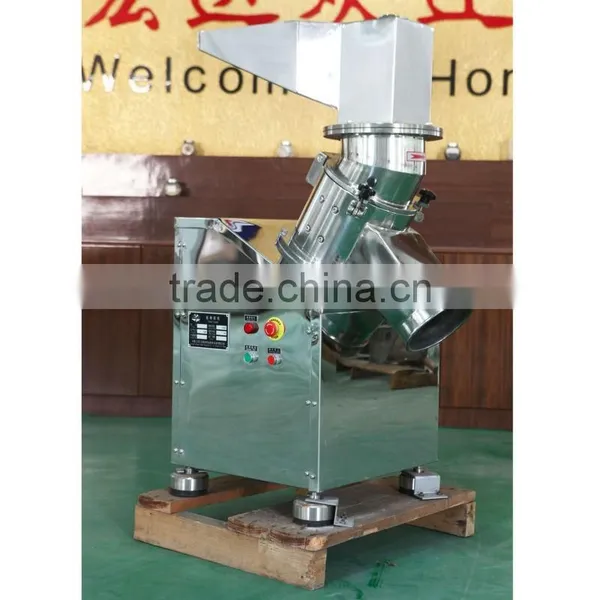

Machine Show
