WF Series Dust Collecting Fine Crusher Set, Salt Crusher Machine

WF Series Dust Collecting Fine Crusher Set, Salt Crusher Machine photo-1
WF Series Dust Collecting Fine Crusher Set, Salt Crusher Machine photo-2
WF Series Dust Collecting Fine Crusher Set, Salt Crusher Machine photo-3
WF Series Dust Collecting Fine Crusher Set, Salt Crusher Machine photo-4
WF Series Dust Collecting Fine Crusher Set, Salt Crusher Machine photo-5
WF Series Dust Collecting Fine Crusher Set, Salt Crusher Machine photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Crusher
Product Type:
Other, foodstuff, chemical, pharmaceutical
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Crusher
Product Type Other, foodstuff, chemical, pharmaceutical
Place of Origin Jiangsu, China
Brand Name PF
Model Number WF Series Fine Crusher Set
Voltage 380V
Power(W) 1.5-kw
Dimension(L*W*H) 850*600*1350mm-1150*550*1350mm
Weight 320-450kg, 320/450kg
Certification GMP
Warranty 1 Year, One year
After-sales Service Provided Engineers available to service machinery overseas

WF Series Dust Collecting Fine Crusher Set, Salt Crusher Machine

Product Description

Main Application

    Applied for such trades as pharmaceutical, chemical and foodstuff ect., This machine is a new generation fine crushing equipment combining crushing and dust collection as a whole.


Working principle

    This machine is a hammer typed crusher with high speed. The material is fed into the crushing chamber through a hopper by a conveyor and crushed by high speed rotating hammer. The crushed material is enters into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by the dust collector through a bag. Designed according to "GMP" standard and wholly made of stainless steel, this machine has no flying dust during production. And can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.

Technical parameters



Model Production Capacity Feeding Size Crushing Fineness Crushing motor Feeding motor Dust collecting motor Fine Crusher Overall dimension Dust Collecting Overall dimension weigh
WF--180B 30-80kg/h ≤1mm 80-400mesh 2.2kw 0.18kw 1.5kw 850x600x1350mm 550*550*1350mm 320kg
WF-320B 100-300kg/h ≤5mm 80-400mesh 11kw 0.18kw 1.5kw 1150x550x1350mm 600*550*1350mm 450kg

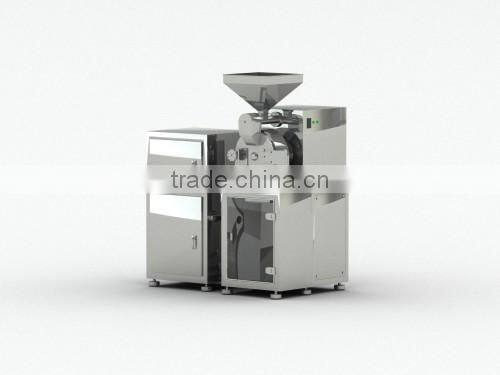

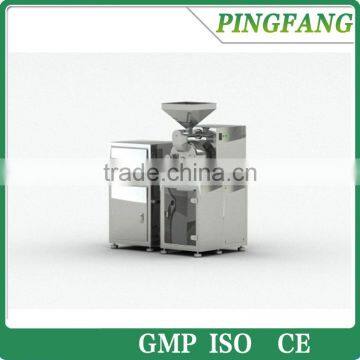

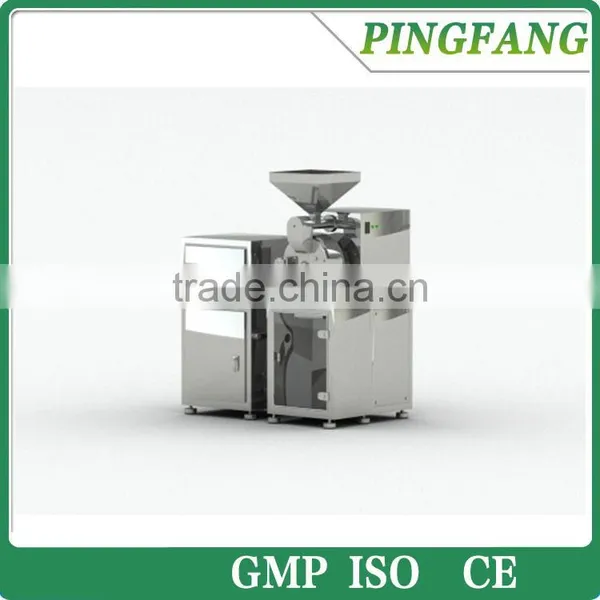

Machine Show

         WF Series Dust Collecting Fine Crusher Set, Salt Crusher Machine

WF Series Dust Collecting Fine Crusher Set, Salt Crusher Machine

Samples

 WF Series Dust Collecting Fine Crusher Set, Salt Crusher MachineWF Series Dust Collecting Fine Crusher Set, Salt Crusher Machine



Packaging& Shipping

 WF Series Dust Collecting Fine Crusher Set, Salt Crusher Machine

FAQ

 WF Series Dust Collecting Fine Crusher Set, Salt Crusher Machine

Company Information

 WF Series Dust Collecting Fine Crusher Set, Salt Crusher Machine

WF Series Dust Collecting Fine Crusher Set, Salt Crusher Machine

WF Series Dust Collecting Fine Crusher Set, Salt Crusher Machine
