WF Series Cyclone Pulse Dust Collecting Fine Crushing Machine for Chili and Maize
Main Application
This machine is applied in such trades as pharmaceutical, chemical, foodstuff, magnetic material, powder etc., It is a new generation crushing equipment combining crushing, dust collecting and continuous discharge into a unit.
Working principle

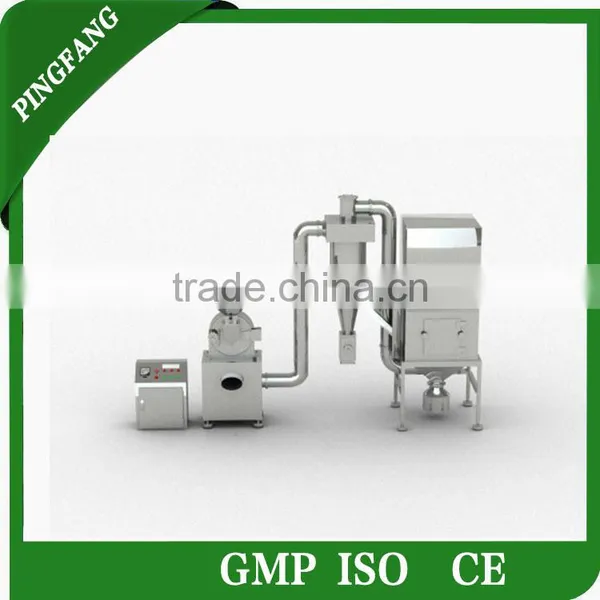

This machine is made up of crusher, cyclone separator, pulse dust-evacuator box and induced fan etc., Material is fed into chamber through the hopper, and crushed by high speed rotating hammers. The crushed material flows into the cyclone separator by the induced fan and rotating centrifugal force, then discharge through gate blower, dust comes into the pulse dust-collecting box, filtrated and recycled by the filter cylinder. The crushing size can be adjusted by the screen. Designed by the standard of GMP the whole machine is made of stainless steel, and there is no flying dust during the process of production.
| Model | Production Capacity | Feeding Size | Crushing Fineness | Crushing motor | Dust collecting motor | Discharge motor | overall dimension | weigh |
|---|---|---|---|---|---|---|---|---|
| WF-250 | 50-100kg/h | ≤5mm | 80-400mesh | 5.5kw | 2.2kw | 0.75kw | 3000*880*2350mm | 580kg |
| WF-350 | 80-300kg/h | ≤5mm | 80-400mesh | 11kw | 3kw | 0.75kw | 3550*880*2350mm | 800kg |
| WF-450 | 100-500kg/h | ≤5mm | 80-400mesh | 15kw | 4kw | 0.75kw | 4200*880*2350mm | 1200kg |
| WF-650 | 300-1000kg/h | ≤5mm | 80-400mesh | 22kw | 5.5kw | 1.5kw | 6560*1100*2480mm | 2000kg |
| WF-850 | 500-2500kg/h | ≤5mm | 80-400mesh | 37kw | 11kw | 2.2kw | 7800*1100*2480mm | 3000kg |
