B Series Cyclone-separating Pulse Dust Collecting Pulverizing Machine for Sugar and Spice
Main Application
This machine is applied in such trades as pharmaceutical, chemical, foodstuff, magnetic material, powder etc., It is a new generation crushing equipment combining crushing, dust-collecting and continuous-discharge into a unit.
Working principle

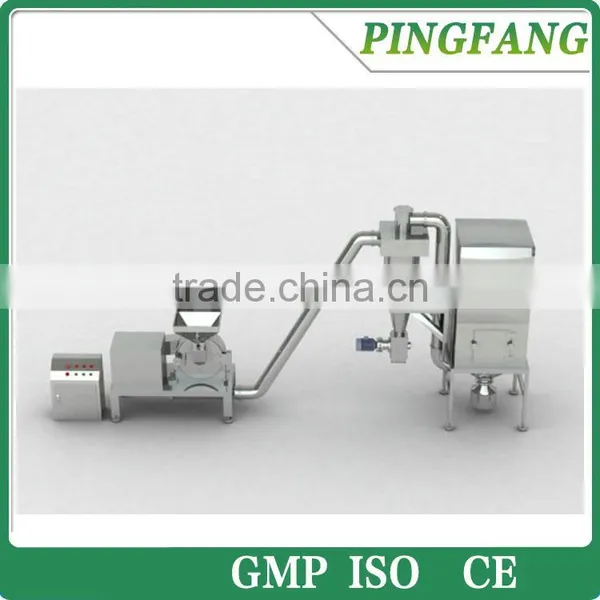

This machine is made up of crusher, cyclone separator, pulse dust collecting box and blower fan etc.. By means of relative motion between movable and fixed fluted discs, material is crushed by impact and friction of the teeth and impact among the materials. The crushed material flows into the cyclone separator by the gravitation of blower and rotating centrifugal force, then discharges through gate blower, dust come into the pulse dust collecting box, filtrated and recycled by the filter cylinder. The crushing size can be adjusted by the screen. Designed by the standard of GMP the whole machine is made of stainless steel, and there is no flying dust during the process of production.
| Model | Production Capacity | Feeding Size | Crushing Fineness | Spindle Speed | Crushing motor | Dust collecting motor | Discharge Motor | overall dimension | weight |
|---|---|---|---|---|---|---|---|---|---|
| 20BIV,V,VI | 60-150kg/h | 6mm | 20-120mesh | 4500r/min | 4kw | 2.2kw | 0.75kw | 3000*850*2300mm | 580kg |
| 30BIV,V,VI | 100-400kg/h | 6mm | 20-120mesh | 3800r/min | 5.5kw | 3kw | 0.75kw | 3200*850*2380mm | 880kg |
| 40BIV,V,VI | 160-1000kg/h | 10mm | 20-120mesh | 3400r/min | 11kw | 4kw | 0.75kw | 3500*900*2380mm | 1200kg |
| 60BIV,V,VI | 500-2000kg/h | 12mm | 20-120mesh | 2800r/min | 18.5kw | 7.5kw | 1.1kw | 6600*1100*2380mm | 2000kg |
| 80BIV,V,VI | 1000-5000kg/h | 15mm | 20-120mesh | 2200r/min | 37kw | 11kw | 1.5kw | 7800*1100*2500mm | 3000kg |
| 100BIV.V.VI | 2000-8000kg/h | 15mm | 20-120mesh | 1500r/min | 55kw | 18.5kw | 2.2kw | 9980*1280*2800mm | 6000kg |
(P.S.:IV-mild steel,V-stainless steel,VI-stainles steel with water cooler)
