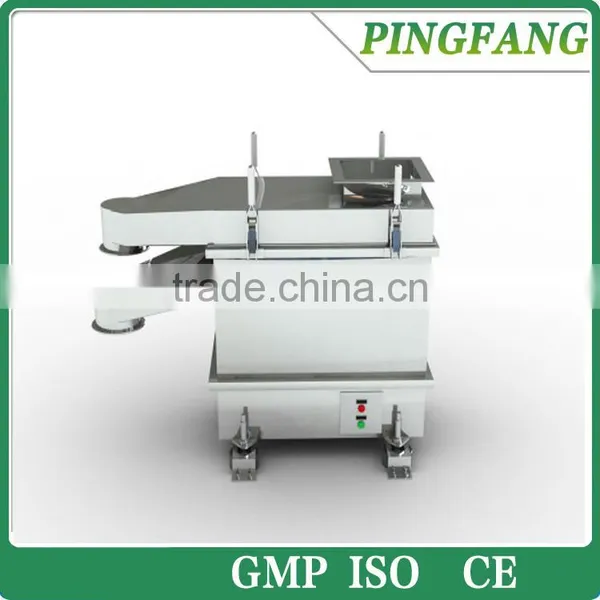

Top Selling ZS Series Vibrating Rectangular Screening Machine, sand screening machine
1. Application:
Designed and modified by importing the advanced foreign technology and in combination with GMP standard, this machine is widely used for grading and screening of industrial raw materials in such trades as pharmaceutical, chemical, foodstuff, metallurgy and electronics etc.
2. Working principle:
This machine is comprised of screen box, Vibration source and damper, vibrating frame and screen box are connected with 4-12 group soft rubber dampers fixed up and down, and the centrifugal force is generated therein, the floating amplitude is controlled by the damper, by which, material realizes a process of throw and lamination filtration downward, and therefore reaching the optimized grading and screening effect.
3. Technical Parameters:
| Model | Production capacity | Meshes screened | Motor power | Vibration frequency | Exciting force | Overall dimension | Weight |
|---|---|---|---|---|---|---|---|
| ZS-0.3 | 50-300kg/h | 3-150mesh | 0.2kw | 1400r/min | 0-2.5kw | 1110*500*900mm | 150kg |
| ZS-0.5 | 100-450kg/h | 3-150mesh | 0.2kw | 1400r/min | 0-2.5kw | 1250*660*900mm | 250kg |
| ZS-0.7 | 200-650kg/h | 3-150mesh | 0.2×2kw | 1400r/min | 0-2.5kw | 1780*650*960mm | 280kg |
| ZS-0.8 | 300-750kg/h | 3-150mesh | 0.3kw | 1400r/min | 0-2.5kw | 1500*800*900mm | 320kg |
| ZS-1.2 | 500-1100kg/h | 3-150mesh | 0.5kw | 1400r/min | 0-2.5kw | 1980*1050*1450mm | 400kg |
| ZS-1.8 | 800-1600kg/h | 3-150mesh | 0.75kw | 1400r/min | 0-2.5kw | 2400*1200*1500mm | 600kg |
| ZS-2.2 | 1000-2500kg/h | 3-150mesh | 0.75kw | 1400r/min | 0-2.5kw | 2800*1200*1600mm | 800kg |
4. Factory shows:
5. Other screening machines:
6. The sreening machine are applied in:
7. Our customers:
8. Certificates:
