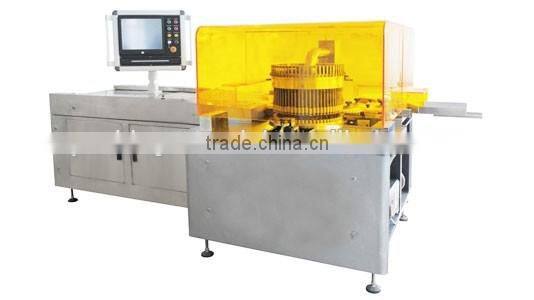

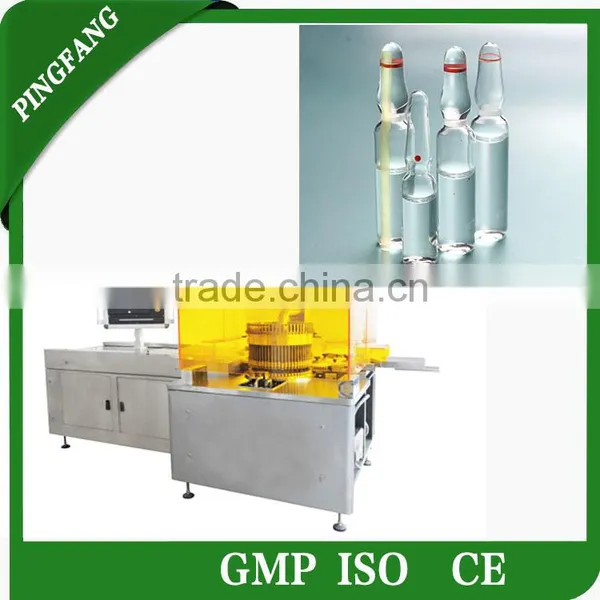

JAYZ Series Automatic Injection Ampoule Impurity Inspection Machine
Main application
Ampoule Injection Liquid Foreign Matter Automatic Checking Machine is a fully automatic foreign matter checking device to check the quality of small amount ampoule preparation product in pharmaceutical industry. It can check glass scrap, insoluble micro grain, hair, fiber and other visible foreign matters, and can check the breakage of the bottle itself and the sealing quality of the bottle opening as well, and can automatically pick out the unqualified product.
Comparing with the manual checking ,the automatic lighting checking greatly raises the checking speed and quality, it avoids the unstable of manual checking, and checks 100% of the products, The checking method has the same level of the discrimination standard to thoroughly prevent the unqualified products from entering the market.
Performance characteristics
1. The human interface:
Control interface reaction for the current operation of real-time situation, it is easy to operate and production control.
2. Customized visual inspection system
The high-speed industrial CMOS camera, match with special highlight LED lighting system, according to different color solution and pharmaceutical companies bottle customized visual inspection system.
3. Integrated design
Equipment integrated design, compact structure, convenient in maintenance and replacement parts specifications. Mechanical drive portfolio in a location in the cabinet, with stable and reliable guarantee for a long time. .
4. The plug vacuum sorting bottles of institutions
Using the American MAC import solenoid valve control and vacuum with Japan SMC vacuum filter, unique design can effectively remove that could clog the vacuum mouth the broken glass.
Applicable bottles |
Ampoule(Penicilin Bottle,oral liquid bottle) |
Bottle size |
Max.diameter ≤18.4mm |
Checking speed |
300 Bottle /min |
Bottle rotaition speed |
≤4000rpm |
Noise |
5.5(Power supply:380V 50HZ) |
General power |
0% |
Checking leakage rate |
≤1% |
Checking error rat |
≤0.03mm |
Overall Dimension(L×W×H) |
(2850×1300×1600)mm |
Weight |
2300kg |
