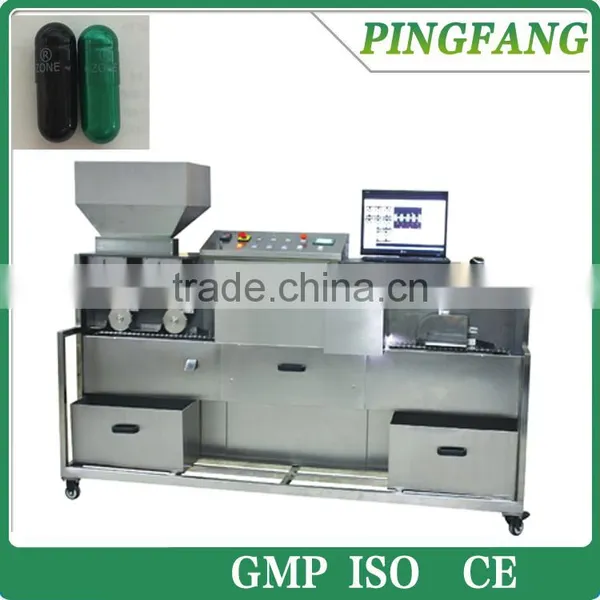

High Quality Automatic Filled Capsule Inspection Machine for capsule size 00,0,1,2,3,4,5
I. Features:
1. Powerful image and data processing software ensure high accuracy inspection. It can detect hair, bubble and dirt with length above 80 microns. It can also detect the defects of cap and body edges, body length, cap length and total length.
2. The intelligent off-line software allows the machine to inspect and sort capsules based on customer-set criteria, which is more compatible with the quality contro lrequirements.
3. Advanced high-penetration light source combined with high performance CCD cameras can ensure that tiny defects in deep color capsules and the capsules with too much titanium oxide can be clearly inspected and also transparent capsule can be inspected.

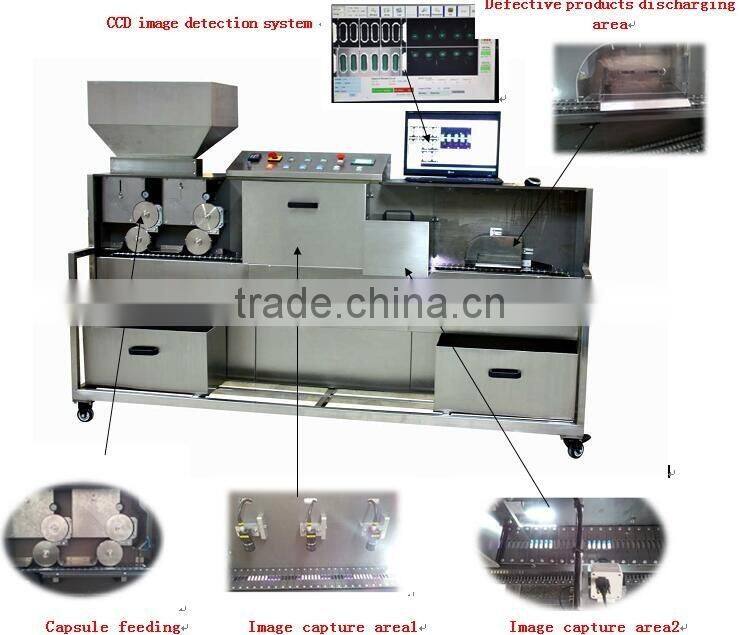

4. The inspection machine adopts several CCD cameras and multi-quadrant overlap inspection method by which four images of each capsule are taken simultaneously. The missing rate is very low and fully up to the requirements of the production process.
5. The operation of image software is easy. Parameters can be stored in memory for quick and easy retrieval.
II.Technical Parameters:
| Model | CI4 (A; B; C) | CI5 (A; B; C) |
| CCD cameras | 2 black & white; 2 colorful | 3 black & white; 2 colorful |
| To inspect domes | Can | Can |
| Capacity | 90,000 pcs/hr | 90,000 pcs/hr |
| Dimensions | W2000×D700×H1600mm | W2300×D700×H1600mm |
| Weight | 300KG | 350KG |
| Voltage & power | 1φ220V 0.35KW | |
|
Type A: can inspect various opaque gelatin capsules.
| ||
| Type B: can inspect various opaque gelatin capsules, transparent gelatin capsules and vegetable capsules. | ||
|
Type C: can inspect various opaque gelatin capsules, transparent gelatin capsules, vegetable capsules and translucent gelatin capsules (transparent cap and translucent body or vice versa). | ||
Packaging Details: Export-standard and sea-worthy wooden case as following photos.
Delivery time: 15-45 working days normally
Free service: normal spare parts and quick worn parts will be delivered together with the main machine.
Huizhou Pingfang pharmaceutical machinery co. ltd. is a professional manufacturer and supplier for pharmaceutical machinery, pharmaceutical packing material company, who is standing firmly with a good reputation in the industry of China pharmaceutical machinery.
Our company focus on fabricating efficient and technically sound pharmaceutical machines that meets or exceed our customer’ expectations. Our vast product selection caters to numerous industries, worldwide. We are specializing in machinery including, pulverizes, mix, Granulate, tablet press machine, coating machine, soft capsules filling machine, hard capsules filling machine, ampoule filling and sealing machine, oral liquid filling production line, syrup machine, eyes drop filling machine, lyophilized powder production line, injectable vial powder filling production line, Ointment machine, Suppository machine, spray filling machine, pharmaceutical testing and experiment instrument, traditional Chinese medicine machine and packing materials. The packing materials including pharmaceutical PVC, PTP aluminum film, hard aluminum, vial, stopper, aluminum stopper, ampoule, glass, capsule, packing strap of suppository physic. Meanwhile, we can undertake turn key projects for conceptual design, process design, water treatment solutions, clean-room design, etc.
Because we stick to offer the high quality and competitive price to our customer, our machines have been exported many countries of world such as Singapore, Vietnam, Malaysia, Thailand , Bangladesh, USA, Russia, Pakistan, Nigeria, Chile, Germany, Denmark, Bolivia, Peru, Mexico, South Africa, Iran, Argentina, Canada, Australia, India, Kazakhstan, Turkey, Egypt, Brazil, Syria, Yemen and more. In order to offer the best quality, we manufacture our products in accordance with international standards, such as FDA, GMP, CGMP. We also be approved by CE, ISO certificate, too.
Our Customers:
Pre-sale:
According to customer’s needs guide customers t configure the most appropriate device models. According to customer’s special requirements and working site provide list of equipment, equipment layout.
Dur-sale:
Inspect the product seriously before out of the factory. Invite customer for commissioning in the spot and raising the objection. Organize to delivery according to the contract.
After-sale:
Company can send technical data for guiding to install and debug the machine. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price. We also can provide 24-hour telephone or message service.
