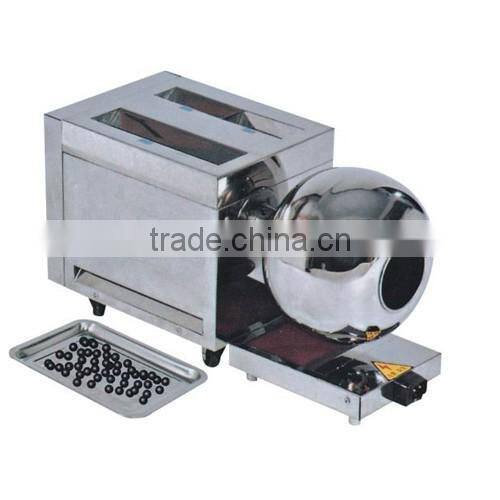

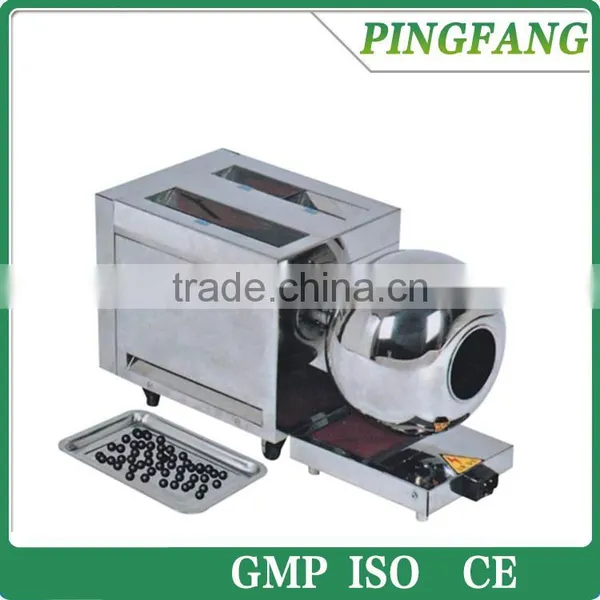

WZ-3 Mini Pill Making Machine for Honey Pill and Water-honeyed Pill
Description
The equipment overcame the defects of traditional pill-making equipment. It has the features of small bulk, light weight, low energy wastage, high efficiency, fine effect, low noise, non-pollution, simple operation, safety and high realibility. The successful development of the product is the great innovation of Chinese Medicine pill-making industry. It will bring the great social benefits and remarkable economic benefits.
Structure
This machine is made up of flake pressing axis, strip-out axis, pill making axis, polishing canister, dried board, motor, and electrical equipment etc.
Working Principle
Put the mixture as the agglomerate into the flake pressing slot to press, then take out of the flaking medicine to put into the strip slot, and then thwart put the medicine strip into the pill making slot to make into pills.
Send the pilling into the polishing canister to polish and dry.
Application | honey pill, concentrated pill, water-honeyed pill and watered pill, other pellet-shaped food and etc. |
Pill dimension | φ4mm, φ5mm, φ6mm, φ7mm, φ8mm,10mm,12mm (one machine only can make one size of pill) |
Capacity | 7 kg/h(base on 5mm honey pill) |
Motor Output | 0.18kw |
Electrical Heating Output | 1kw |
Power Supply | 220V 50Hz |
Rotation Rate | 1400r/min |
Overall Dimension | 650*270*300mm |
Weight | 30kg |
