High Efficiency TQ Series Chinese Medicinal Herb Extracting Pot

High Efficiency TQ Series Chinese Medicinal Herb Extracting Pot photo-1
High Efficiency TQ Series Chinese Medicinal Herb Extracting Pot photo-2
High Efficiency TQ Series Chinese Medicinal Herb Extracting Pot photo-3
High Efficiency TQ Series Chinese Medicinal Herb Extracting Pot photo-4
High Efficiency TQ Series Chinese Medicinal Herb Extracting Pot photo-5
High Efficiency TQ Series Chinese Medicinal Herb Extracting Pot photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
PF Extracting Pot
Model Number:
TQ Series Extracting Pot
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port China(Mainland)
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name PF Extracting Pot
Model Number TQ Series Extracting Pot
Application Liquid
Type Extractor
After-sales Service Provided Engineers available to service machinery overseas

High Efficiency TQ Series Chinese Medicinal Herb Extracting Pot



Product Description

    This product of ours is made according to the state standards (JB20038-2004), generally called as “multifunctional extracting pot”, mainly for the extraction, of effective elements of the Chinese medicinal herbs, also suitable for food and chemical industries. It can be used in the conditions of ordinary or pressed pressure, the finished products may be in the fluid state or essence. If equipped with the facilties we make.

    The evaporated fluid can be condensed and collected; dissolving medium and aromatic oil can be retrieved. When necessary, it can be equipped with vacuum pump for pressure reducing concentration and distillation.

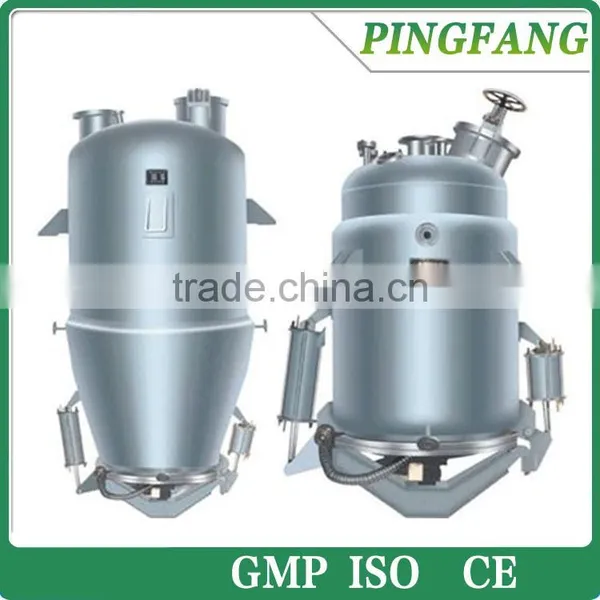

    The extracting pot is composed of pot body, slag drainage door, elevating amtoarcjsuste, there is a piece of net made of stainless steel wire for a better separation of medicine slag and its effective elements.

The auxiliary equipment for the extracting pot include chiller, condenser, oil water separator (for extraction of aromatic oil) and pneumatic control box.



Technical parameters



ItemModel

TQ.W

TQ.Z

TQ.Z

TQ.Z

TQ.Z

TQ.Z

Specificotions

0.5m3

1m3

2m3

3m3

4m3

6m3

Working pressure in tank (MPa)

 Normal pressure

Tank volume (m3)

0.5

1

2

3

4

6

Working temperature in tank ()

100

Clamping apparatus working pressure (MPa)

≤0.15

Cylinder working pressure (MPa)

0.6-0.7

Condenser area(m2)

3

3

4

4

6

6

Chiller area (m2)

1

1.5

Weight (kg)

1000

1460

2000

2800

3700

4500
