Home > Products > Chinese medicine machine > High Efficiency Electric Fixing Double-layered Stainless Steel Cauldron Pot
High Efficiency Electric Fixing Double-layered Stainless Steel Cauldron Pot
- Shanghai Port China(Mainland)
- T/T Credit Card PayPal
You May Like
-
High Quality Tilting Double-layered Cauldron, Steam Jacketed Kettle Price for Sale
-
Factory Supply ZWJ-76 Chinese Herbal Pill Making Machine
-
ZW-120/ZW-40 Standing-style Auto-making Traditional Chinese Medicine Pill Machine
-
ZW-80B And ZW-20B Type Standing-style Automatic Herbal Pill Press Machine
-
WZ-180 Auto-giving Material Style Producing Traditional Chinese Medicine Pill Maker Machine
-
Low Noise High Efficiency SDW-I Type Roller Big Honey Pill Making Machine for Sale
Product Details
| Place of Origin | Zhejiang, China | Brand Name | PF | |
| Model Number | Fixing Double-layered Cauldron | Type | Cooking Equipment | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

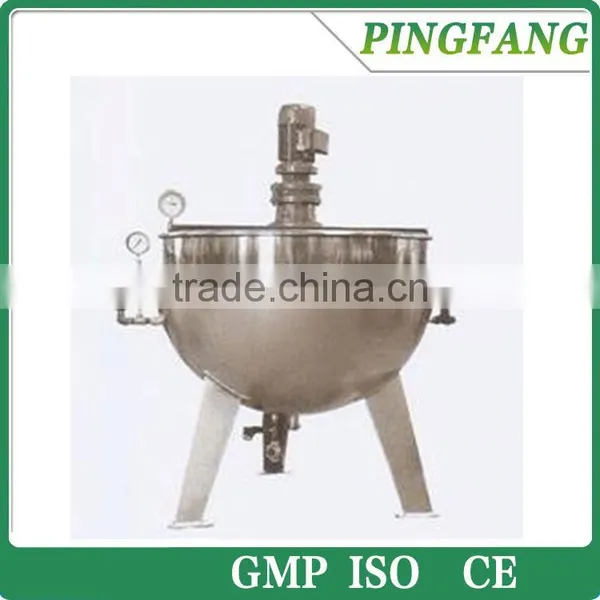

High Efficiency Electric Fixing Double-layered Stainless Steel Cauldron Pot
Usage:
1. Be widely applied in food processing such as candy, medicine, dairy, alcohol, cake, sweetmeat, beverage, can, etc.
2. Can be used to boil soup, cook, stew and porridge in some large restaurants and canteens. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.
Characteristics:
1. Efficient Heating
Steam heating jacketed kettle takes a certain pressure of steam as heat source. It has characteristics such as big heating area, uniform heating, high thermal efficiency, short boiling time, easy control of the heating temperature etc.
2. Safety and Convenience
Steam heating jacketed kettle adopts stainless steel 304 as production material, which is resistant to heat and acid. The machine is equipped with pressure gauge, safety valve or electrical control box. Not only has good-appearance, but also easy to install and operate. It is safe and convenient.
Metric volume(L) | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | |
Caliber (mm) | Φ600 | Φ700 | Φ800 | Φ900 | Φ1000 | Φ1100 | Φ1200 | Φ1300 | Φ1400 | |
Depth of pot(mm) | 400 | 450 | 530 | 630 | 680 | 730 | 780 | 830 | 900 | |
Heating area(m2) | 0.45 | 0.58 | 1.12 | 1.42 | 1.75 | 2 | 2.3 | 3.2 | 3.9 | |
Pipe size | Steam pipe | 3/4” | 1” | 2” | ||||||
Condensate pipe | 3/4” | 1” | ||||||||
Interlayer work pressure | ≤0.09Mpa(can be adapted according to customer requirement) | |||||||||
Mixing speed | 36 r/min(can be adapted according to customer requirement) | |||||||||
Mixing power(Kw) | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 | |
